| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofCharacters | DisplayFormat | CharacterFormat | DisplayType | DisplayMode | CharacterSize | OutlineLxWxH | ViewingArea | Backlight | Voltage-Supply | DotSize | Interface | ControllerType | OperatingTemperature | TextColor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

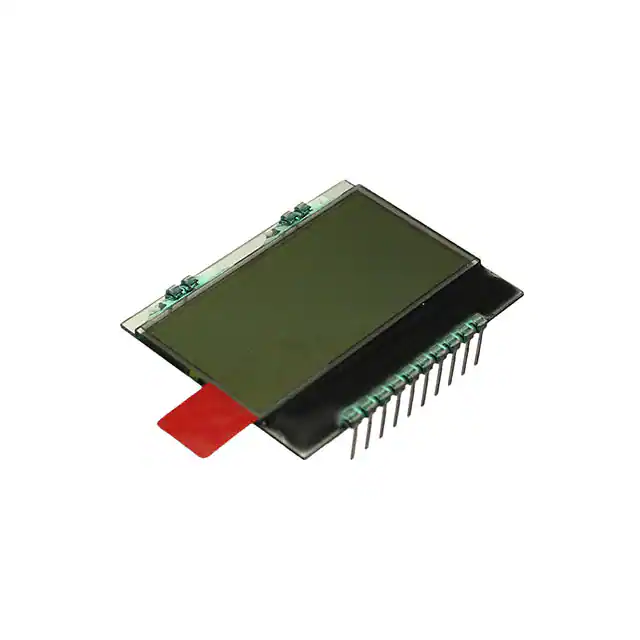

EA DOGS164N-ALCD MOD 64 DIG 16 X 4 REFLECTIVE |
3,621 | 17.16 |
RFQ |
Bag | EA DOG | Active | 64 | 16 x 4 | 5 x 32 Dots | FSTN - Film Super-Twisted Nematic | Reflective | - | 40.00mm x 33.00mm x 2.60mm | 38.00mm L x 19.00mm W | - | 3.3V | 0.32mm W x 0.45mm H | I²C, SPI | - | -20°C ~ 70°C | Black | |
|
EA DIP162-DHNLEDLCD MOD 32DIG 16X2 TRANS YLW/GRN |
2,609 | 27.03 |
RFQ |
Datasheet |
Tray | EA DIP162-D | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 6.68mm H x 2.96mm W | 66.00mm x 26.80mm x 10.80mm | 61.00mm L x 19.00mm W | LED - Yellow/Green | 5V | 0.56mm W x 0.80mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | Gray |
|

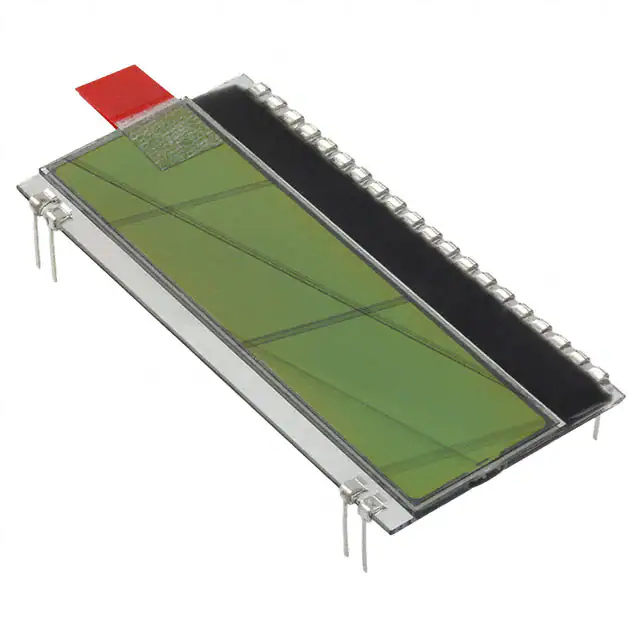

EA DOGM081E-ALCD MOD 8DIG 8 X 1 TRANSFLECTIVE |
2,907 | 15.77 |
RFQ |
Datasheet |
Bag | EA DOG | Active | 8 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 11.97mm H x 4.97mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.97mm W x 1.47mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray |
|

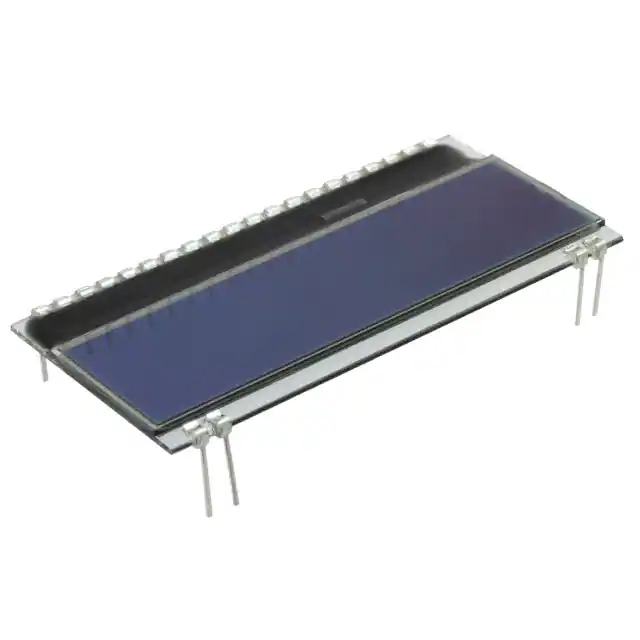

EA DOGM081S-ALCD MOD 8 DIG 8 X 1 TRANSMISSIVE |
3,329 | 15.77 |
RFQ |
Datasheet |
Bag | EA DOG | Active | 8 | 8 x 1 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 11.97mm H x 4.97mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.97mm W x 1.47mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White |
|

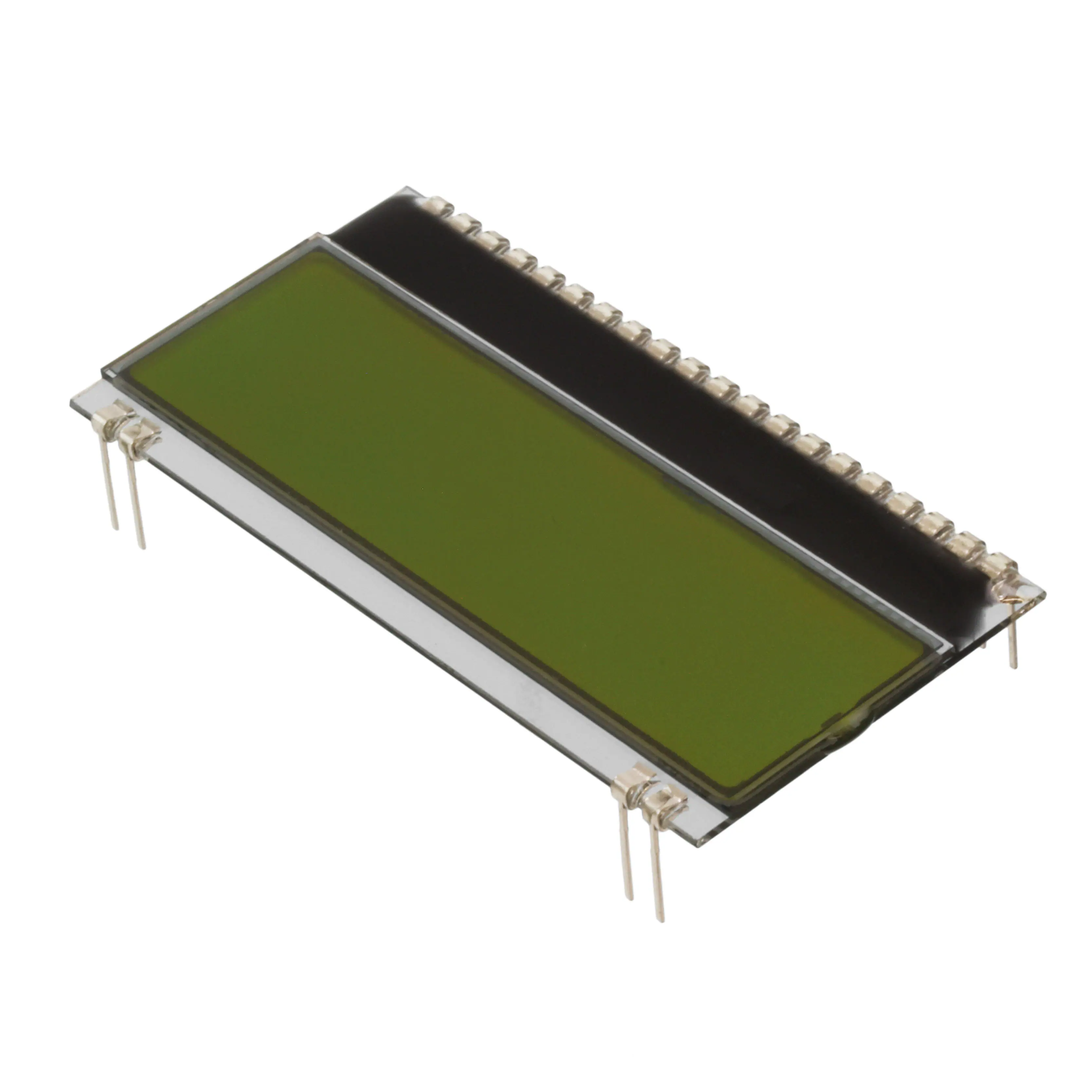

EA DOGM081L-ALCD MOD 8 DIG 8 X 1 REFLECTIVE |
3,512 | 15.77 |
RFQ |
Datasheet |
Tray | EA DOG | Active | 8 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 11.97mm H x 4.97mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.97mm W x 1.47mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray |
|

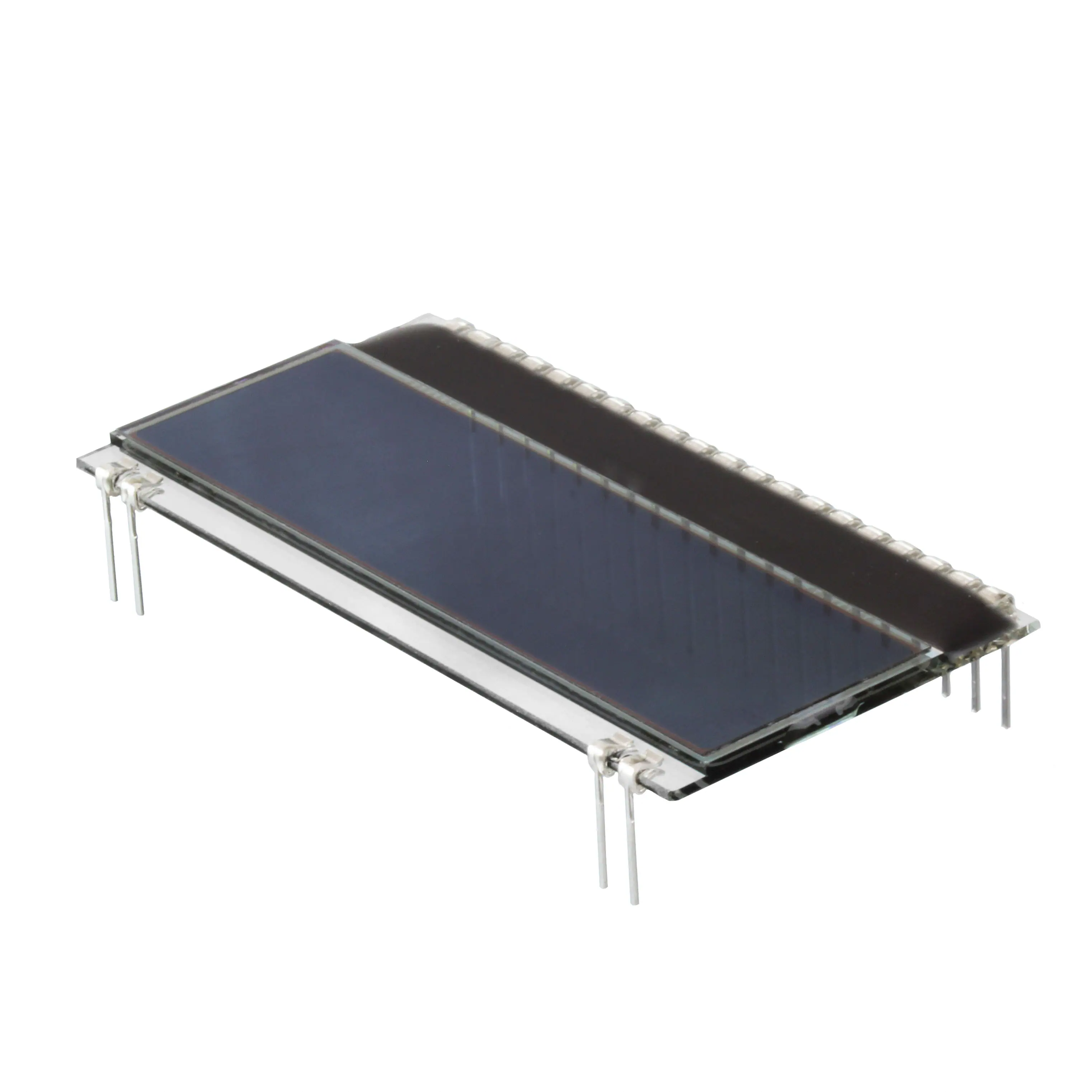

EA DOGM162S-ALCD MOD 32DIG 16 X 2 TRANSMISSIV |
2,187 | 17.09 |
RFQ |
Datasheet |
Bag | EA DOG | Active | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.57mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White |
|

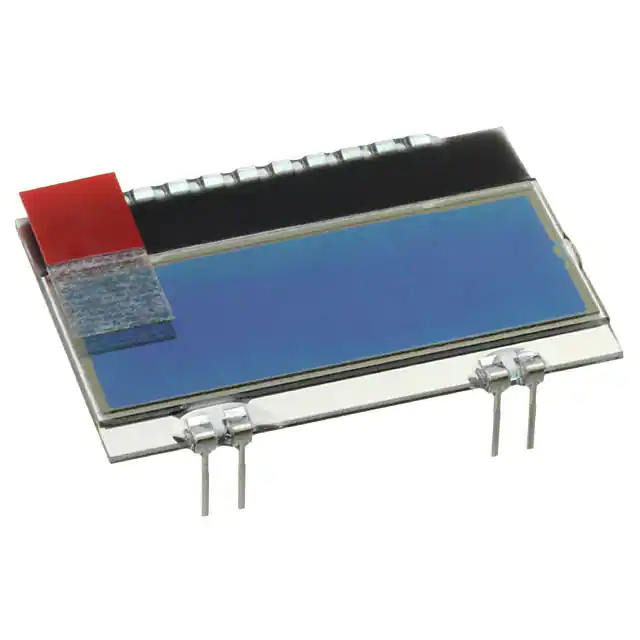

EA DOGS104B-ALCD MOD 40DIG 10 X 4 TRANSMISSIV |
2,978 | 18.90 |
RFQ |
Datasheet |
Bag | EA DOG | Active | 40 | 10 x 4 | - | STN - Super-Twisted Nematic | Transmissive | - | 36.00mm x 27.50mm x 4.60mm | 33.00mm L x 12.10mm W | LED | 3.3V | 0.49mm W x 0.31mm H | I²C, SPI | - | -20°C ~ 70°C | - |
|

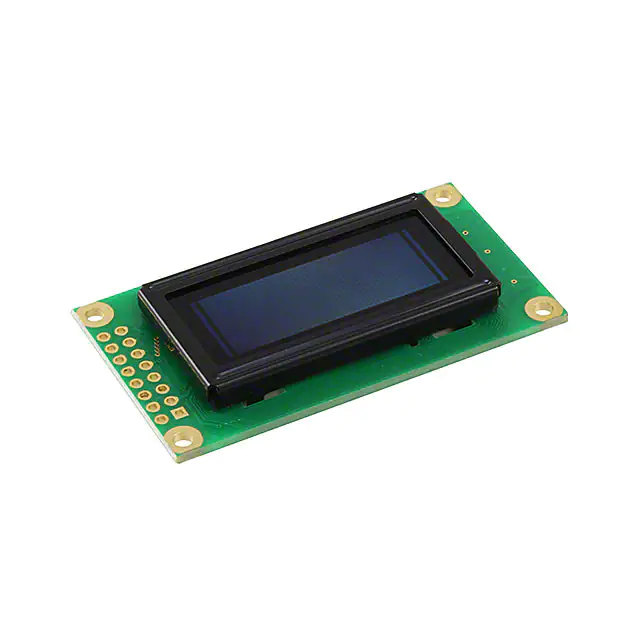

EA W082-XLGOLED MODULE 16DIG 8 X 2 PASSIVE |
2,949 | 21.36 |
RFQ |
Datasheet |
Bag | - | Active | 16 | 8 x 2 | 5 x 8 Dots | OLED | Passive | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 4.50mm | 38.00mm L x 16.00mm W | Without Backlight | 3.3V ~ 5V | 0.56mm W x 0.66mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Yellow |
|

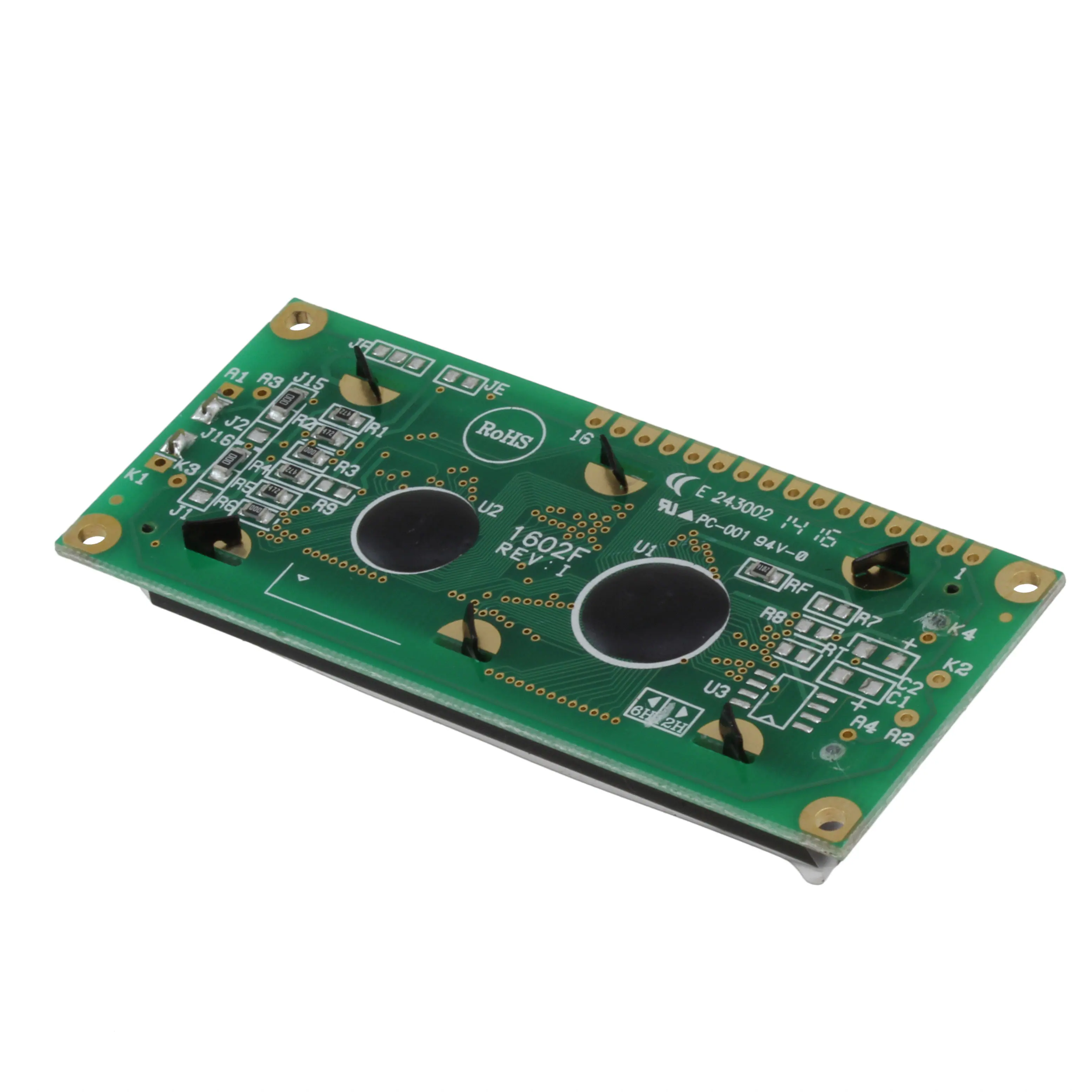

EA W162B-N3LWLCD MOD 32DIG 16X2 TRANSFLCT WHT |
3,247 | 23.32 |
RFQ |
Datasheet |
Bag | BlueLine | Active | 32 | 16 x 2 | - | STN - Super-Twisted Nematic | Transflective | - | - | 64.50mm L x 16.00mm W | LED - White | 5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | White |
|

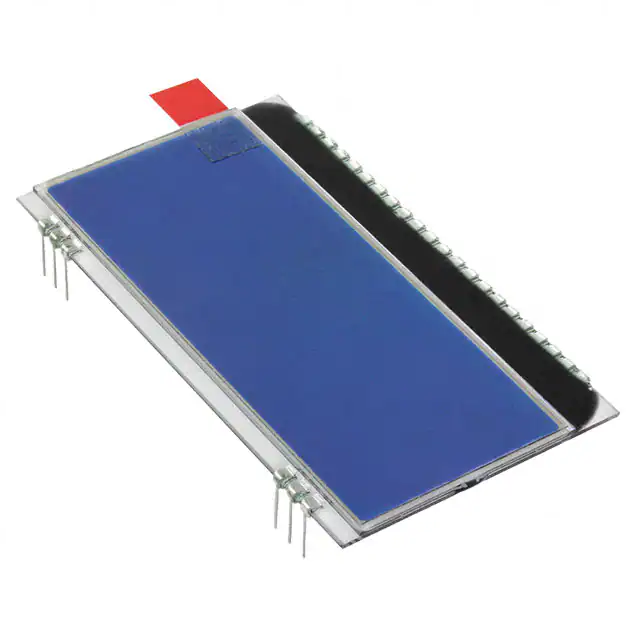

EA DOGM204B-ALCD MOD 80DIG 20 X 4 TRANSMISSIV |
3,804 | 23.66 |
RFQ |
Datasheet |
Bag | EA DOG | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.83mm H x 2.46mm W | 66.00mm x 38.10mm x 2.00mm | 59.00mm L x 26.00mm W | Without Backlight | 3.3V | 0.48mm W x 0.59mm H | I²C, Parallel, SPI | - | -20°C ~ 70°C | White |
|

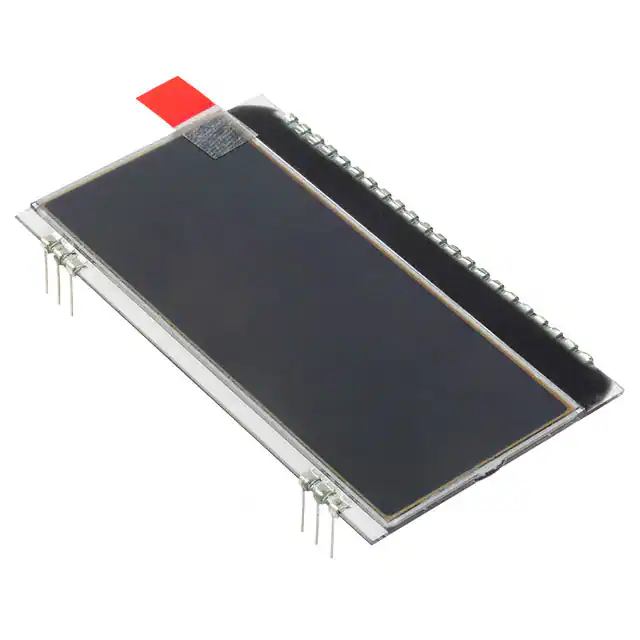

EA DOGM204S-ALCD MOD 80DIG 20 X 4 TRANSMISSIV |
2,086 | 23.66 |
RFQ |
Datasheet |
Bag | EA DOG | Active | 80 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 4.83mm H x 2.46mm W | 66.00mm x 38.10mm x 2.00mm | 59.00mm L x 26.00mm W | Without Backlight | 3.3V | 0.48mm W x 0.59mm H | I²C, Parallel, SPI | - | -20°C ~ 70°C | White |
|

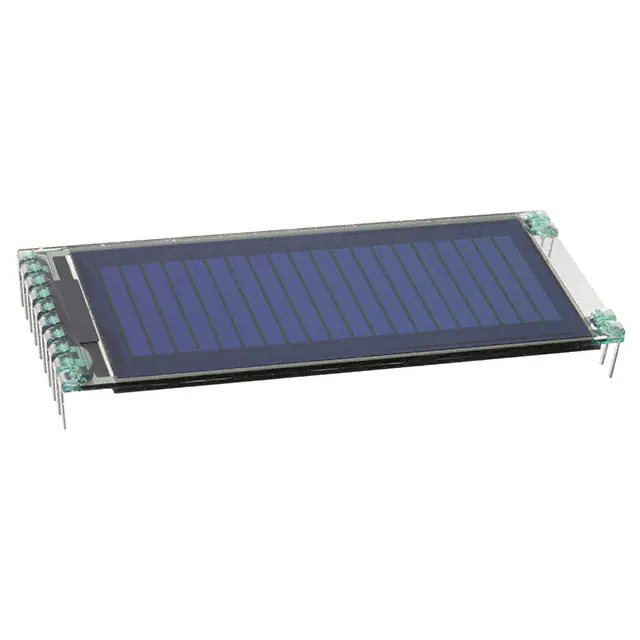

EA OLEDM204-LGAOLED MODULE 80DIG 20 X 4 W/PINS |
3,253 | 28.76 |
RFQ |
Datasheet |
Bag | EA OLED | Active | 80 | 20 x 4 | 5 x 32 Dots | OLED | - | - | 60.96mm x 26.00mm x 2.40mm | 50.00mm L x 20.00mm W | - | 2.4V ~ 3.6V, 4.4V ~ 5.5V | 0.37mm W x 0.51mm H | I²C, SPI | - | -40°C ~ 80°C | Yellow |
|

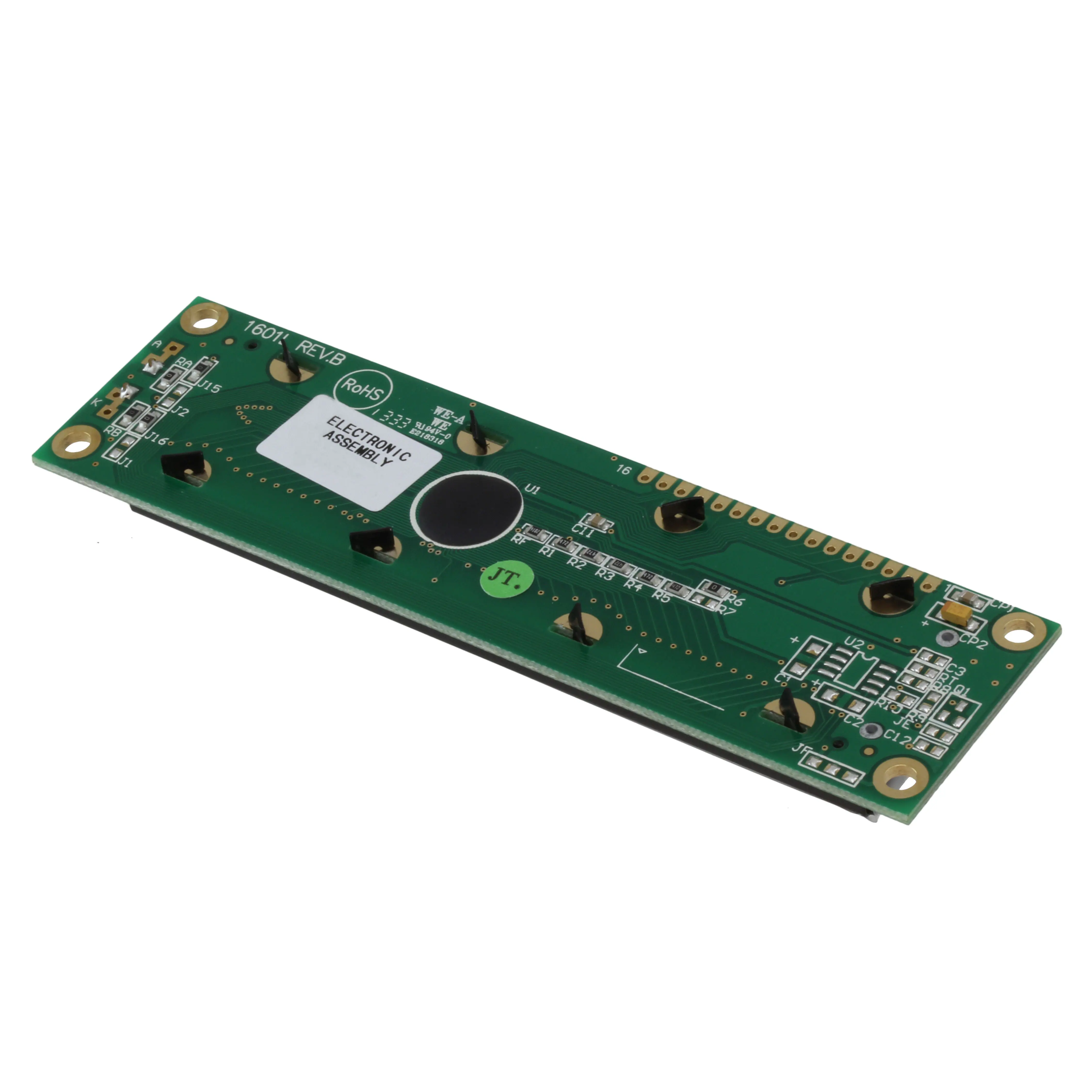

EA W161B-ENLWLCD MOD 16DIG 16X1 TRANSFLCT WHT |
3,705 | 28.85 |
RFQ |
Datasheet |
Bag | BlueLine | Active | 16 | 16 x 1 | - | STN - Super-Twisted Nematic | Transflective | - | - | 64.50mm L x 16.00mm W | LED - White | 5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | White |
|
|
EA OLEDM204-LWAOLED MODULE 80DIG 20 X 4 W/PINS |
3,140 | 33.38 |
RFQ |
Datasheet |
Bag | EA OLED | Active | 80 | 20 x 4 | 5 x 32 Dots | OLED | - | - | 60.96mm x 26.00mm x 2.40mm | 50.00mm L x 20.00mm W | - | 2.4V ~ 3.6V, 4.4V ~ 5.5V | 0.37mm W x 0.51mm H | I²C, SPI | - | -40°C ~ 80°C | White |
|

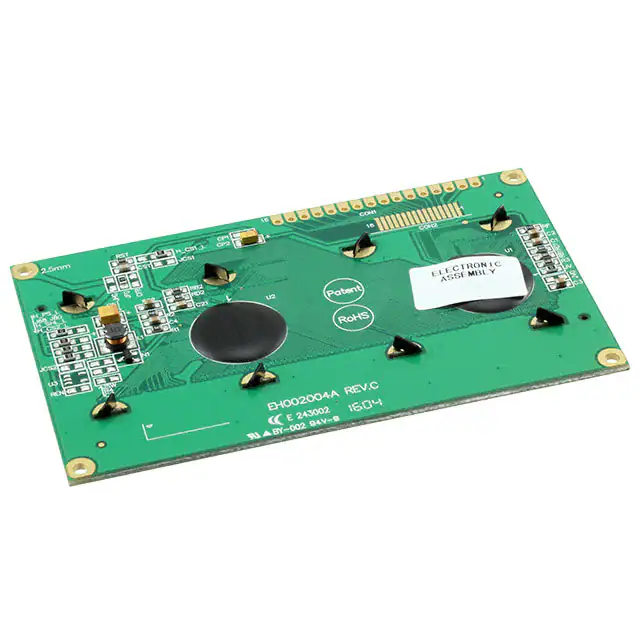

EA W204-XLGOLED MODULE 80DIG 20 X 4 PASSIVE |
2,767 | 46.30 |
RFQ |
Datasheet |
Bag | - | Active | 80 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 4.70mm | 77.00mm L x 25.20mm W | Without Backlight | 3.3V ~ 5V | 0.54mm W x 0.55mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Yellow |
|

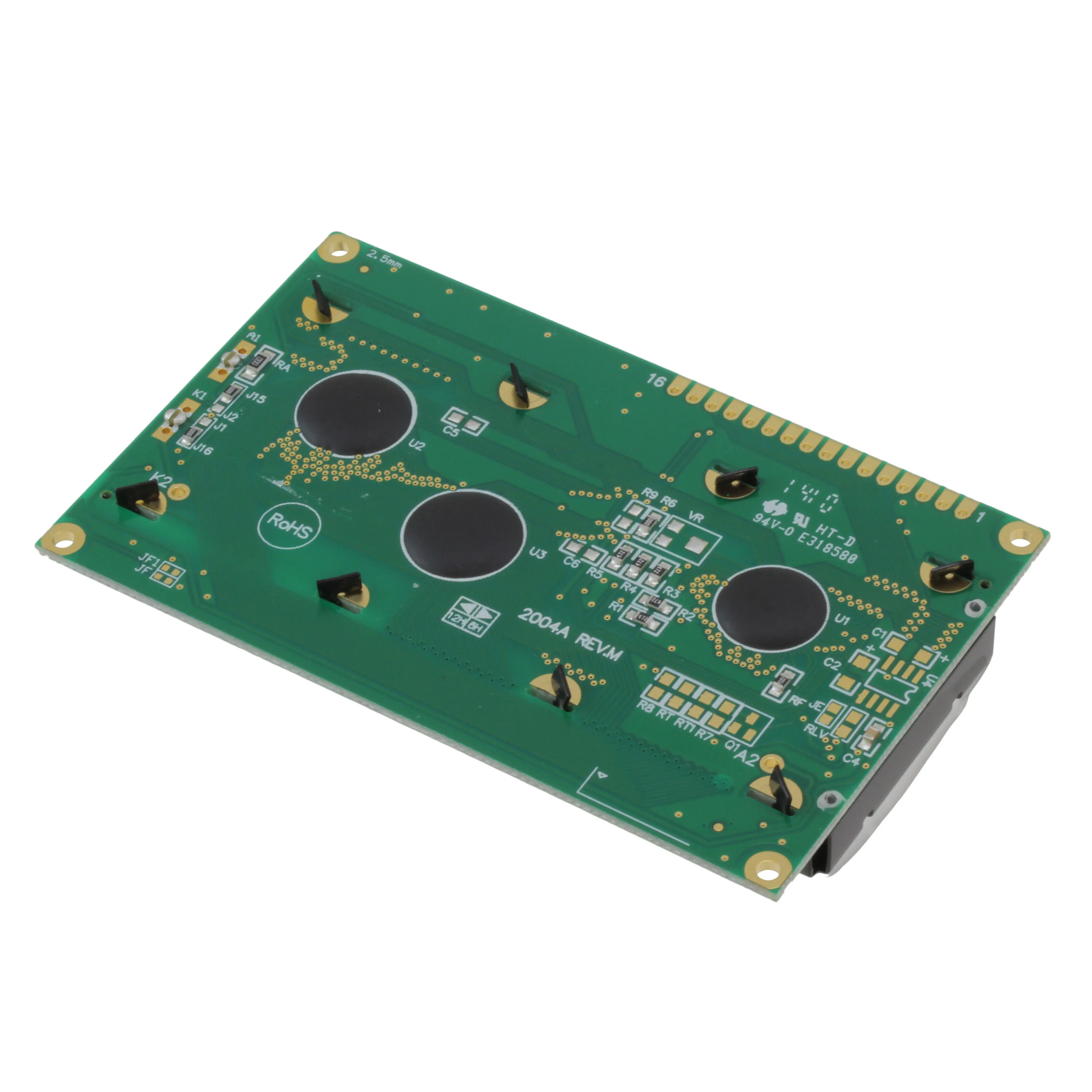

EA W204B-NLWLCD MOD 80DIG 20X4 TRANSFLCT WHT |
2,719 | 47.86 |
RFQ |
Datasheet |
Bag | BlueLine | Active | 80 | 20 x 4 | - | STN - Super-Twisted Nematic | Transflective | - | - | 64.50mm L x 16.00mm W | LED - White | 5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | White |
|

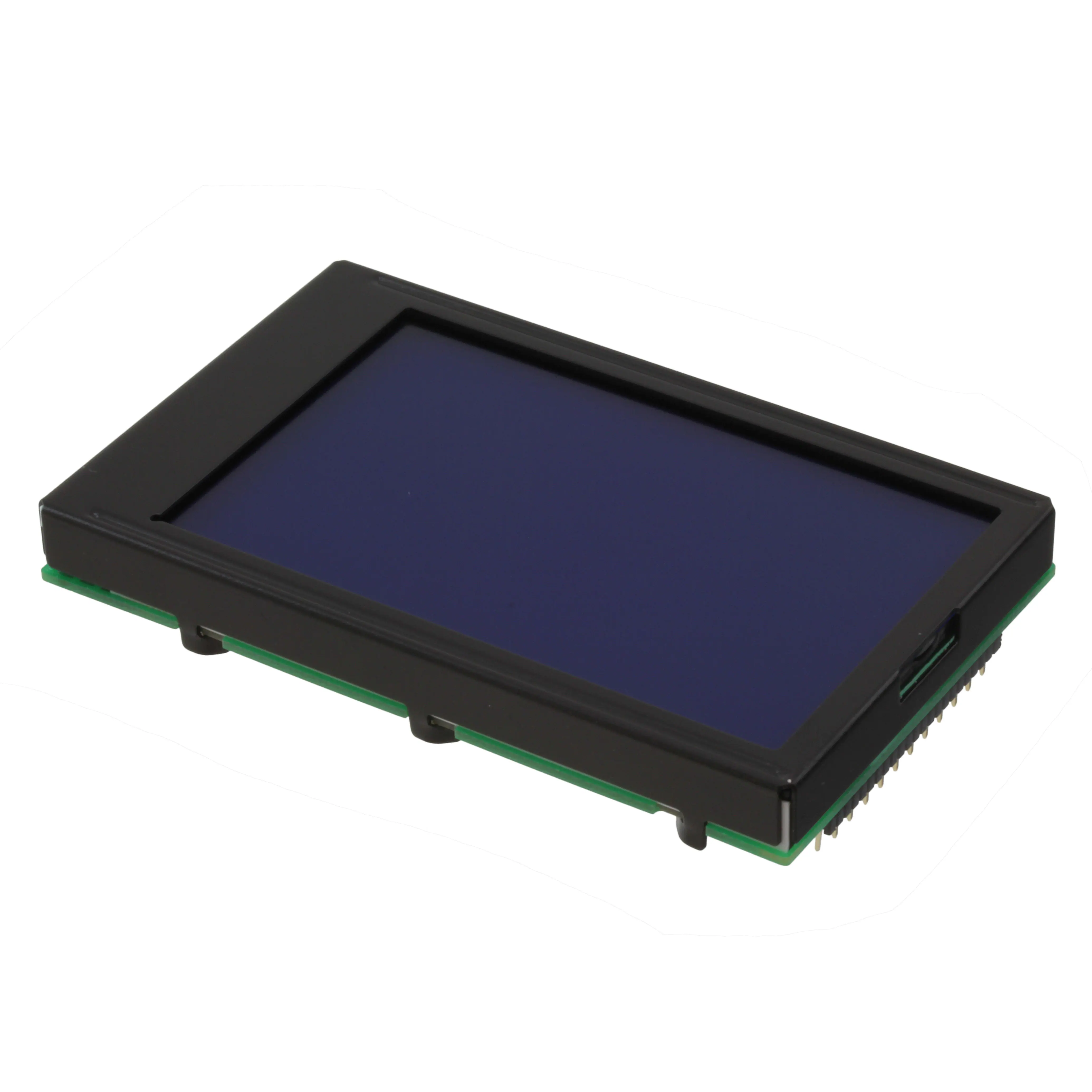

EA DIP203B-6NLWLCD MOD 80DIG 20X4 TRANSMISV WHT |
3,295 | 56.50 |
RFQ |
Datasheet |
Bag | EA DIP203 | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 6.45mm H x 2.37mm W | 75.00mm x 45.80mm x 10.80mm | 61.00mm L x 38.00mm W | LED - White | 3.3V | 0.45mm W x 0.78mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White |
|

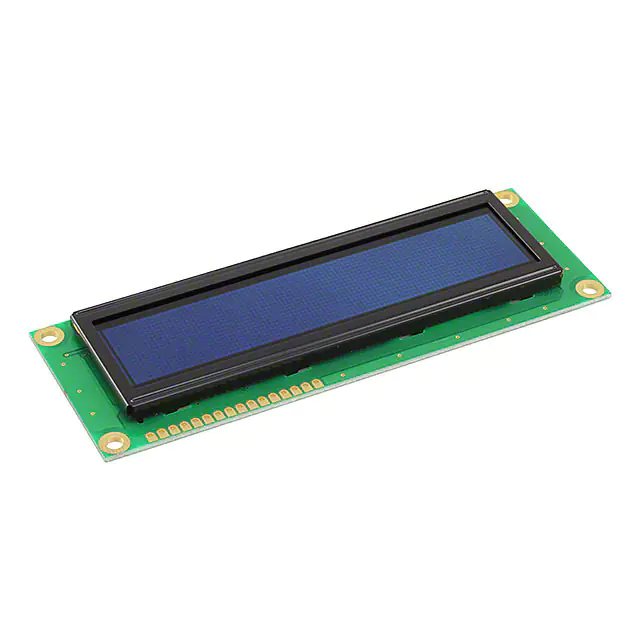

EA W162-XBLGOLED MODULE 32DIG 16 X 2 PASSIVE |
2,316 | 57.77 |
RFQ |
Datasheet |
Bag | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 8.90mm H x 4.74mm W | 122.00mm x 44.00mm x 4.70mm | 99.00mm L x 24.00mm W | Without Backlight | 3.3V ~ 5V | 0.90mm W x 1.06mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Yellow |
|
EA DIPS082-HNLCD MOD 16 DIG 8 X 2 REFLECTIVE |
3,558 | 18.07 |
RFQ |
Datasheet |
Tray | - | Active | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.01mm H x 3.12mm W | 40.00mm x 20.00mm x 7.80mm | 36.30mm L x 13.90mm W | Without Backlight | 5V | 0.60mm W x 0.60mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | Black |
|

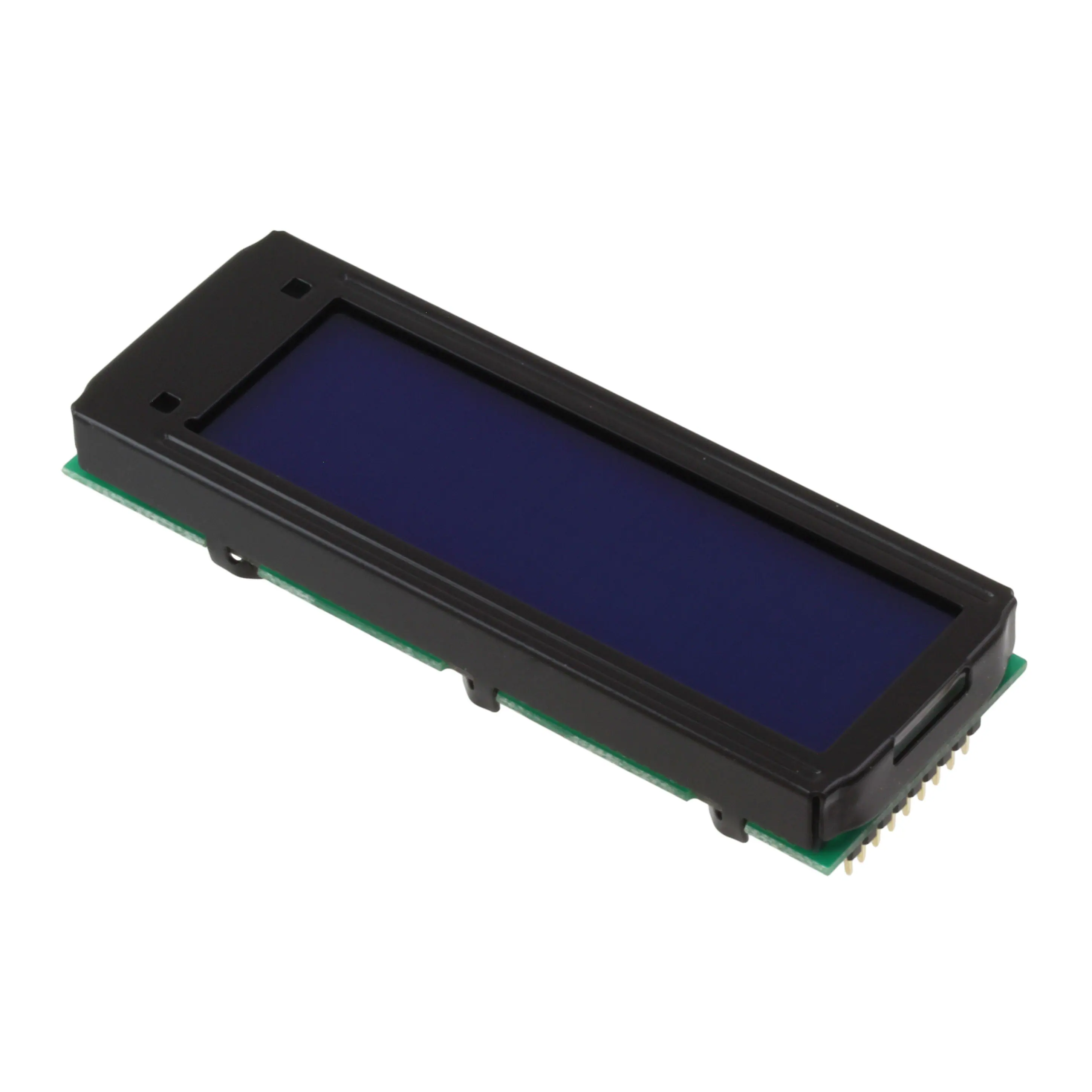

EA DIP162-DN3LWLCD MOD 32DIG 16X2 TRANSMISV WHT |
2,246 | 30.02 |
RFQ |
Datasheet |
Tray | EA DIP162-D | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 6.68mm H x 2.96mm W | 66.00mm x 26.80mm x 10.80mm | 61.00mm L x 19.00mm W | LED - White | 5V | 0.56mm W x 0.80mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | White |
