| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZT52B22 RHGDIODE ZENER 22V 500MW SOD123F |
11,401 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 500 mW | Surface Mount | 55 Ohms | 150°C (TJ) | 22 V | 45 nA @ 15.4 V | 1 V @ 10 mA | |||
|
|
BZT52B2V4 RHGDIODE ZENER 2.4V 500MW SOD123F |
9,730 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 500 mW | Surface Mount | 100 Ohms | -55°C ~ 175°C (TJ) | 2.4 V | 45 µA @ 1 V | 1 V @ 10 mA | |||
|
|
BZT52C9V1 RHGDIODE ZENER 9.1V 500MW SOD123F |
2,969 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 500 mW | Surface Mount | 15 Ohms | -65°C ~ 150°C (TJ) | 9.1 V | 450 nA @ 6 V | 1 V @ 10 mA | |||
|
|
BZT52B24 RHGDIODE ZENER 24V 500MW SOD123F |
5,366 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 500 mW | Surface Mount | 70 Ohms | -55°C ~ 175°C (TJ) | 24 V | 45 nA @ 16.8 V | 1 V @ 10 mA | |||
|
|
BZT52B27 RHGDIODE ZENER 27V 500MW SOD123F |
4,631 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 500 mW | Surface Mount | 80 Ohms | 150°C (TJ) | 27 V | 45 nA @ 18.9 V | 1 V @ 10 mA | |||
|
|
BZT52C5V1 RHGDIODE ZENER 5.1V 500MW SOD123F |
3,278 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 500 mW | Surface Mount | 60 Ohms | -65°C ~ 150°C (TJ) | 5.1 V | 1.8 µA @ 2 V | 1 V @ 10 mA | |||
|
BZD27C13P RVGDIODE ZENER 13.25V 1W SUB SMA |
5,575 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1 W | Surface Mount | 10 Ohms | -55°C ~ 175°C (TJ) | 13.25 V | 2 µA @ 10 V | 1.2 V @ 200 mA | |||
|
|
BZD27C15P RVGDIODE ZENER 14.7V 1W SUB SMA |
4,914 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1 W | Surface Mount | 10 Ohms | -55°C ~ 175°C (TJ) | 14.7 V | 1 µA @ 11 V | 1.2 V @ 200 mA | |||
|
|
BZD27C100P RVGDIODE ZENER 100V 1W SUB SMA |
4,244 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1 W | Surface Mount | 200 Ohms | -55°C ~ 175°C (TJ) | 100 V | 1 µA @ 75 V | 1.2 V @ 200 mA | |||
|
1SMA4753 R3GDIODE ZENER 36V 1.25W DO214AC |
2,719 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 1.25 W | Surface Mount | 50 Ohms | -55°C ~ 175°C (TJ) | 36 V | 1 µA @ 27.4 V | - | |||
|

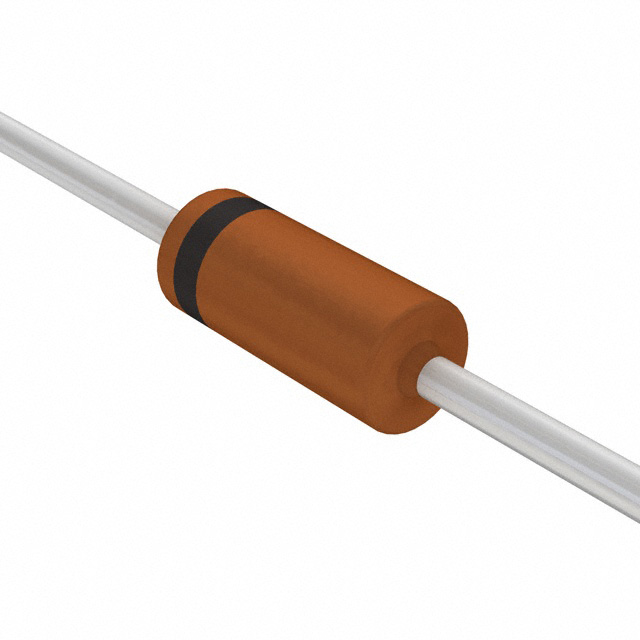

1N5246B A0GDIODE ZENER 16V 500MW DO35 |
4,949 | 0.15 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | ±5% | Active | 500 mW | Through Hole | 17 Ohms | 100°C (TJ) | 16 V | 100 nA @ 12 V | 1.1 V @ 200 mA | |||
|
|
1PGSMA4753 R3GDIODE ZENER 36V 1.25W DO214AC |
3,590 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 1.25 W | Surface Mount | 50 Ohms | -55°C ~ 175°C (TJ) | 36 V | 1 µA @ 27.4 V | 1.2 V @ 200 mA | |||
|
|
1PGSMA4755 R3GDIODE ZENER 43V 1.25W DO214AC |
3,575 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 1.25 W | Surface Mount | 70 Ohms | -55°C ~ 175°C (TJ) | 43 V | 1 µA @ 32.7 V | 1.2 V @ 200 mA | |||
|
|
1PGSMA4760 R3GDIODE ZENER 68V 1.25W DO214AC |
3,328 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 1.25 W | Surface Mount | 150 Ohms | -55°C ~ 175°C (TJ) | 68 V | 1 µA @ 51.7 V | 1.2 V @ 200 mA | |||
|
|
1PGSMA4761 R3GDIODE ZENER 75V 1.25W DO214AC |
1,800 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 1.25 W | Surface Mount | 175 Ohms | -55°C ~ 175°C (TJ) | 75 V | 1 µA @ 56 V | 1.2 V @ 200 mA | |||
|
|
1PGSMA4762 R3GDIODE ZENER 82V 1.25W DO214AC |
3,236 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 1.25 W | Surface Mount | 200 Ohms | -55°C ~ 175°C (TJ) | 82 V | 1 µA @ 62.2 V | 1.2 V @ 200 mA | |||
|
|
BZT52C27 RHGDIODE ZENER 27V 500MW SOD123F |
3,089 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 500 mW | Surface Mount | 80 Ohms | -55°C ~ 175°C (TJ) | 27 V | 45 nA @ 18.9 V | 1 V @ 10 mA | |||
|
MMSZ5242B RHGDIODE ZENER 12V 500MW SOD123F |
3,000 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 500 mW | Surface Mount | 30 Ohms | -55°C ~ 175°C (TJ) | 12 V | 1 µA @ 9.1 V | - | |||
|
|
1PGSMA4751 R3GDIODE ZENER 30V 1.25W DO214AC |
3,600 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 1.25 W | Surface Mount | 40 Ohms | -55°C ~ 175°C (TJ) | 30 V | 1 µA @ 22.8 V | 1.2 V @ 200 mA | |||
|
|
1PGSMA4754 R3GDIODE ZENER 39V 1.25W DO214AC |
3,600 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 1.25 W | Surface Mount | 60 Ohms | -55°C ~ 175°C (TJ) | 39 V | 1 µA @ 29.7 V | 1.2 V @ 200 mA |
