| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5360B-TPDIODE ZENER 25V 5W DO15 |
2,631 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 5 W | Through Hole | 4 Ohms | -55°C ~ 150°C | 25 V | 500 nA @ 19 V | 1.2 V @ 1 A | |||
|
DL4748A-TPDIODE ZENER 22V 1W MELF |
1,264 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Obsolete | 1 W | Surface Mount | 23 Ohms | -65°C ~ 175°C | 22 V | 5 µA @ 16.7 V | 1.2 V @ 200 mA | |||
|
SMB2EZ15D5-TPDIODE ZENER 15V 2W DO214AA |
2,631 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Obsolete | 2 W | Surface Mount | 7 Ohms | -55°C ~ 150°C (TJ) | 15 V | 500 nA @ 11.4 V | 1.5 V @ 200 mA | |||
|
MMSZ5233B-TPDIODE ZENER 6V 500MW SOD123 |
8,270 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 500 mW | Surface Mount | 7 Ohms | -55°C ~ 150°C | 6 V | 5 µA @ 3.5 V | 900 mV @ 10 mA | |||
|
|
MMSZ5252B-TPDIODE ZENER 24V 500MW SOD123 |
56,340 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 500 mW | Surface Mount | 33 Ohms | -55°C ~ 150°C | 24 V | 100 nA @ 18 V | 900 mV @ 10 mA | |||
|
SMAJ5921B-TPDIODE ZENER 6.8V 1.5W DO214AC |
7,400 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1.5 W | Surface Mount | 2.5 Ohms | 150°C | 6.8 V | 2.5 µA @ 5.2 V | 1.5 V @ 200 mA | |||
|
SMAJ5938B-TPDIODE ZENER 36V 1.5W DO214AC |
7,370 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1.5 W | Surface Mount | 38 Ohms | 150°C | 36 V | 500 nA @ 27.4 V | 1.5 V @ 200 mA | |||
|
|
SMAJ5934B-TPDIODE ZENER 24V 1.5W DO214AC |
6,690 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1.5 W | Surface Mount | 19 Ohms | 150°C | 24 V | 500 nA @ 18.2 V | 1.5 V @ 200 mA | |||
|
|
SMAJ5927B-TPDIODE ZENER 12V 1.5W DO214AC |
7,041 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1.5 W | Surface Mount | 6.5 Ohms | 150°C | 12 V | 500 nA @ 9.1 V | 1.5 V @ 200 mA | |||
|
|
SMAJ5926B-TPDIODE ZENER 11V 1.5W DO214AC |
5,666 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1.5 W | Surface Mount | 5.5 Ohms | 150°C | 11 V | 500 nA @ 8.4 V | 1.5 V @ 200 mA | |||
|
1N4737AP-TPDIODE ZENER 7.5V 1W DO41 |
4,979 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1 W | Through Hole | 4 Ohms | -65°C ~ 150°C | 7.5 V | 10 µA @ 5 V | 1.2 V @ 200 mA | |||
|
|
SMAJ5931B-TPDIODE ZENER 18V 1.5W DO214AC |
4,081 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1.5 W | Surface Mount | 12 Ohms | 150°C | 18 V | 500 nA @ 13.7 V | 1.5 V @ 200 mA | |||
|
1N5243B-TPDIODE ZENER 13V 500MW DO35 |
1,703 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Obsolete | 500 mW | Through Hole | 13 Ohms | -55°C ~ 150°C | 13 V | 500 nA @ 9.9 V | 1.1 V @ 200 mA | |||
|
|
3SMBJ5924B-TPDIODE ZENER 9.1V 3W DO214AA |
990 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 3 W | Surface Mount | 4 Ohms | -55°C ~ 150°C | 9.1 V | 5 µA @ 7 V | 1.5 V @ 200 mA | |||
|
BZV55C24-TPDIODE ZENER 24V 500MW MINI MELF |
450 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 500 mW | Surface Mount | 80 Ohms | -55°C ~ 150°C | 24 V | 100 nA @ 18 V | 1.5 V @ 200 mA | |||
|
|
3SMBJ5929B-TPDIODE ZENER 15V 3W DO214AA |
360 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 3 W | Surface Mount | 9 Ohms | -55°C ~ 150°C | 15 V | 1 µA @ 11.4 V | 1.5 V @ 200 mA | |||
|
|
2EZ27D5-TPDIODE ZENER 27V 2W DO41 |
272 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 2 W | Through Hole | 18 Ohms | -55°C ~ 150°C | 27 V | 500 nA @ 20.6 V | 1.2 V @ 200 mA | |||
|

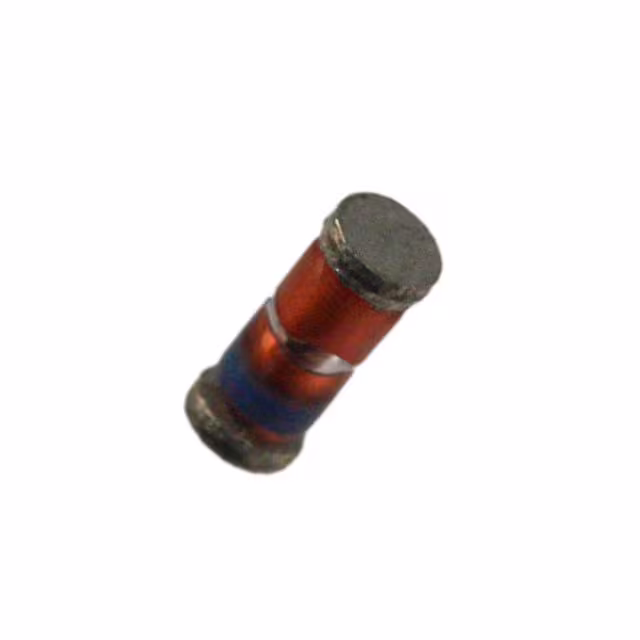

DL5243B-TPDIODE ZENER 13V 500MW MINI MELF |
418 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Obsolete | 500 mW | Surface Mount | 13 Ohms | -65°C ~ 175°C | 13 V | 500 nA @ 9.9 V | 1.1 V @ 200 mA | |||
|
|
SMAZ6V2-TPDIODE ZENER 6.2V 1W DO214AC |
172,166 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1 W | Surface Mount | 2 Ohms | -65°C ~ 150°C | 6.2 V | 5 µA @ 3 V | 1.2 V @ 200 mA | |||
|
|
SMAJ4745A-TPDIODE ZENER 16V 1W DO214AC |
192 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 1 W | Surface Mount | 16 Ohms | -65°C ~ 150°C | 16 V | 5 µA @ 12.2 V | 1.2 V @ 100 mA |
