| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

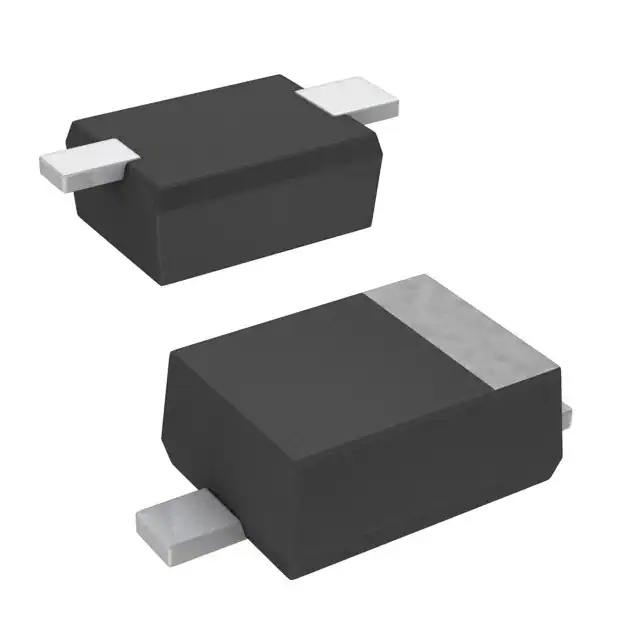

MAZ8300GMLDIODE ZENER 30V 150MW SMINI2 |
2,961 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±7% | Obsolete | 150 mW | Surface Mount | 160 Ohms | - | 30 V | 50 nA @ 23 V | 1 V @ 10 mA | |||
|
MAZ30360HLDIODE ZENER 3.6V 200MW MINI3 |
1,890 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 200 mW | Surface Mount | 130 Ohms | - | 3.6 V | 10 µA @ 1 V | 900 mV @ 10 mA | |||
|
MAZ41300MFDIODE ZENER 13V 370MW DO34 |
1,631 | 0.10 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | ±6% | Obsolete | 370 mW | Through Hole | 30 Ohms | - | 13 V | 100 nA @ 9 V | 900 mV @ 10 mA | |||
|
MAZD062G0LDIODE ZENER 6.2V 120MW SSSMINI2 |
19,234 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 120 mW | Surface Mount | 30 Ohms | - | 6.2 V | 200 nA @ 4 V | 1 V @ 10 mA | |||
|
|
MAZD100G0LDIODE ZENER 10V 120MW SSSMINI2 |
19,420 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 120 mW | Surface Mount | 30 Ohms | - | 10 V | 50 nA @ 7 V | 1 V @ 10 mA | |||
|
|
MAZD120G0LDIODE ZENER 12V 120MW SSSMINI2 |
17,964 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Obsolete | 120 mW | Surface Mount | 30 Ohms | - | 12 V | 50 nA @ 9 V | 1 V @ 10 mA | |||
|
DZ2S09100LDIODE ZENER 9.1V 150MW SSMINI2 |
4,194 | 0.53 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Discontinued at Digi-Key | 150 mW | Surface Mount | 20 Ohms | - | 9.1 V | 100 nA @ 6 V | 1 V @ 10 mA | ||||
|
|
MAZD10000LDIODE ZENER 10V 120MW SSSMINI2 |
9,947 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 120 mW | Surface Mount | 30 Ohms | - | 10 V | 50 nA @ 7 V | 1 V @ 10 mA | |||
|
|
MAZD06200LDIODE ZENER 6.2V 120MW SSSMINI2 |
8,451 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 120 mW | Surface Mount | 30 Ohms | - | 6.2 V | 200 nA @ 4 V | 1 V @ 10 mA | |||
|
|
MAZD12000LDIODE ZENER 12V 120MW SSSMINI2 |
5,093 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Obsolete | 120 mW | Surface Mount | 30 Ohms | - | 12 V | 50 nA @ 9 V | 1 V @ 10 mA | |||
|
|
MAZS1800MLDIODE ZENER 18V 150MW SSMINI2 |
26,138 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±3% | Obsolete | 150 mW | Surface Mount | 60 Ohms | - | 18 V | 50 nA @ 13 V | 1 V @ 10 mA | |||
|
|
MAZ8270GLLDIODE ZENER 27V 150MW SMINI2 |
4,787 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±7% | Obsolete | 150 mW | Surface Mount | 120 Ohms | - | 27 V | 50 nA @ 21 V | 1 V @ 10 mA | |||
|
|
MAZ81500MLDIODE ZENER 15V 150MW SMINI2 |
4,516 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 150 mW | Surface Mount | 40 Ohms | - | 15 V | 50 nA @ 11 V | 1 V @ 10 mA | |||
|
|
MAZ8220GMLDIODE ZENER 22V 150MW SMINI2 |
5,622 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 150 mW | Surface Mount | 80 Ohms | - | 22 V | 50 nA @ 17 V | 1 V @ 10 mA | |||
|
|
MAZ82200MLDIODE ZENER 22V 150MW SMINI2 |
45,000 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 150 mW | Surface Mount | 80 Ohms | - | 22 V | 50 nA @ 17 V | 1 V @ 10 mA | |||
|
|
MAZ33600MLDIODE ZENER 36V 200MW MINI3 |
4,028 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 200 mW | Surface Mount | 90 Ohms | - | 36 V | 50 nA @ 25 V | 900 mV @ 10 mA | |||
|
|
MAZ30470MLDIODE ZENER 4.7V 200MW MINI3 |
66,542 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 200 mW | Surface Mount | 80 Ohms | - | 4.7 V | 3 µA @ 1 V | 900 mV @ 10 mA | |||
|
|
MAZS130GMLDIODE ZENER 13V 150MW SSMINI2 |
5,728 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±3% | Obsolete | 150 mW | Surface Mount | 35 Ohms | - | 13 V | 50 nA @ 10 V | 1 V @ 10 mA | |||
|
|
MAZS220GMLDIODE ZENER 22V 150MW SSMINI2 |
5,200 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±3% | Obsolete | 150 mW | Surface Mount | 80 Ohms | - | 22 V | 50 nA @ 17 V | 1 V @ 10 mA | |||
|
|
MAZD16000LDIODE ZENER 16V 120MW SSSMINI2 |
17,297 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Obsolete | 120 mW | Surface Mount | 50 Ohms | - | 16 V | 50 nA @ 12 V | 1 V @ 10 mA |
