| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6335USDIODE ZENER 30V 500MW MELF |
2,591 | 11.94 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Discontinued at Digi-Key | 500 mW | Surface Mount | 500 Ohms | -65°C ~ 175°C | 30 V | 50 nA @ 23 V | 1.4 V @ 1 A | |||
|
1N6636USDIODE ZENER 4.7V 5W D5B |
2,378 | 11.97 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 5 W | Surface Mount | 450 Ohms | -65°C ~ 175°C | 4.7 V | 20 µA @ 1 V | 1.5 V @ 1 A | |||
|
JANTX1N6326DIODE ZENER 12V 500MW DO35 |
2,113 | 13.02 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/533 | RoHS | ±5% | Active | 500 mW | Through Hole | 7 Ohms | -65°C ~ 175°C | 12 V | 1 µA @ 9 V | 1.4 V @ 1 A | ||
|
1N5227A (DO-35)DIODE ZENER 3.6V 500MW DO35 |
12,007 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±10% | Active | 500 mW | Through Hole | 24 Ohms | -65°C ~ 175°C | 3.6 V | 15 µA @ 1 V | 1.5 V @ 200 mA | |||
|
|
1N5249A (DO-35)DIODE ZENER 19V 500MW DO35 |
1,924 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±10% | Active | 500 mW | Through Hole | 23 Ohms | -65°C ~ 175°C | 19 V | 100 nA @ 14 V | 1.5 V @ 200 mA | |||
|

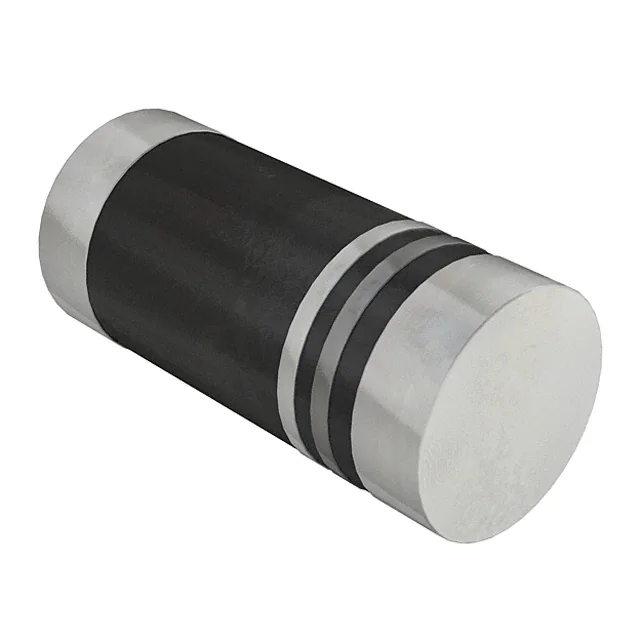

1N829UR-1DIODE ZENER 6.2V 500MW DO213AA |
100 | 27.44 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 500 mW | Surface Mount | 15 Ohms | -55°C ~ 175°C | 6.2 V | 2 µA @ 3 V | - | |||
|
1N965BDIODE ZENER 15V 500MW DO7 |
2,777 | 1.80 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 500 mW | Through Hole | 16 Ohms | -65°C ~ 175°C | 15 V | 5 µA @ 11.4 V | 1.1 V @ 200 mA | |||
|
|
1N4109DIODE ZENER 15V 500MW DO204AH |
3,121 | 2.14 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 500 mW | Through Hole | 100 Ohms | -65°C ~ 175°C | 15 V | 50 nA @ 11.4 V | 1.1 V @ 200 mA | |||
|
1N4465DIODE ZENER 10V 1.5W DO204AL |
3,487 | 6.20 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.5 W | Through Hole | 5 Ohms | -65°C ~ 175°C | 10 V | 300 nA @ 8 V | 1.5 V @ 1 A | |||
|
|
1N936ADIODE ZENER 9V 500MW DO35 |
2,877 | 10.12 |
RFQ |
Datasheet |
Bulk | RoHS | - | Active | 500 mW | Through Hole | 20 Ohms | -65°C ~ 175°C | 9 V | 10 µA @ 6 V | - | |||
|
1N5969DIODE ZENER 6.2V 5W AXIAL |
3,366 | 18.45 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 5 W | Through Hole | - | -65°C ~ 175°C | 6.2 V | 1 mA @ 4.74 V | 1.5 V @ 1 A | |||
|
|
1N4965DIODE ZENER 20V 5W AXIAL |
3,757 | 6.46 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 5 W | Through Hole | 4.5 Ohms | -65°C ~ 175°C | 20 V | 2 µA @ 15.2 V | 1.5 V @ 1 A | |||
|
CDLL943BDIODE ZENER 11.7V 500MW DO213AA |
2,736 | 18.56 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 500 mW | Surface Mount | 30 Ohms | -55°C ~ 175°C | 11.7 V | 15 µA @ 8 V | - | |||
|

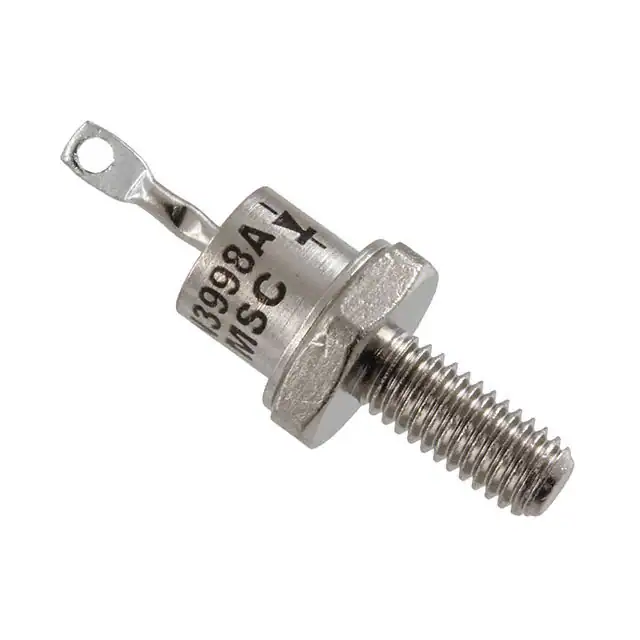

1N3998ADIODE ZENER 6.2V 10W DO213AA |
2,259 | 38.23 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 10 W | Chassis Mount | 1.1 Ohms | -65°C ~ 175°C | 6.2 V | 10 µA @ 2 V | 1.5 V @ 2 A | |||
|
|
1N829ADIODE ZENER 6.2V 500MW DO35 |
3,139 | 11.74 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 500 mW | Through Hole | 10 Ohms | -65°C ~ 175°C | 6.2 V | 2 µA @ 3 V | - | |||
|
1PMT4626CE3/TR7DIODE ZENER 5.6V 1W DO216 |
3,471 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR) | POWERMITE® | RoHS | ±2% | Active | 1 W | Surface Mount | 1.4 kOhms | -55°C ~ 150°C | 5.6 V | 10 µA @ 4 V | 1.1 V @ 200 mA | ||
|
SMBJ4729AE3/TR13DIODE ZENER 3.6V 2W SMBJ |
3,591 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Active | 2 W | Surface Mount | 10 Ohms | -65°C ~ 150°C | 3.6 V | 100 µA @ 1 V | 1.2 V @ 200 mA | |||
|
|
SMBJ4729E3/TR13DIODE ZENER 3.6V 2W SMBJ |
3,128 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±10% | Active | 2 W | Surface Mount | 10 Ohms | -65°C ~ 150°C | 3.6 V | 100 µA @ 1 V | 1.2 V @ 200 mA | |||
|
|
SMBJ4730AE3/TR13DIODE ZENER 3.9V 2W SMBJ |
3,116 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Active | 2 W | Surface Mount | 9 Ohms | -65°C ~ 150°C | 3.9 V | 50 µA @ 1 V | 1.2 V @ 200 mA | |||
|
|
SMBJ4730E3/TR13DIODE ZENER 3.9V 2W SMBJ |
3,056 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±10% | Active | 2 W | Surface Mount | 9 Ohms | -65°C ~ 150°C | 3.9 V | 50 µA @ 1 V | 1.2 V @ 200 mA |
