| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4747 GDIODE ZENER 20V 1W DO204AL |
3,628 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±10% | Active | 1 W | Through Hole | 22 Ohms | -65°C ~ 175°C | 20 V | 5 µA @ 15.2 V | 1.2 V @ 200 mA | |||
|
|
3EZ7.5D5E3/TR8DIODE ZENER 7.5V 3W DO204AL |
2,110 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Active | 3 W | Through Hole | 2 Ohms | -65°C ~ 150°C | 7.5 V | 5 µA @ 5 V | 1.2 V @ 200 mA | |||
|
|
1N5913B GDIODE ZENER 3.3V 1.25W DO204AL |
3,664 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.25 W | Through Hole | 10 Ohms | -65°C ~ 175°C | 3.3 V | 100 µA @ 1 V | 1.2 V @ 200 mA | |||
|
SMBG5945BE3/TR13DIODE ZENER 68V 2W SMBG |
3,990 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Obsolete | 2 W | Surface Mount | 120 Ohms | -65°C ~ 150°C | 68 V | 1 µA @ 51.2 V | 1.2 V @ 200 mA | |||
|

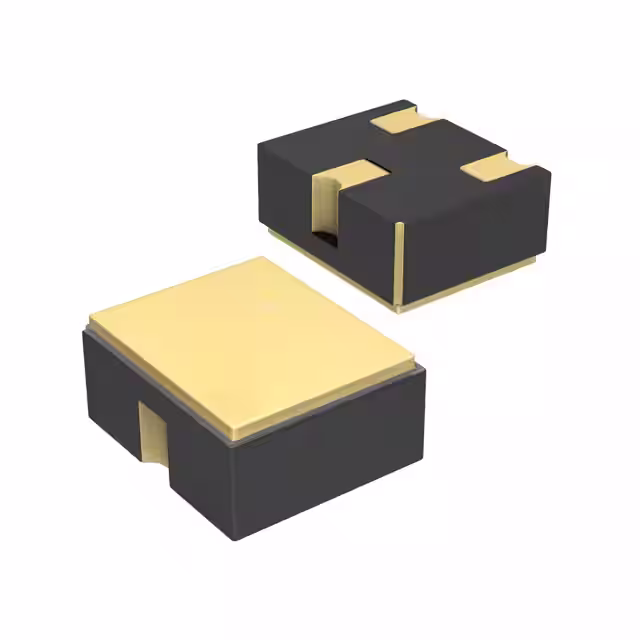

SZL1.8ADIODE ZENER 1.8V 500MW UB |
2,957 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±10% | Obsolete | 500 mW | Surface Mount | 325 Ohms | -55°C ~ 150°C | 1.8 V | 50 nA @ 800 mV | 1 V @ 100 mA | |||
|
SMBJ4731C/TR13DIODE ZENER 4.3V 2W SMBJ |
2,815 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 2 W | Surface Mount | 9 Ohms | -65°C ~ 150°C | 4.3 V | 10 µA @ 1 V | 1.2 V @ 200 mA | |||
|
|
1N4748 GDIODE ZENER 22V 1W DO204AL |
3,206 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±10% | Active | 1 W | Through Hole | 23 Ohms | -65°C ~ 175°C | 22 V | 5 µA @ 16.7 V | 1.2 V @ 200 mA | |||
|
|
3EZ7.5DE3/TR8DIODE ZENER 7.5V 3W DO204AL |
3,584 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±20% | Active | 3 W | Through Hole | 2 Ohms | -65°C ~ 150°C | 7.5 V | 5 µA @ 5 V | 1.2 V @ 200 mA | |||
|
|
1N5919B GDIODE ZENER 5.6V 1.25W DO204AL |
2,304 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.25 W | Through Hole | 2 Ohms | -65°C ~ 175°C | 5.6 V | 5 µA @ 3 V | 1.2 V @ 200 mA | |||
|
|
SMBG5945C/TR13DIODE ZENER 68V 2W SMBG |
2,767 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Obsolete | 2 W | Surface Mount | 120 Ohms | -65°C ~ 150°C | 68 V | 1 µA @ 51.2 V | 1.2 V @ 200 mA | |||
|
|
SZL1.9ADIODE ZENER 1.9V 500MW UB |
2,921 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±10% | Obsolete | 500 mW | Surface Mount | 325 Ohms | -55°C ~ 150°C | 1.9 V | 50 nA @ 900 mV | 1 V @ 100 mA | |||
|
|
SMBJ4731CE3/TR13DIODE ZENER 4.3V 2W SMBJ |
2,307 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 2 W | Surface Mount | 9 Ohms | -65°C ~ 150°C | 4.3 V | 10 µA @ 1 V | 1.2 V @ 200 mA | |||
|
|
1N4749 GDIODE ZENER 24V 1W DO204AL |
2,771 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±10% | Active | 1 W | Through Hole | 25 Ohms | -65°C ~ 175°C | 24 V | 5 µA @ 18.2 V | 1.2 V @ 200 mA | |||
|
|
3EZ75D/TR8DIODE ZENER 75V 3W DO204AL |
2,933 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±20% | Active | 3 W | Through Hole | 85 Ohms | -65°C ~ 150°C | 75 V | 500 nA @ 56 V | 1.2 V @ 200 mA | |||
|
|
1N5920B GDIODE ZENER 6.2V 1.25W DO204AL |
2,353 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.25 W | Through Hole | 2 Ohms | -65°C ~ 175°C | 6.2 V | 5 µA @ 4 V | 1.2 V @ 200 mA | |||
|
|
SMBG5945CE3/TR13DIODE ZENER 68V 2W SMBG |
2,966 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Obsolete | 2 W | Surface Mount | 120 Ohms | -65°C ~ 150°C | 68 V | 1 µA @ 51.2 V | 1.2 V @ 200 mA | |||
|
|
SZL2.0ADIODE ZENER 2V 500MW UB |
3,771 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±10% | Obsolete | 500 mW | Surface Mount | 325 Ohms | -55°C ~ 150°C | 2 V | 50 nA @ 1.1 V | 1 V @ 100 mA | |||
|
|
SMBJ4732C/TR13DIODE ZENER 4.7V 2W SMBJ |
3,955 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 2 W | Surface Mount | 8 Ohms | -65°C ~ 150°C | 4.7 V | 10 µA @ 1 V | 1.2 V @ 200 mA | |||
|
|
1N4750 GDIODE ZENER 27V 1W DO204AL |
2,465 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | ±10% | Active | 1 W | Through Hole | 35 Ohms | -65°C ~ 175°C | 27 V | 5 µA @ 20.6 V | 1.2 V @ 200 mA | |||
|
|
3EZ75D10/TR8DIODE ZENER 75V 3W DO204AL |
2,458 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±10% | Active | 3 W | Through Hole | 85 Ohms | -65°C ~ 150°C | 75 V | 500 nA @ 56 V | 1.2 V @ 200 mA |
