| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MM5Z30Zener, 30V, 0.3W, 5% |
2,965 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Active | 200 mW | Surface Mount | 80 Ohms | -65°C ~ 150°C (TJ) | 30 V | 50 nA @ 21 V | - | |||
|
|
MM5Z43Zener, 43V, 0.3W, 5% |
2,478 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Active | 200 mW | Surface Mount | 150 Ohms | -65°C ~ 150°C (TJ) | 43 V | 50 nA @ 30.1 V | - | |||
|
|
MM5Z9V1Zener, 9.1V, 0.3W, 5% |
3,897 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Active | 200 mW | Surface Mount | 15 Ohms | -65°C ~ 150°C (TJ) | 9.1 V | 500 nA @ 6 V | - | |||
|
|
MM5Z47Zener, 47V, 0.3W, 5% |
2,040 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Active | 200 mW | Surface Mount | 170 Ohms | -65°C ~ 150°C (TJ) | 47 V | 50 nA @ 32.9 V | - | |||
|
|
MM5Z4V3Zener, 4.3V, 0.3W, 5% |
2,432 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±5% | Active | 200 mW | Surface Mount | 80 Ohms | -65°C ~ 150°C (TJ) | 4.3 V | 3 µA @ 1 V | - | |||
|

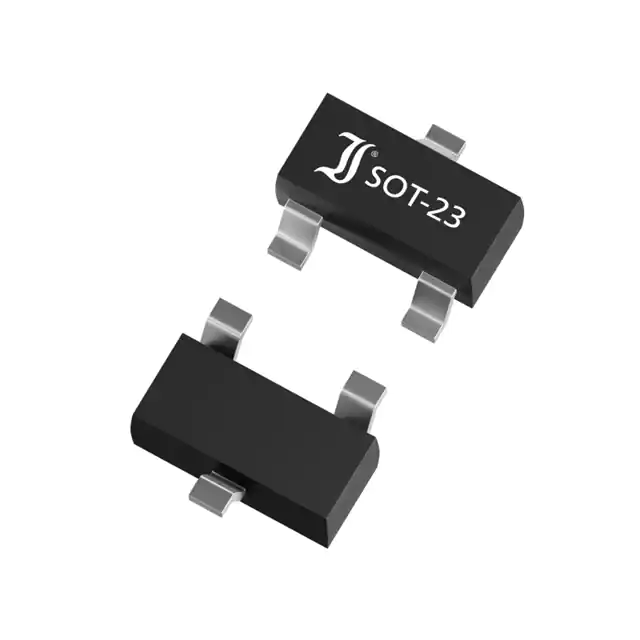

BZX84B33Zener, 33V, 0.3W, 2% |
3,151 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 80 Ohms | -50°C ~ 150°C (TJ) | 33 V | 50 nA @ 23.1 V | - | |||
|
MMS3Z18BGWZener, 18V, 0.3W, 2% |
3,022 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 45 Ohms | -50°C ~ 150°C (TJ) | 17.64 V | 100 nA @ 12.6 V | - | |||
|
|
MMS3Z5B6GWZener, 5.6V, 0.3W, 2% |
2,830 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 40 Ohms | -50°C ~ 150°C (TJ) | 5.49 V | 1 µA @ 2 V | - | |||
|
|
MMS3Z12BGWZener, 12V, 0.3W, 2% |
3,345 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 25 Ohms | -50°C ~ 150°C (TJ) | 11.76 V | 100 nA @ 8 V | - | |||
|
|
MMS3Z13BGWZener, 13V, 0.3W, 2% |
2,092 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 30 Ohms | -50°C ~ 150°C (TJ) | 12.74 V | 100 nA @ 8 V | - | |||
|
|
MMS3Z24BGWZener, 24V, 0.3W, 2% |
3,555 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 70 Ohms | -50°C ~ 150°C (TJ) | 23.52 V | 100 nA @ 16.8 V | - | |||
|
|
MMS3Z7B5GWZener, 7.5V, 0.3W, 2% |
2,424 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 15 Ohms | -50°C ~ 150°C (TJ) | 7.35 V | 1 µA @ 5 V | - | |||
|
|
MMS3Z16BGWZener, 16V, 0.3W, 2% |
2,872 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 40 Ohms | -50°C ~ 150°C (TJ) | 15.68 V | 100 nA @ 11.2 V | - | |||
|
|
MMS3Z3B3GWZener, 3.3V, 0.3W, 2% |
3,596 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 95 Ohms | -50°C ~ 150°C (TJ) | 3.23 V | 5 µA @ 1 V | - | |||
|
|
MMS3Z15BGWZener, 15V, 0.3W, 2% |
3,716 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 30 Ohms | -50°C ~ 150°C (TJ) | 14.7 V | 100 nA @ 10.5 V | - | |||
|
ZMM27HCDZener, 26V, 0.5W, 2% |
2,891 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2.5% | Active | 500 mW | Surface Mount | 45 Ohms | -50°C ~ 175°C (TJ) | 27 V | 200 nA @ 21 V | 1 V @ 100 mA | |||
|
BZT52C3V6-AQZener, 3.6V, 0.5W, 5% |
3,106 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | ±5% | Active | 500 mW | Surface Mount | 130 Ohms | -50°C ~ 150°C (TJ) | 3.6 V | 10 µA @ 1 V | - | ||
|
MMS3Z12BZener, 12V, 0.3W, 2% |
2,512 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | ±2% | Active | 300 mW | Surface Mount | 25 Ohms | -50°C ~ 150°C (TJ) | 12 V | 100 nA @ 8 V | - | |||
|
|
BZT52C5V6-AQZener, 5.6V, 0.5W, 5% |
2,299 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | ±5% | Active | 500 mW | Surface Mount | 80 Ohms | -50°C ~ 150°C (TJ) | 5.6 V | 1 µA @ 2.5 V | - | ||
|
BZX84C27-AQZener, 27V, 0.3W, 5% |
2,772 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | ±5% | Active | 300 mW | Surface Mount | 80 Ohms | -50°C ~ 150°C (TJ) | 27 V | 50 nA @ 18.9 V | - |
