Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N4246D MET 1A STD 400V |
3,335 | 15.96 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/286 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 400 V | 400 V | 1A (DC) | - | 1.2 V @ 1 A |
|

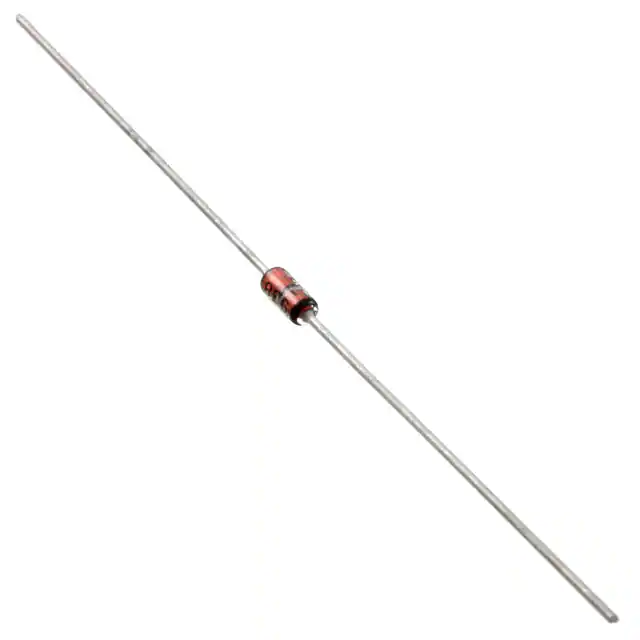

1N4500/TRSIGNAL/COMPUTER DIODE |
3,054 | 18.74 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/403 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 6 ns | - | - | - | -65°C ~ 175°C | 1.1 V @ 300 mA | |
|
|
MUR7060RDIODE GEN PURP REV 600V 70A DO5 |
3,264 | 19.82 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 75 ns | 25 µA @ 50 V | 600 V | 70A | -55°C ~ 150°C | 1.7 V @ 70 A | |
|
|
1N5833DIODE SCHOTTKY 30V 40A DO5 |
3,157 | 20.87 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 20 mA @ 10 V | 30 V | 40A | -65°C ~ 150°C | 550 mV @ 40 A | |
|
VS-6FL40S02DIODE GEN PURP 400V 6A DO203AA |
3,994 | 5.73 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 400 V | 400 V | 6A | -65°C ~ 150°C | 1.4 V @ 6 A | |
|
VS-8EWF02STRL-M3DIODE GEN PURP 200V 8A D-PAK |
2,497 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 200 ns | 100 µA @ 200 V | 200 V | 8A | -40°C ~ 150°C | 1.2 V @ 8 A | |
|
|
JAN1N4247D MET 1A STD 600V |
2,504 | 15.96 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/286 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 600 V | 600 V | 1A (DC) | - | 1.2 V @ 1 A |
|
1N6076/TRRECTIFIER UFR,FRR |
3,027 | 18.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 5 µA @ 50 V | 50 V | 1.3A | -65°C ~ 155°C | 1.76 V @ 18.8 A | |
|
|
JAN1N6642UBDIODE GEN PURP 75V 300MA UB |
3,626 | 19.88 |
RFQ |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 500 nA @ 75 V | 75 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA | |
|
|
1N5834DIODE SCHOTTKY 40V 40A DO5 |
3,050 | 20.87 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 20 mA @ 10 V | 40 V | 40A | -65°C ~ 150°C | 590 mV @ 40 A | |
|
|
VS-6FLR40S02DIODE GEN PURP 400V 6A DO203AA |
2,369 | 5.73 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 400 V | 400 V | 6A | -65°C ~ 150°C | 1.4 V @ 6 A | |
|
|
VS-8EWF02STR-M3DIODE GEN PURP 200V 8A D-PAK |
2,696 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 55 ns | 100 µA @ 200 V | 200 V | 8A | -40°C ~ 150°C | 1.2 V @ 8 A | |
|
|
JAN1N4248D MET 1A STD 800V |
2,373 | 15.96 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/286 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 800 V | 800 V | 1A (DC) | - | 1.2 V @ 1 A |
|
|
JAN1N5711UBSCHOTTKY DIODE |
3,776 | 18.83 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | - | -65°C ~ 150°C | 1 V @ 15 mA | |
|
|
MUR5005RDIODE GEN PURP REV 50V 50A DO5 |
3,761 | 19.88 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 75 ns | 10 µA @ 50 V | 50 V | 50A | -55°C ~ 150°C | 1 V @ 50 A | |
|
|
R3520RECTIFIER |
3,478 | 20.88 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
VS-16F100DIODE GEN PURP 1KV 16A DO203AA |
2,107 | 5.74 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 1000 V | 1000 V | 16A | -65°C ~ 175°C | 1.23 V @ 50 A | |
|
|
VS-8EWF02STRR-M3DIODE GEN PURP 200V 8A D-PAK |
2,103 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 55 ns | 100 µA @ 200 V | 200 V | 8A | -40°C ~ 150°C | 1.2 V @ 8 A | |
|
|
JAN1N4249D MET 1A STD 800V |
2,191 | 15.96 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/286 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 1 V | 1 V | 1A (DC) | - | 1.2 V @ 1 A |
|
|
JANTXV1N6628/TRRECTIFIER UFR,FRR |
2,645 | 18.84 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 660 V | 660 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A |
