Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N4248/TRRECTIFIER UFR,FRR |
3,844 | 9.00 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/286 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 5 µs | 1 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.3 V @ 3 A | |
|
JAN1N6624USDIODE GEN PURP 990V 1A D5A |
3,467 | 13.65 |
RFQ |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 10V, 1MHz | 50 ns | 500 nA @ 990 V | 990 V | 1A | -65°C ~ 150°C | 1.55 V @ 1 A | |
|

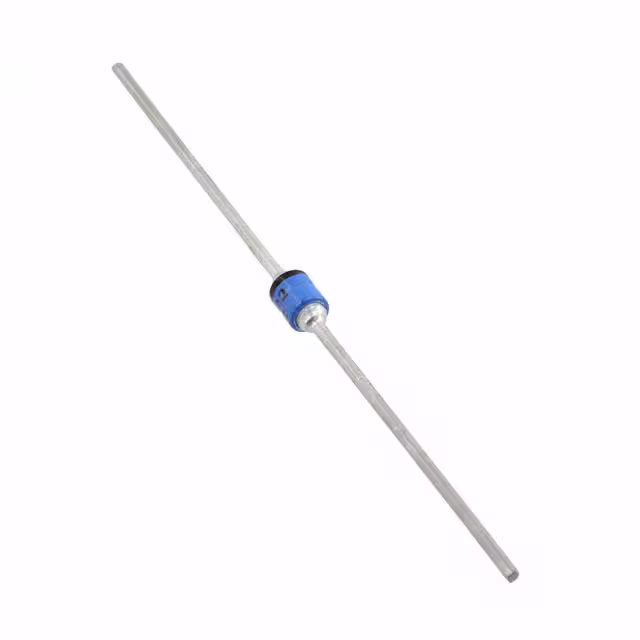

1N5822DIODE SCHOTTKY 40V 3A AXIAL |
3,805 | 13.02 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/620 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 40 V | 40 V | 3A | -65°C ~ 125°C | 500 mV @ 3 A |
|
HSM130GE3/TR13DIODE SCHOTTKY 1A 30V SMBG |
2,622 | 0.93 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N4531DIODE GEN PURP 75V 125MA DO34 |
3,697 | 2.03 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 20 ns | 500 nA @ 75 V | 75 V | 125mA | -65°C ~ 175°C | 1.2 V @ 100 mA | |
|
VS-70HFL20S02DIODE GEN PURP 200V 70A DO203AB |
2,620 | 11.42 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 100 µA @ 200 V | 200 V | 70A | -40°C ~ 125°C | 1.85 V @ 219.8 A | |
|
|
VS-71HF20DIODE GEN PURP 200V 70A DO203AB |
2,008 | 9.02 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 15 mA @ 200 V | 200 V | 70A | -65°C ~ 180°C | 1.35 V @ 220 A | |
|
|
JAN1N6625UDIODE GEN PURP 1KV 1A A-MELF |
2,178 | 13.65 |
RFQ |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 1 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.75 V @ 1 A | |
|
|
VS-85HFLR60S02DIODE GEN PURP 600V 85A DO203AB |
2,867 | 13.06 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 100 µA @ 600 V | 600 V | 85A | -40°C ~ 125°C | 1.75 V @ 266.9 A | |
|
|
HSM140GE3/TR13DIODE SCHOTTKY 1A 40V SMBG |
3,802 | 0.93 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N4532DIODE GEN PURP 50V 125MA DO34 |
2,410 | 2.03 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 30 ns | 100 nA @ 50 V | 50 V | 125mA | -55°C ~ 175°C | 1 V @ 10 mA | |
|
|
VS-70HFL20S05DIODE GEN PURP 200V 70A DO203AB |
2,644 | 11.42 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 200 V | 200 V | 70A | -40°C ~ 125°C | 1.85 V @ 219.8 A | |
|
|
VS-71HFR20DIODE GEN PURP 200V 70A DO203AB |
3,989 | 9.02 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 15 mA @ 200 V | 200 V | 70A | -65°C ~ 180°C | 1.35 V @ 220 A | |
|
|
JAN1N6625USDIODE GEN PURP 1.1KV 1A D5A |
2,011 | 13.65 |
RFQ |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 10V, 1MHz | 60 ns | 1 µA @ 1100 V | 1100 V | 1A | -65°C ~ 150°C | 1.75 V @ 1 A | |
|
|
1N6538/TRRECTIFIER UFR,FRR |
2,092 | 13.07 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
HSM150GE3/TR13DIODE SCHOTTKY 50V 1A DO215AA |
2,423 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 50 V | 50 V | 1A | -55°C ~ 175°C | 690 mV @ 1 A | |
|
|
1N4534DIODE GEN PURP 50V 150MA DO34 |
3,842 | 2.03 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 4 ns | 50 nA @ 50 V | 50 V | 150mA | -65°C ~ 175°C | 880 mV @ 20 mA | |
|
|
FR20KR05DIODE GEN PURP REV 800V 20A DO5 |
3,939 | 11.44 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 800 V | 800 V | 20A | -40°C ~ 125°C | 1 V @ 20 A | |
|
|
VS-87HF120DIODE GEN PURP 1.2KV 85A DO203AB |
2,169 | 9.04 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1200 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
JAN1N6626UDIODE GEN PURP 200V 1.75A E-MELF |
3,030 | 13.65 |
RFQ |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 2 µA @ 200 V | 200 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A |
