Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N5419US/TRRECTIFIER UFR,FRR |
2,339 | 8.33 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 250 ns | 1 µA @ 500 V | 500 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
VS-10ETF12S-M3DIODE GEN PURP 1.2KV 10A D2PAK |
2,262 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 310 ns | 100 µA @ 1200 V | 1200 V | 10A | -40°C ~ 150°C | 1.33 V @ 10 A | |
|
JANTX1N3595USDIODE GEN PURP 200MA B-MELF |
2,291 | 12.50 |
RFQ |
Bulk | Military, MIL-S-19500-241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 3 µs | 1 nA @ 125 V | - | 200mA (DC) | -65°C ~ 150°C | 1 V @ 200 mA | |
|
1N6620/TRRECTIFIER UFR,FRR |
2,670 | 7.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 220 V | 220 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A | |
|
|
UGB8JTHE3_A/PDIODE GEN PURP 600V 8A TO263AB |
2,476 | 0.89 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 30 µA @ 600 V | 600 V | 8A | -55°C ~ 150°C | 1.75 V @ 8 A |
|
VS-25F80MDIODE GEN PURP 800V 25A DO203AA |
2,370 | 8.87 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 800 V | 25A | -65°C ~ 175°C | 1.3 V @ 78 A | |
|
|
JAN1N5418US/TRRECTIFIER UFR,FRR |
2,423 | 8.33 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 1 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
VS-10TQ045SHM3DIODE SCHOTTKY 45V 10A D2PAK |
3,005 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 900pF @ 5V, 1MHz | - | 2 mA @ 45 V | 45 V | 10A | -55°C ~ 175°C | 570 mV @ 10 A |
|
JANTX1N5802D MET 2.5A SFST 50V HR 2FFX |
3,755 | 12.50 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 5V, 1MHz | 25 ns | 1 µA @ 50 V | 50 V | 3.3A | -65°C ~ 175°C | 875 mV @ 1 A |
|
|
1N6620E3RECTIFIER UFR,FRR |
3,762 | 7.10 |
RFQ |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 500 nA @ 200 V | 200 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A | |
|
|
VB30120S-M3/8WDIODE SCHOTTKY 30A 120V TO-263AB |
3,544 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 120 V | 120 V | 30A | -40°C ~ 150°C | 1.1 V @ 30 A | |
|
|
VS-25FR100MDIODE GEN PURP 1KV 25A DO203AA |
2,433 | 8.87 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1000 V | 25A | -65°C ~ 175°C | 1.3 V @ 78 A | |
|

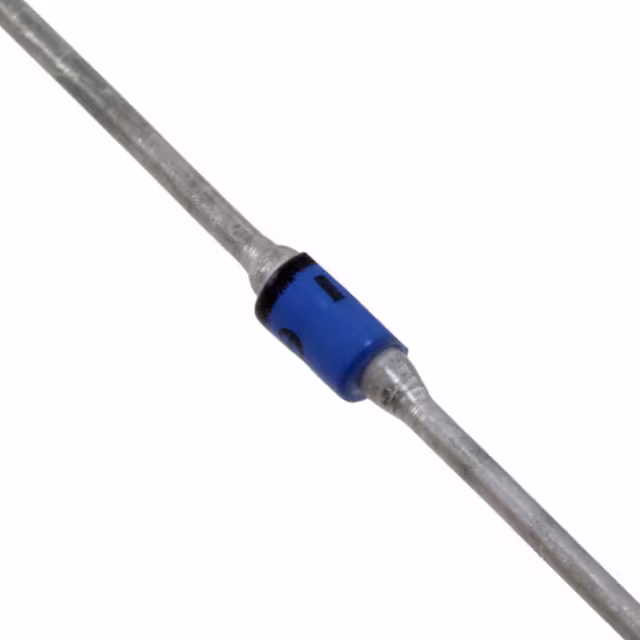

JANTXV1N5614DIODE GEN PURP 200V 1A AXIAL |
3,534 | 8.40 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
|
VS-8ETH03STRLHM3FREDS - D2PAK |
2,372 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 20 µA @ 300 V | 300 V | 8A | -55°C ~ 175°C | 1.25 V @ 8 A |
|
|
JANTX1N5804D MET 2.5A SFST 100V HR |
3,259 | 12.50 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 5V, 1MHz | 25 ns | 1 µA @ 100 V | 100 V | 3.3A | -65°C ~ 175°C | 875 mV @ 1 A |
|
|
CD5820DIODE SMALL-SIGNAL SCHOTTKY |
3,179 | 7.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 20 V | 20 V | 3A | -65°C ~ 125°C | 550 mV @ 3 A | |
|
|
VB30120S-M3/4WDIODE SCHOTTKY 30A 120V TO-263AB |
2,117 | 0.89 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 120 V | 120 V | 30A | -40°C ~ 150°C | 1.1 V @ 30 A | |
|
|
VS-25FR10MDIODE GEN PURP 100V 25A DO203AA |
3,046 | 8.87 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 100 V | 25A | -65°C ~ 175°C | 1.3 V @ 78 A | |
|
JANTX1N5811US/TRRECTIFIER UFR,FRR |
2,882 | 8.40 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 150 V | 150 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | |
|
STTH802GDIODE GEN PURP 200V 8A D2PAK |
2,808 | 0.97 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 30 ns | 6 µA @ 200 V | 200 V | 8A | 175°C (Max) | 1.05 V @ 8 A |
