Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N647-1/TRSIGNAL/COMPUTER DIODE |
3,165 | 1.65 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 50 nA @ 400 V | 400 V | 400mA | -65°C ~ 175°C | 1 V @ 400 mA | ||
|
1N5618/TRSTD RECTIFIER |
2,627 | 3.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|
DPG30I300HADIODE GEN PURP 300V 30A TO247 |
3,639 | 2.91 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 1 µA @ 300 V | 300 V | 30A | -55°C ~ 175°C | 1.34 V @ 30 A |
|
VF20150SG-M3/4WDIODE SCHOTTKY 20A 150V ITO220AB |
2,314 | 0.58 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 150 V | 150 V | 20A | -55°C ~ 150°C | 1.6 V @ 20 A | |
|
|
1N5712-1/TRDIODE SMALL-SIGNAL SCHOTTKY |
2,653 | 4.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 2pF @ 0V, 1MHz | - | 150 nA @ 16 V | 20 V | 75mA | -65°C ~ 150°C | 1 V @ 35 mA |
.JPG)
|
SJPL-F4VDIODE GEN PURP 400V 1.5A SJP |
2,325 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 400 V | 400 V | 1.5A | -40°C ~ 150°C | 1.3 V @ 1.5 A | |
|
DURF1060DIODE GEN PURP 600V 10A ITO220AC |
3,665 | 1.66 |
RFQ |
Datasheet |
Tube | DUR | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 32 ns | 10 µA @ 600 V | 600 V | 10A | -55°C ~ 150°C | 2.2 V @ 10 A |
|
|
1N5614/TRSTD RECTIFIER |
3,351 | 3.80 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|
VS-50EPU12LHN3DIODE GEN PURP 1.2KV 50A TO247AD |
3,757 | 2.92 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 262 ns | 330 µA @ 1200 V | 1200 V | 50A | -55°C ~ 175°C | 2.55 V @ 50 A |
|
V10PL45-M3/87ADIODE SCHOTTKY 45V 6A TO277A |
2,735 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 5 mA @ 45 V | 45 V | 6A | -40°C ~ 150°C | 520 mV @ 10 A | |
|
|
1N5617E3RECTIFIER |
2,403 | 4.22 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 12V, 1MHz | 150 ns | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 800 mV @ 3 A | |
|
|
SJPL-F4DIODE GEN PURP 400V 1.5A SJP |
3,808 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 400 V | 400 V | 1.5A | -40°C ~ 150°C | 1.3 V @ 1.5 A | |
|
APT15DQ120BGDIODE GEN PURP 1.2KV 15A TO247 |
3,833 | 1.67 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 240 ns | 100 µA @ 1200 V | 1200 V | 15A | -55°C ~ 175°C | 3.3 V @ 15 A | |
|
|
DPG30I600AHAPOWER DIODE DISCRETES-FRED TO-24 |
3,739 | 3.81 |
RFQ |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
CDLL4148DIODE GEN PURP 75V 200MA DO213AA |
3,197 | 2.93 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 20 ns | 500 nA @ 75 V | 75 V | 200mA | -65°C ~ 175°C | 1 V @ 200 mA | |
|
VIT3060G-E3/4WDIODE SCHOTTKY 60V 15A TO262AA |
2,766 | 0.58 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 850 µA @ 60 V | 60 V | 15A | -55°C ~ 150°C | 730 mV @ 15 A | |
|

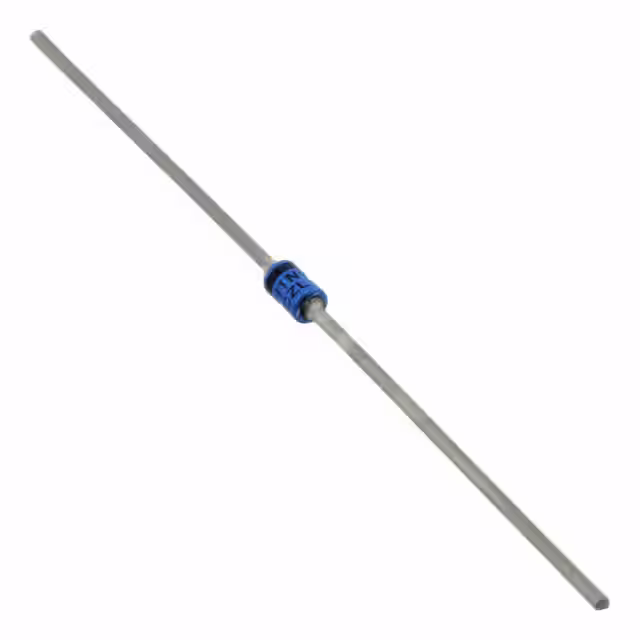

JAN1N3613DIODE GEN PURP 600V 1A AXIAL |
2,240 | 4.23 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/228 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 300 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
DST580S-ADIODE SCHOTTKY 5A 80V TO277B |
2,904 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 245pF @ 5V, 1MHz | - | 400 µA @ 80 V | 80 V | 5A | -55°C ~ 150°C | 720 mV @ 5 A |
|
|
1N647/TRSIGNAL/COMPUTER DIODE |
3,798 | 1.67 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | - | 400 V | - | - | 1 V @ 400 mA | ||
|
|
DPF30I600AHAPOWER DIODE DISCRETES-FRED TO-24 |
2,279 | 3.81 |
RFQ |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - |
