| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

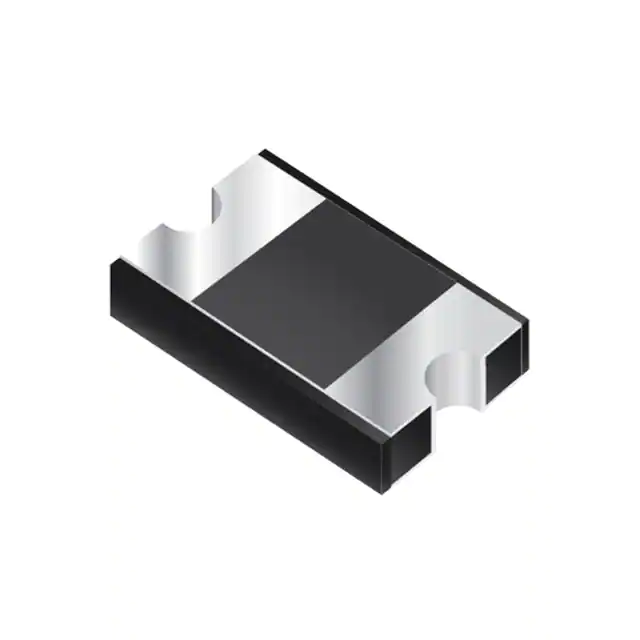

CD214B-S2KDIO RECT |
3,043 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 14pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 2A | -65°C ~ 175°C | 1 V @ 2 A | |
|
CD214B-S2MDIO RECT |
2,068 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | CD214B-S2x | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 14pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 2A | -65°C ~ 175°C | 1 V @ 2 A |
|
CD214B-FS2GDIO RECT VRRM 400V 2A SMB |
3,390 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 19pF @ 4V, 1MHz | 35 ns | 5 µA @ 400 V | 400 V | 2A | -65°C ~ 175°C | 1.25 V @ 2 A | |
|
|
CD214B-FS2JDIO RECT VRRM 600V 2A SMB |
2,001 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 19pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 2A | -65°C ~ 175°C | 1.7 V @ 2 A | |
|
|
CD214B-FS3DDIO RECT VRRM 200V 3A SMB |
2,414 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 19pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 950 mV @ 3 A | |
|
CD1408-F1200DIODE GEN PURP 200V 1A 1408 |
2,581 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 300 ns | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A | |
|
|
CD1408-F1600DIODE GEN PURP 600V 1A 1408 |
2,315 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 300 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A | |
|
|
CD1408-F1800DIODE GEN PURP 800V 1A 1408 |
3,440 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 300 ns | 5 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A | |
|
|
CD214A-RS1DDIO RECT |
2,671 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8.2pF @ 4V, 1MHz | 150 ns | 5 µA @ 200 V | 200 V | 1A | - | 130 V @ 1 A | |
|
|
CD214A-RS1GDIO RECT |
3,189 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | CD214A-RS1x | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8.2pF @ 4V, 1MHz | 150 ns | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
|
|
CD214A-RS1JDIO RECT |
3,960 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | CD214A-RS1x | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8.2pF @ 4V, 1MHz | 250 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
|
CD214C-S3DDIO RECT VRRM 200V 3A SMC |
2,133 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 1 V @ 3 A | |
|
|
CD214C-S3GDIO RECT VRRM 400V 3A SMC |
2,263 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1 V @ 3 A | |
|
|
CD214B-FS2KDIO RECT VRRM 800V 2A SMB |
2,598 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 19pF @ 4V, 1MHz | 35 ns | 5 µA @ 800 V | 800 V | 2A | -65°C ~ 175°C | 2.2 V @ 2 A | |
|
|
CD123D-B120RDIODE SCHOTTKY 20V 1A SOD123 |
3,510 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 200 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 500 mV @ 1 A | |
|
|
CD214C-S3JDIO RECT VRRM 600V 3A SMC |
2,956 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1 V @ 3 A | |
|
|
CD214C-S3KDIO RECT VRRM 800V 3A SMC |
3,963 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 800 V | 800 V | 3A | -65°C ~ 175°C | 1 V @ 3 A | |
|
|
CD214C-S3MDIO RECT VRRM 1000V 3A SMC |
3,892 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 1000 V | 1000 V | 3A | -65°C ~ 175°C | 1 V @ 3 A | |
|
|
CD214C-F3150DIODE GEN PURPOSE 100V 3A SMC |
2,138 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 10 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 920 mV @ 3 A | |
|
CD214B-B340RDIO SBD VRRM 40V 3A SMB |
3,981 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 250pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 125°C | 500 mV @ 3 A |
