| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EGP10FRECTIFIER DIODE, 1A, 300V, DO-41 |
25,000 | 0.11 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 300 V | 300 V | 1A | -65°C ~ 150°C | 1.25 V @ 1 A | |
|

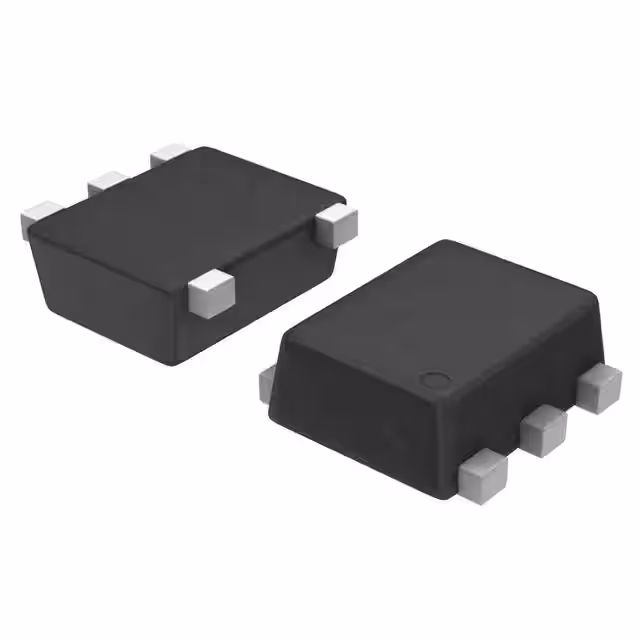

SBE808-TL-E15 V, 1 A, LOW IR SCHOTTKY BARRI |
12,000 | 0.11 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
SURS8205T3G-VF01SURS8205 - UFR 2A SERIES SURF. M |
5,000 | 0.11 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 2 µA @ 50 V | 50 V | 2A | -60°C ~ 175°C | 940 mV @ 2 A |
|
NSR05F30NRT5GSCHOTTKY BARRIER DIODE |
40,000 | 0.08 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 75 µA @ 30 V | 30 V | 500mA (DC) | 150°C (Max) | 430 mV @ 500 mA | |
|
PMEG4010EH/DG/B2115RECTIFIER DIODE, SCHOTTKY |
30,000 | 0.08 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
NSR20406NXT5GNSR20406N - SCHOTTKY BARRIER DIO |
30,140 | 0.12 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
ES1DAFRECTIFIER DIODE |
30,000 | 0.12 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 34 ns | 1 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 950 mV @ 1 A |
|
MBRS140RECTIFIER, SCHOTTKY, 1A, 40V |
2,646 | 0.08 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 40 V | 40 V | 1A | -65°C ~ 125°C | 600 mV @ 1 A | |
|
NSR15405NXT5GNSR15405N - SCHOTTKY BARRIER DIO |
15,000 | 0.12 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 85pF @ 2V, 1MHz | 33 ns | 75 µA @ 40 V | 40 V | 1.5A (DC) | 150°C (Max) | 590 mV @ 1.5 A | |
|
|
FSV330AFRECTIFIER DIODE, SCHOTTKY, 3A, 3 |
5,698 | 0.12 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 485pF @ 0V, 1MHz | 12.5 ns | 100 µA @ 30 V | 30 V | 3A | -55°C ~ 150°C | 500 mV @ 3 A | |
|
|
PMEG40T50EP,115PMEG40T50EP - 40V, 5A LOW VF TRE |
3,000 | 0.12 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
S3MRECTIFIER DIODE, 3A, 1000V, DO-2 |
52,404 | 0.13 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 1 V | 1 V | 3A | -50°C ~ 150°C | 1.15 V @ 3 A | |
|
|
RGF1ARECTIFIER DIODE, 1A, 50V, DO-214 |
34,845 | 0.13 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8.5pF @ 4V, 1MHz | 150 ns | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A | |
|
|
RGF1BRECTIFIER DIODE, 1A, 100V, DO-21 |
20,437 | 0.13 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8.5pF @ 4V, 1MHz | 150 ns | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A | |
|
NRVTS360ETFSTAGNRVTS360 - TRENCH SCHOTTKY RECTI |
34,000 | 0.14 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 12 µA @ 60 V | 60 V | 3A | -65°C ~ 175°C | 900 mV @ 6 A |
|
PMEG045V050EPDAZNEXPERIA PMEG045V050EPD - 45 V, |
960,000 | 0.15 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 580pF @ 1V, 1MHz | 12 ns | 300 µA @ 45 V | 45 V | 5A | 175°C (Max) | 490 mV @ 5 A |
|
HSM123JTR-EHSM123 - RECTIFIER DIODE, 2 ELEM |
60,000 | 0.15 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
PMEG045T030EPD,146NEXPERIA PMEG045T030EPD - RECTIF |
30,000 | 0.15 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
RD0106T-HPLANAR ULTRAFAST RECTIFIER, FAST |
24,500 | 0.15 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 10 µA @ 600 V | 600 V | 1A | 150°C (Max) | 1.3 V @ 1 A | |
|
|
PMEG045V050EPDZNEXPERIA PMEG045V050EPD - 45 V, |
12,000 | 0.15 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 580pF @ 1V, 1MHz | 19 ns | 300 µA @ 45 V | 45 V | 5A | 175°C (Max) | 490 mV @ 5 A |
