| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSV12120VDIODE SCHOTTKY 120V 12A TO277-3 |
2,657 | 1.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 25 µA @ 120 V | 120 V | 12A | -55°C ~ 150°C | 790 mV @ 12 A | |
|
|
FSV1060VDIODE SCHOTTKY 60V 10A TO277-3 |
2,103 | 1.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 550pF @ 4V, 1MHz | - | 220 µA @ 60 V | 60 V | 10A | -55°C ~ 150°C | 520 mV @ 10 A | |
|
MUR420GDIODE GEN PURP 200V 4A DO201AD |
2,401 | 0.66 |
RFQ |
Datasheet |
Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 5 µA @ 200 V | 200 V | 4A | -65°C ~ 175°C | 890 mV @ 4 A |
|
|
FSV20100VDIODE SCHOTTKY 100V 20A TO277-3 |
19,920 | 1.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 80 µA @ 100 V | 100 V | 20A | -55°C ~ 150°C | 660 mV @ 20 A | |
|
|
FSV20150VDIODE SCHOTTKY 150V 20A TO277-3 |
2,594 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 30 µA @ 150 V | 150 V | 20A | -55°C ~ 150°C | 840 mV @ 20 A | |
|
|
FSV20120VDIODE SCHOTTKY 120V 20A TO277-3 |
3,739 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 35 µA @ 120 V | 120 V | 20A | -55°C ~ 150°C | 790 mV @ 20 A | |
|
FFB20UP20STMDIODE GEN PURP 200V 20A D2PAK |
2,149 | 2.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 45 ns | 100 µA @ 200 V | 200 V | 20A | -65°C ~ 150°C | 1.15 V @ 20 A | |
|
MBRB4030T4GDIODE SCHOTTKY 30V 40A D2PAK |
16,967 | 3.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 350 µA @ 30 V | 30 V | 40A | -65°C ~ 175°C | 550 mV @ 40 A |
|
MBRB40250TGDIODE SCHOTTKY 250V 40A D2PAK |
3,700 | 2.52 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 5V, 1MHz | 35 ns | 250 µA @ 250 V | 250 V | 40A | -65°C ~ 150°C | 970 mV @ 40 A |
|
FFSD10120ADIODE SCHOTTKY 1.2KV TO252 |
2,855 | 6.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 612pF @ 1V, 100kHz | 0 ns | 200 µA @ 1200 V | 1200 V | - | - | 1.75 V @ 10 A | |
|
ES1ADIODE GEN PURP 50V 1A SMA |
3,931 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 7pF @ 4V, 1MHz | 15 ns | 5 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 920 mV @ 1 A | |
.jpg)
|
NSR05F20NXT5GDIODE SCHOTTKY 20V 500MA 2DSN |
4,363,421 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 75 µA @ 20 V | 20 V | 500mA (DC) | 150°C (Max) | 430 mV @ 500 mA | |
|
NRVB0540T3GDIODE SCHOTTKY 40V 500MA SOD123 |
2,112 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 20 µA @ 40 V | 40 V | 500mA | -55°C ~ 150°C | 510 mV @ 500 mA | |
|
SS16T3GDIODE SCHOTTKY 60V 1A SMA |
3,905 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 60 V | 60 V | 1A | -55°C ~ 150°C | 720 mV @ 1 A | |
|
MBR120ESFT1GDIODE SCHOTTKY 20V 1A SOD123L |
3,255 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 10 µA @ 20 V | 20 V | 1A | -65°C ~ 150°C | 530 mV @ 1 A | |
|
|
ES1HDIODE GEN PURP 500V 1A SMA |
3,906 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 500 V | 500 V | 1A | 150°C (Max) | 1.7 V @ 1 A | |
|

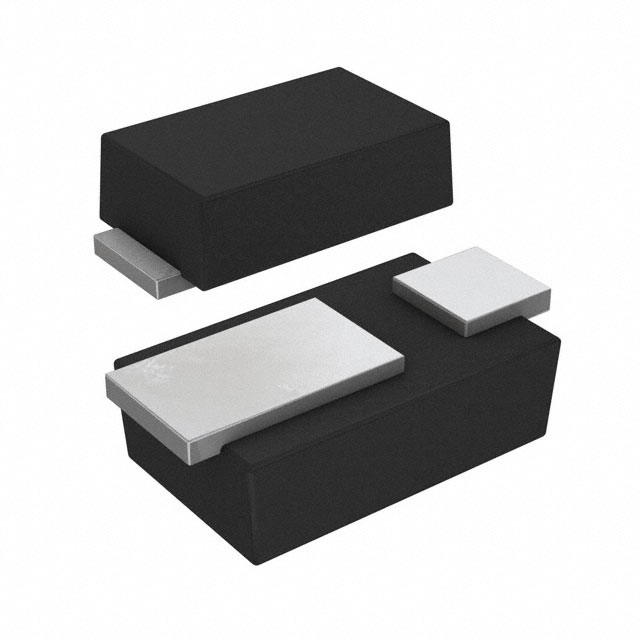

SS14HEDIODE SCHOTTKY 40V 1A SOD323HE |
3,832 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 55pF @ 4V, 1MHz | 5.6 ns | 50 µA @ 40 V | 40 V | 1A | -55°C ~ 150°C | 550 mV @ 1 A | |
|
|
SS16HEDIODE SCHOTTKY 60V 1A SOD323HE |
1,371 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 43pF @ 4V, 1MHz | 8.3 ns | 50 µA @ 60 V | 60 V | 1A | -55°C ~ 150°C | 680 mV @ 1 A |
|
MBR150RLGDIODE SCHOTTKY 50V 1A AXIAL |
10,045 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 750 mV @ 1 A | |
|
SS22T3GDIODE SCHOTTKY 20V 2A SMB |
68,155 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 40 V | 20 V | 2A | -55°C ~ 150°C | 500 mV @ 2 A |
