| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS16FADIODE SCHOTTKY 60V 1A SOD123FA |
2,915 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 55pF @ 4V, 1MHz | - | 400 µA @ 60 V | 60 V | 1A | -55°C ~ 150°C | 700 mV @ 1 A |
|
SBAS20LT1GDIODE GEN PURP 200V 200MA SOT23 |
2,975 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 150 V | 200 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
RGP10MDIODE GEN PURP 1000V 1A DO204AL |
3,454 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A | |
|
NSVR0340HT1GDIODE SCHOTTKY 40V 250MA SOD323 |
3,596 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 6pF @ 10V, 1MHz | 5 ns | 6 µA @ 40 V | 40 V | 250mA (DC) | -55°C ~ 150°C | 590 mV @ 200 mA |
|
|
NSVR0240HT1GDIODE SCHOTTKY 40V 250MA SOD323 |
2,982 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 4pF @ 5V, 1MHz | - | 10 µA @ 40 V | 40 V | 250mA (DC) | -55°C ~ 150°C | 710 mV @ 200 mA |
|
MMBD1401DIODE GP 200V 200MA SOT23-3 |
3,433 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 50 ns | 100 nA @ 175 V | 200 V | 200mA | 150°C (Max) | 1 V @ 200 mA | |
|
|
NSVBAS21HT3GDIODE GEN PURP 250V 200MA SOD323 |
3,023 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
MBR140ESFT1GDIODE SCHOTTKY 40V 1A SOD123FL |
2,908 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 30 µA @ 40 V | 40 V | 1A | -55°C ~ 175°C | 560 mV @ 1 A | |
|
|
RS1GFADIODE GP 400V 800MA SOD123FA |
2,306 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 250 ns | 5 µA @ 400 V | 400 V | 800mA | -55°C ~ 150°C | 1.3 V @ 800 mA |
|
NSR01L30P2T5GDIODE SCHOTTKY 30V 100MA SOD923 |
667,500 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 3 µA @ 30 V | 30 V | 100mA (DC) | 150°C (Max) | 530 mV @ 100 mA | |
|
US2DADIODE GEN PURP 200V 1.5A SMA |
2,752 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 50 ns | 5 µA @ 200 V | 200 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A |
|
|
US2GADIODE GEN PURP 400V 1.5A SMA |
2,779 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 1.5A | -55°C ~ 150°C | 1.3 V @ 1.5 A |
|
NRVS1MFLGENERAL PURP RECTIFIER |
3,773 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 1MHz | 2 µs | 1 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
NRVS1GFLGENERAL PURP RECTIFIER |
3,098 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 1MHz | 2 µs | 1 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
SBAS20HT1GDIODE GEN PURP 200V 200MA SOD323 |
3,946 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 1 µA @ 200 V | 200 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|

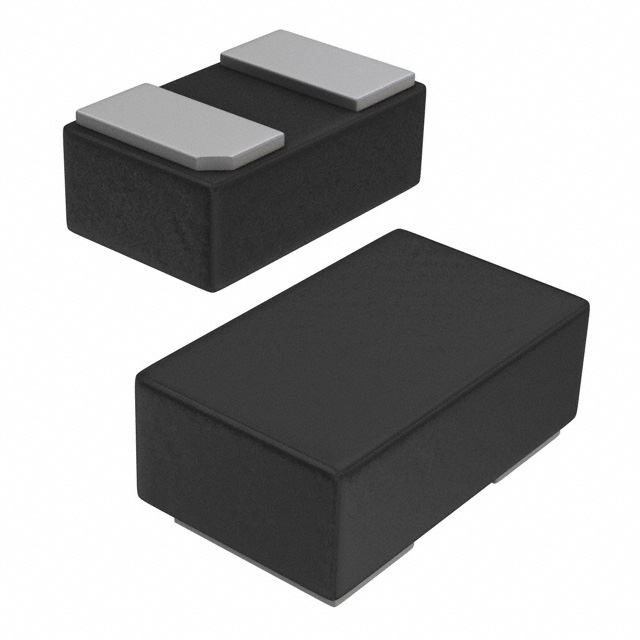

NSR05301MX4T5G01005_TRENCH_SCHOTTKY_30V |
2,246 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 19pF @ 5V, 1MHz | 11 ns | 100 µA @ 30 V | 30 V | 500mA (DC) | -55°C ~ 125°C | 800 mV @ 500 mA | |
|
|
NHP120SFT3GDIODE GEN PURP 200V 1A SOD123FL |
3,497 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
NRVBS310FADIODE SCHOTTKY 100V 3A SOD123-2 |
3,554 | 0.72 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 78pF @ 4V, 1MHz | 8 ns | 100 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 850 mV @ 3 A | |
|
|
RS1ADIODE GEN PURP 50V 1A SMA |
3,741 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
SBAS16WT1GDIODE GEN PURP 75V 200MA SC70 |
2,653 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 6 ns | 1 µA @ 75 V | 75 V | 200mA | -55°C ~ 150°C | 1.25 V @ 150 mA |
