| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR130LSFT1GDIODE SCHOTTKY 30V 1A SOD123L |
3,355 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 30 V | 30 V | 1A | -55°C ~ 125°C | 380 mV @ 1 A | |
|
|
MBR230LSFT1GDIODE SCHOTTKY 30V 2A SOD123L |
3,292 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 30 V | 30 V | 2A | -55°C ~ 125°C | 430 mV @ 2 A | |
|
SBAS116LT1GDIODE GEN PURP 75V 200MA SOT23-3 |
347,230 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 3 µs | 5 nA @ 75 V | 75 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 150 mA | |
|
NSVR0520V2T1GDIODE SCHOTTKY 20V 500MA SOD523 |
2,838 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 35pF @ 1V, 1MHz | 12 ns | 75 µA @ 20 V | 20 V | 500mA (DC) | -55°C ~ 125°C | 480 mV @ 500 mA | |
|
FFSB20120A-F0851200V 20A AUTO SIC SBD |
2,864 | 11.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 1220pF @ 1V, 100KHz | 0 ns | 200 µA @ 1200 V | 1200 V | 32A (DC) | -55°C ~ 175°C | 1.75 V @ 20 A |
|
NSR0170P2T5GDIODE SCHOTTKY 70V 70MA SOD923 |
2,716 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 3 µA @ 70 V | 70 V | 70mA (DC) | -55°C ~ 150°C | 730 mV @ 15 mA | |
|
S1AFLDIODE GP 50V 1A SOD123F |
2,053 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 1MHz | 2 µs | 1 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
NSVRB521S30T1GDIODE SCHOTTKY 30V 200MA SOD523 |
3,051 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 30 µA @ 10 V | 30 V | 200mA (DC) | -55°C ~ 125°C | 500 mV @ 200 mA | |
|
NSR10F20NXT5GDIODE SCHOTTKY 20V 1A 2DSN |
1,140,000 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 20 V | 20 V | 1A (DC) | 150°C (Max) | 450 mV @ 1 A | |
|
FFSH20120ADIODE SCHOTTKY 1.2KV 30A TO247-2 |
3,674 | 12.91 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1220pF @ 1V, 100KHz | 0 ns | 200 µA @ 1200 V | 1200 V | 30A (DC) | - | 1.75 V @ 20 A | |
|

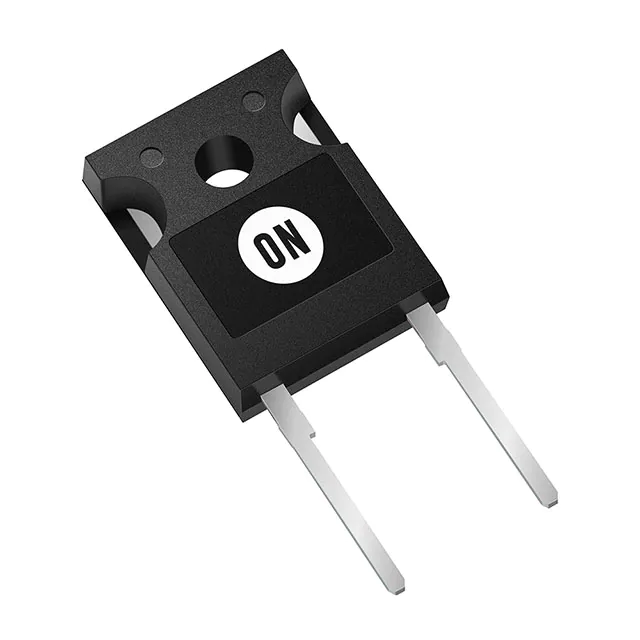

NDSH25170ASIC JBS 1700V 25A TO247 |
3,660 | 20.03 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 2025pF @ 1V, 100kHz | 0 ns | 40 µA @ 1700 V | 1700 V | 25A | -55°C ~ 175°C | 1.75 V @ 25 A | |
|
RS1MFPDIODE GP 1000V 1.2A SOD123HE |
2,926 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 0V, 1MHz | 300 ns | 5 µA @ 1000 V | 1000 V | 1.2A | -55°C ~ 150°C | 1.3 V @ 1.2 A |
|
|
FFSH50120A1200V 50A SIC SBD |
2,017 | 35.71 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 2560pF @ 1V, 100kHz | 0 ns | 200 µA @ 1200 V | 1200 V | 77A (DC) | -55°C ~ 175°C | - | |
|
|
S1GFLDIODE GP 400V 1A SOD123F |
3,382 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 1MHz | 2 µs | 1 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
MURA105T3GDIODE GEN PURP 50V 2A SMA |
3,460 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 2 µA @ 50 V | 50 V | 2A | -65°C ~ 175°C | 875 mV @ 1 A | |
|
1N914BTRDIODE GEN PURP 100V 200MA DO35 |
2,488 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 100 V | 200mA | -65°C ~ 175°C | 1 V @ 100 mA | |
|
BAS16LT3GDIODE GP 100V 200MA SOT23-3 |
2,279 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 6 ns | 1 µA @ 100 V | 100 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 150 mA | |
|
|
MMBD914LT3GDIODE GP 100V 200MA SOT23-3 |
3,971 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 100 V | 200mA (DC) | -55°C ~ 150°C | 1 V @ 10 mA | |
|
S2DDIODE GEN PURP 200V 2A SMB |
3,168 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 2 µs | 1 µA @ 200 V | 200 V | 2A | -65°C ~ 150°C | 1.15 V @ 2 A | |
|
NSR201MXT5GRF SCHOTTKY BARRIER DIODE |
850 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 0.15pF @ 0V, 1MHz | - | - | 2 V | 50mA (DC) | -55°C ~ 150°C | - |
