| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DST10100SDIODE SCHOTTKY 10A 100V TO-277B |
10,000 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 250 µA @ 100 V | 100 V | 10A | -55°C ~ 150°C | 700 mV @ 10 A | |
|
DST2045AXDIODE SCHOTTKY 20A 45V AXIAL |
3,899 | 1.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1.2 mA @ 45 V | 45 V | 20A | -55°C ~ 155°C | 580 mV @ 20 A | |
|
|
DST1040SDIODE SCHOTTKY 10A 40V TO-277B |
2,451 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 639pF @ 5V, 1MHz | - | 800 µA @ 45 V | 40 V | 10A | -55°C ~ 150°C | 570 mV @ 10 A | |
|
|
DST580SDIODE SCHOTTKY 5A 80V TO277B |
2,842 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 245pF @ 5V, 1MHz | - | 400 µA @ 80 V | 80 V | 5A | -55°C ~ 150°C | 720 mV @ 5 A | |
|
|
DST560S-ADIODE SCHOTTKY 60V 5A TO277B |
3,840 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 314pF @ 5V, 1MHz | - | 700 µA @ 60 V | 60 V | 5A | -55°C ~ 150°C | 750 mV @ 5 A |
|
|
DST1040S-ADIODE SCHOTTKY 45V 10A TO277B |
3,963 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 656pF @ 5V, 1MHz | - | 800 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 570 mV @ 10 A |
|
|
DST1050S-ADIODE SCHOTTKY 50V 10A TO277B |
2,654 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.5 mA @ 50 V | 50 V | 10A | -55°C ~ 150°C | 550 mV @ 10 A |
|
DST5200DIODE SCHOTTKY 5A 200V TO-220AC |
3,616 | 0.93 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 150 µA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 900 mV @ 5 A | |
|
MBR6045WTDIODE SCHOTTKY 30A 45V TO247AD |
3,385 | 4.08 |
RFQ |
Datasheet |
Tube | MBR | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 1400pF @ 5V, 1MHz | - | 1 mA @ 45 V | 45 V | 30A | -55°C ~ 150°C | 650 mV @ 30 A |
|
D6025LTPDIODE GEN PURP 600V 15.9A TO220 |
3,450 | 3.06 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 µs | 10 µA @ 600 V | 600 V | 15.9A | -40°C ~ 125°C | - | |
|
|
D4025LTPDIODE GEN PURP 400V 15.9A TO220 |
2,931 | 2.89 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 µs | 10 µA @ 400 V | 400 V | 15.9A | -40°C ~ 125°C | - | |
|
D4015L56TPDIODE GEN PURP 400V 9.5A TO220 |
2,635 | 3.03 |
RFQ |
Datasheet |
Tube | Teccor® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 µs | 10 µA @ 400 V | 400 V | 9.5A | -40°C ~ 125°C | 1.6 V @ 9.5 A |
|
|
D6015LTPDIODE GEN PURP 600V 9.5A TO220 |
3,809 | 2.44 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 µs | 10 µA @ 600 V | 600 V | 9.5A | -40°C ~ 125°C | 1.6 V @ 9.5 A | |
|
LSIC2SD065D08A650V/8A SIC SBD?TO263-2LAEC-Q101 |
3,319 | 5.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Gen2 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | - | 0 ns | - | 650 V | 8A (DC) | - | 1.5 V @ 23 A |
|
D8015L56TPDIODE GEN PURP 800V 9.5A TO220 |
2,650 | 3.22 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 µs | 20 µA @ 800 V | 800 V | 9.5A | -40°C ~ 125°C | 1.6 V @ 15 A | |
|

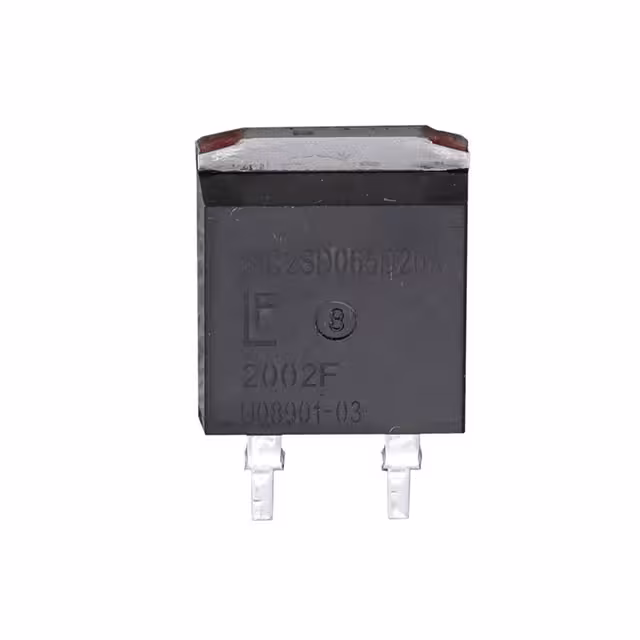

LSIC2SD065D20A650V/20A SIC SBD?TO263-2LAEC-Q10 |
2,218 | 10.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Gen2 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | - | 0 ns | - | 650 V | 20A (DC) | - | 1.5 V @ 45 A |
|
|
LSIC2SD120D20ASIC SCHOTTKY DIODE 1200V 20A TO2 |
2,320 | 19.63 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
LSIC2SD170B10DIODE SIC SCHOTTKY 1700V 10A |
3,745 | 14.69 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 757pF @ 1V, 1MHz | 0 ns | 100 µA @ 1700 V | 1700 V | 31A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A | |
|
|
LSIC2SD170B25DIODE SIC SCHOTTKY 1700V 25A |
2,586 | 32.31 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1860pF @ 1V, 1MHz | 0 ns | 100 µA @ 1700 V | 1700 V | 70A (DC) | -55°C ~ 175°C | 1.8 V @ 25 A | |
|
DURD560ADIODE GEN PURP 600V 5A TO252 |
3,419 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DUR | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 600 V | 600 V | 5A | -55°C ~ 150°C | 1.7 V @ 5 A |
