Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDM1A40CP3-7DIODE SCHOTTKY 40V 1A DSN1006-2 |
3,235 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 35pF @ 4V, 1MHz | - | 75 µA @ 40 V | 40 V | 1A | -55°C ~ 150°C | 560 mV @ 1 A | |
|

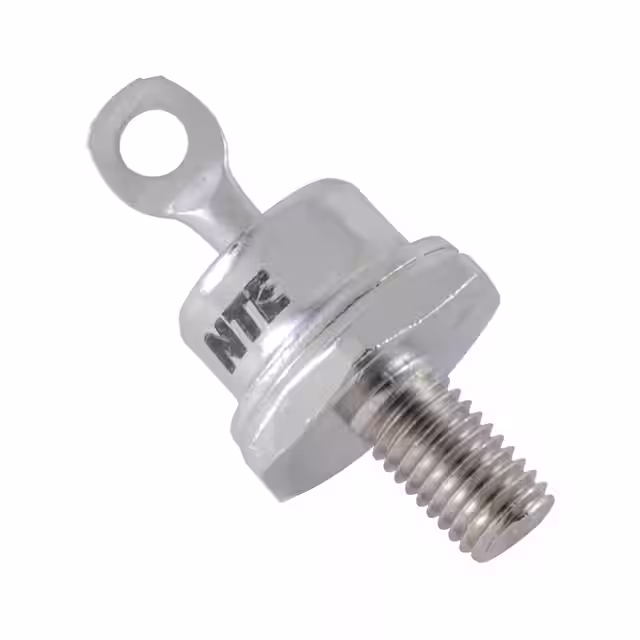

NTE6049R-50PRV 70A ANODE CASE |
3,659 | 9.33 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 2 mA @ 50 V | 50 V | 70A | -65°C ~ 190°C | 1.25 V @ 20 mA | |
|
SR206HR0GDIODE SCHOTTKY 60V 2A DO204AC |
3,658 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 2A | -55°C ~ 150°C | 700 mV @ 2 A |
|
BAV201-GS08DIODE GEN PURP 100V 250MA SOD80 |
2,585 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 100 V | 100 V | 250mA (DC) | 150°C (Max) | 1 V @ 100 mA |
|
|
SDT3A45SAF-13SCHOTTKY RECTIFIER SMAF T&R 10K |
3,953 | 0.09 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
S1MFPDIODE GP 1000V 1.2A SOD123HE |
2,008 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 0V, 1MHz | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1.2A | -55°C ~ 150°C | 1.3 V @ 1.2 A |
|
SK115BHM4GDIODE SCHOTTKY 150V 1A DO214AA |
2,183 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 150 V | 150 V | 1A | -55°C ~ 150°C | 950 mV @ 3 A |
|
SCS210KGCDIODE SCHOTTKY 1.2KV 10A TO220AC |
2,889 | 9.40 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 550pF @ 1V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 10A (DC) | 175°C (Max) | 1.6 V @ 10 A | |
|
VS-20MQ100HM3/5ATDIODE SCHOTTKY 100V 2A DO214AC |
3,897 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 38pF @ 10V, 1MHz | - | 100 µA @ 100 V | 100 V | 2A | -55°C ~ 150°C | 910 mV @ 2 A |
|
LL4150-M-08DIODE GEN PURP 50V 600MA SOD80 |
2,818 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2.5pF @ 0V, 1MHz | 4 ns | 100 nA @ 50 V | 50 V | 600mA | 175°C (Max) | 1 V @ 200 mA |
|
UF4006HR0GDIODE GEN PURP 800V 1A DO204AL |
2,398 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 17pF @ 4V, 1MHz | 75 ns | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A |
|
S1BHM2GDIODE GEN PURP 100V 1A DO214AC |
3,535 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 12pF @ 4V, 1MHz | 1.5 µs | 1 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 1.1 V @ 1 A |
|
|
SK310BHM4GDIODE SCHOTTKY 100V 3A DO214AA |
2,484 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 850 mV @ 3 A |
|
NTE5893R-50PRV 16A ANODE CASE |
2,621 | 9.43 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 12 mA @ 50 V | 50 V | 16A | -65°C ~ 175°C | 1.23 V @ 50 A | |
|
|
SR210 R0GDIODE SCHOTTKY 100V 2A DO204AC |
3,814 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 100 V | 100 V | 2A | -55°C ~ 150°C | 850 mV @ 2 A | |
|
|
LL4151-M-08DIODE GEN PURP 50V 300MA SOD80 |
3,618 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 50 nA @ 50 V | 50 V | 300mA | 175°C (Max) | 1 V @ 50 mA |
|
|
UF4007HR0GDIODE GEN PURP 1A DO204AL |
2,648 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 17pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | - | 1A | -55°C ~ 150°C | 1.7 V @ 1 A |
|
NRVS1AFLGENERAL PURP RECTIFIER |
2,387 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 1MHz | 2 µs | 1 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
SK33BHM4GDIODE SCHOTTKY 30V 3A DO214AA |
3,991 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 30 V | 30 V | 3A | -55°C ~ 125°C | 500 mV @ 3 A |
|

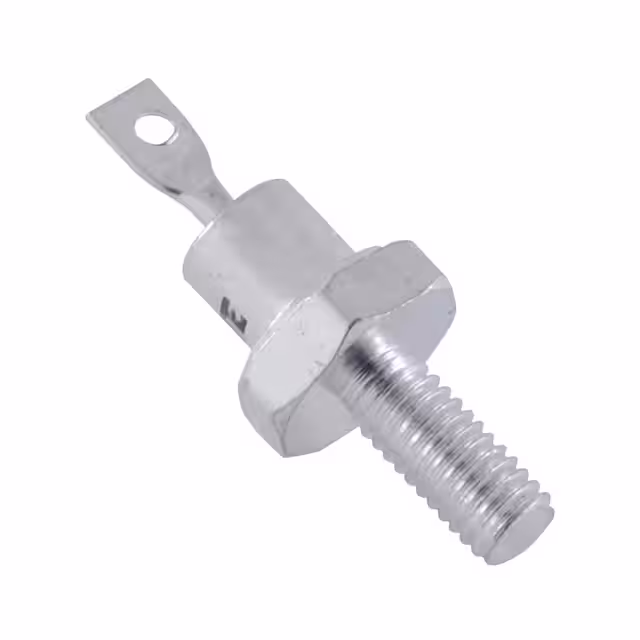

NTE5872R-100PRV 12A CATH CASE |
2,111 | 9.43 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 12 mA @ 100 V | 100 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A |
