Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAV19WS-G3-08DIODE GEN PURP 100V 250MA SOD323 |
3,696 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 100 V | 100 V | 250mA (DC) | 150°C (Max) | 1.25 V @ 200 mA | |
|

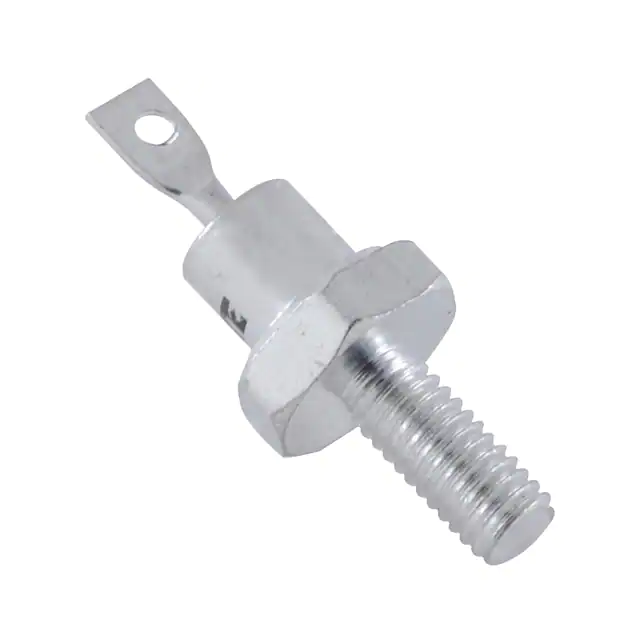

NTE5830R-50 PRV 3A CATH CASE |
2,571 | 4.37 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 50 V | 50 V | 3A | -65°C ~ 175°C | 1.2 V @ 3 A | |
|
RB491D_R1_00001SCHOTTKY BARRIER DIODE |
3,960 | 0.29 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 450 mV @ 1 A | ||
|
RL1N1400FDIODE GEN PURP 1400V 1A A405 |
2,712 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 300 ns | 5 µA @ 1400 V | 1400 V | 1A | -55°C ~ 150°C | 1.8 V @ 500 mA | |
|
|
ES1GWF-HFRECTIFIER SUPER FAST RECOVERY 40 |
3,678 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|
BAS21W RVGDIODE GEN PURP 250V 200MA SOT323 |
2,257 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 250 V | 250 V | 200mA | -55°C ~ 150°C | 1.25 V @ 100 mA | |
|
BAV20W-G3-08DIODE GEN PURP 150V 250MA SOD123 |
2,249 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 150 V | 150 V | 250mA (DC) | 150°C (Max) | 1.25 V @ 200 mA | |
|
DSEP30-06BDIODE GP 600V 30A ISOPLUS247 |
2,474 | 4.49 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 250 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 2.51 V @ 30 A |
|
GS1508FL_R1_00001SURFACE GENERAL PURPOSE RECTIFIE |
3,623 | 0.29 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | - | 1 µA @ 800 V | 800 V | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | ||
|
|
RL1N1800FDIODE GEN PURP 1800V 1A A405 |
2,693 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 300 ns | 5 µA @ 1800 V | 1800 V | 1A | -55°C ~ 150°C | 1.8 V @ 500 mA | |
|
|
ES1AWF-HFRECTIFIER SUPER FAST RECOVERY 50 |
2,595 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
XBW21P0204-GSWITCHING DIODE |
2,897 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 4 ns | 30 nA @ 25 V | 75 V | 150mA | 150°C | 1.25 V @ 150 mA | |
|
|
BAV20WS-G3-08DIODE GEN PURP 150V 250MA SOD323 |
2,699 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 150 V | 150 V | 250mA (DC) | 150°C (Max) | 1.25 V @ 200 mA | |
|
HVP10DIODE HV ASSEMBLIED 10KV .75A |
2,804 | 4.52 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 5 µA @ 10000 V | 10000 V | 750mA | -55°C ~ 150°C | 14 V @ 750 mA | |
|
|
RB411D_R1_00001SCHOTTKY BARRIER DIODE |
3,924 | 0.29 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 16pF @ 10V, 1MHz | - | 30 µA @ 10 V | 40 V | 500mA | 125°C | 500 mV @ 500 mA | ||
|
|
RL1N1500FDIODE GEN PURP 1500V 1A A405 |
3,206 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 300 ns | 5 µA @ 1500 V | 1500 V | 1A | -55°C ~ 150°C | 1.8 V @ 500 mA | |
|
|
ES1CWF-HFRECTIFIER SUPER FAST RECOVERY 15 |
2,258 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 150 V | 150 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
SJLW0.8A, 600V, STANDARD RECOVERY RE |
3,671 | 0.36 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 7pF @ 4V, 1MHz | - | 1 µA @ 600 V | 600 V | 800mA | -55°C ~ 150°C | 1.1 V @ 800 mA | ||
|
|
SS110F-HFDIODE SCHOTTKY 1A 100V SMAF |
3,581 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 200 µA @ 100 V | 100 V | 1A | -55°C ~ 125°C | 850 mV @ 1 A | |
|
|
HVP12DIODE GEN PURP 12000V 750MA HVP |
2,893 | 4.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 5 µA @ 12000 V | 12000 V | 750mA | -55°C ~ 150°C | 14 V @ 750 mA |
