Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DHG10I1800PADIODE GEN PURP 1.8KV 10A TO220AC |
2,600 | 2.65 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 3pF @ 900V, 1MHz | 300 ns | 50 µA @ 1800 V | 1800 V | 10A | -55°C ~ 150°C | 2.23 V @ 10 A | |
|
GSD2004W-G3-08DIODE GEN PURP 240V 225MA SOD123 |
2,560 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 240 V | 240 V | 225mA (DC) | 150°C (Max) | 1 V @ 100 mA | |
|
PG101R_R2_00001GLASS PASSIVATED JUNCTION FAST R |
3,001 | 0.31 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 12pF @ 4V, 1MHz | 150 ns | 1 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | ||
|
BAT81S-TAPDIODE SCHOTTKY 40V 30MA DO35 |
3,324 | 0.04 |
RFQ |
Datasheet |
Tape & Box (TB) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 1.6pF @ 1V, 1MHz | - | 200 nA @ 40 V | 40 V | 30mA (DC) | 125°C (Max) | 1 V @ 15 mA |
|
MUR30120B-BP30A/1200V FRED RECTIFIERS,TO-247 |
3,618 | 3.47 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 1200 V | 1200 V | 30A | -55°C ~ 175°C | 2.4 V @ 30 A | |
|
SS14-HFDIODE SCHOTTKY 40V 1A DO214AC SM |
2,119 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 300 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 550 mV @ 1 A | |
|
STTH30RQ06WDIODE GEN PURP 600V 30A DO247 |
2,347 | 2.68 |
RFQ |
Datasheet |
Tube | ECOPACK® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 55 ns | 40 µA @ 600 V | 600 V | 30A | 175°C (Max) | 2.95 V @ 30 A |
|
BAT43WTRDIODE SCHOTTKY 30V 200MA SOD123 |
3,741 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | - | 500 nA @ 25 V | 30 V | 200mA (DC) | -55°C ~ 150°C | 1 V @ 200 mA | |
|
|
SBA140CH_R1_00001EXTREME LOW VF SCHOTTKY RECTIFIE |
2,346 | 0.31 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 1A | -55°C ~ 150°C | 510 mV @ 1 A | ||
|
FDH3595DIODE GEN PURP 125V 200MA DO35 |
2,507 | 0.04 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 8pF @ 0V, 1MHz | - | 1 nA @ 125 V | 125 V | 200mA | 175°C (Max) | 1 V @ 200 mA | |
|
SCS206AGCDIODE SCHOTTKY 650V 6A TO220AC |
3,496 | 3.53 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 219pF @ 1V, 1MHz | 0 ns | 120 µA @ 600 V | 650 V | 6A (DC) | 175°C (Max) | 1.55 V @ 6 A | |
|
|
SS16-HFDIODE SCHOTTKY 60V 1A DO214AC SM |
3,958 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 300 µA @ 60 V | 60 V | 1A | -55°C ~ 125°C | 700 mV @ 1 A | |
|
STTH1210DYDIODE GEN PURP 1KV 12A TO220AC |
3,733 | 2.68 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 90 ns | 10 µA @ 1000 V | 1000 V | 12A | -40°C ~ 175°C | 2 V @ 12 A |
|

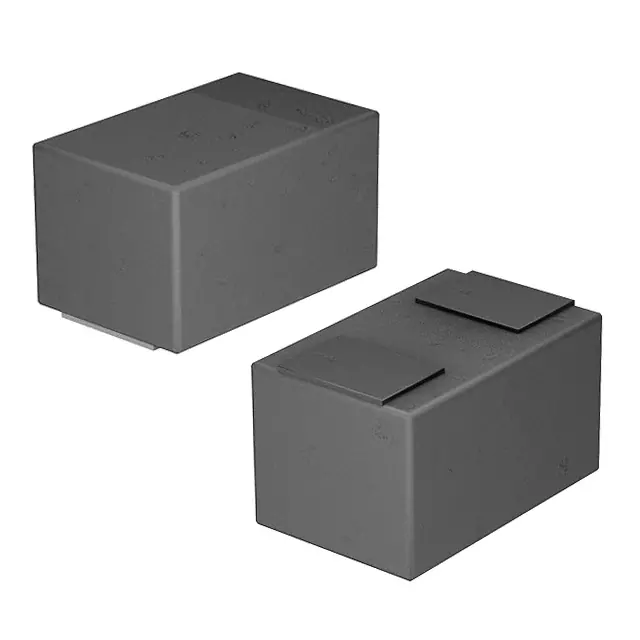

CDBER0140LDIODE SCHOTTKY 40V 100MA 0503 |
3,306 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 6pF @ 10V, 1MHz | - | 30 µA @ 10 V | 40 V | 100mA | 125°C (Max) | 550 mV @ 100 mA | |
|
|
SBA120CH_R1_00001EXTREME LOW VF SCHOTTKY RECTIFIE |
2,653 | 0.31 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 20 V | 20 V | 1A | -55°C ~ 150°C | 450 mV @ 1 A | ||
|
|
BAV19W-HE3-18DIODE GEN PURP 100V 250MA SOD123 |
3,346 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 100 V | 100 V | 250mA (DC) | 150°C (Max) | 1.25 V @ 200 mA |
|
|
BYV60W-600PQDIODE GEN PURP 600V 60A TO247-2 |
2,774 | 3.53 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 55 ns | 10 µA @ 600 V | 600 V | 60A | 175°C (Max) | 2 V @ 60 A | |
|
BAV19WS RRGDIODE GEN PURP 120V 200MA SOD323 |
3,829 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 100 V | 120 V | 200mA | -65°C ~ 150°C | 1.25 V @ 200 mA | |
|
IDM08G120C5XTMA1DIODE SCHOTTKY 1200V 8A TO252-2 |
2,825 | 4.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolSiC™+ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 365pF @ 1V, 1MHz | 0 ns | 40 µA @ 1200 V | 1200 V | 8A (DC) | -55°C ~ 175°C | 1.95 V @ 8 A |
|
CDST-914-GDIODE GEN PURP 100V 300MA SOT23 |
2,638 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 100 V | 300mA | 150°C (Max) | 1.25 V @ 150 mA |
