| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R6200640XXOODIODE GP 600V 400A DO200AA R62 |
2,690 | 58.07 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 9 µs | 50 mA @ 600 V | 600 V | 400A | - | 1.5 V @ 800 A | |
|
|
1N3290ADIODE GEN PURP 300V 100A DO205AA |
3,824 | 58.18 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 24 mA @ 300 V | 300 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
1N3290ARDIODE GEN PURP 300V 100A DO205AA |
2,458 | 58.18 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 24 mA @ 300 V | 300 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
1N4587DIODE GEN PURP 100V 150A DO205AA |
2,284 | 58.18 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 9.5 mA @ 100 V | 100 V | 150A | -60°C ~ 200°C | - | |
|
|
1N4587RDIODE GEN PURP 100V 150A DO205AA |
3,280 | 58.18 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 9.5 mA @ 100 V | 100 V | 150A | -60°C ~ 200°C | - | |
|
|
1N3268DIODE GEN PURP 500V 160A DO205AB |
2,376 | 58.59 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 500 V | 500 V | 160A | -65°C ~ 175°C | - | |
|
|
1N3268RDIODE GEN PURP 500V 160A DO205AB |
3,021 | 58.59 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 500 V | 500 V | 160A | -65°C ~ 175°C | - | |
|
|
1N4044RDIODE GEN PURP 50V 275A DO205AB |
2,006 | 58.59 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 15 mA @ 50 V | 50 V | 275A | -65°C ~ 190°C | - | |
|
1N4045DIODE GEN PURP 100V 275A DO205AB |
2,930 | 58.59 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 15 mA @ 100 V | 100 V | 275A | -65°C ~ 190°C | - | |
|
|
1N4045RDIODE GEN PURP 100V 275A DO205AB |
3,616 | 58.59 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 15 mA @ 100 V | 100 V | 275A | -65°C ~ 190°C | - | |
|
|

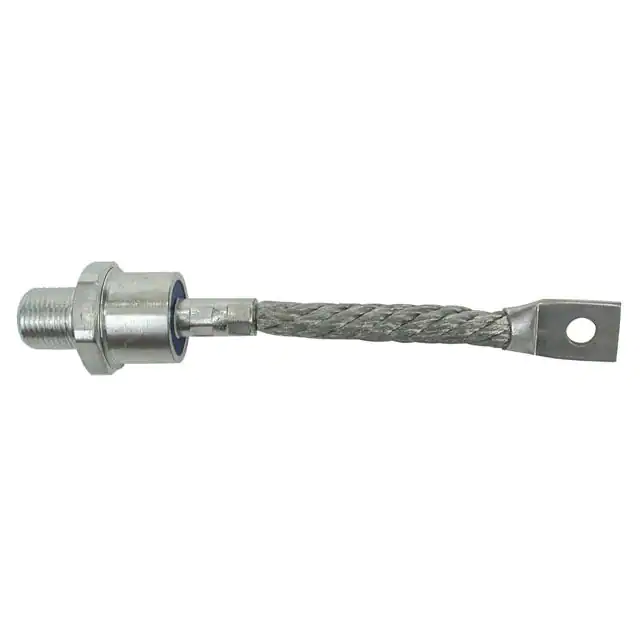

1N3736RECTIFIER STUD MOUNT DO-9 |
2,340 | 58.59 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N3736RRECTIFIER STUD MOUNT DO-9 |
3,916 | 58.59 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
R5020210RSWADIODE GEN PURP 200V 100A DO205AA |
3,342 | 58.61 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 300 ns | 45 mA @ 200 V | 200 V | 100A | -40°C ~ 150°C | 2.7 V @ 100 A | |
|
|
R5030210RSWADIODE GEN PURP 200V 100A DO205AA |
2,855 | 58.61 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 300 ns | 45 mA @ 200 V | 200 V | 100A | -40°C ~ 150°C | 2.7 V @ 100 A | |
|
R5000610XXWARECTIFIER STUD MOUNT FORWARD DO- |
3,810 | 58.74 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 7 µs | 30 mA @ 600 V | 600 V | 100A | -65°C ~ 200°C | - | |
|
|
R5010610XXWARECTIFIER STUD MOUNT REVERSE DO- |
2,084 | 58.74 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | 7 µs | 30 mA @ 600 V | 600 V | 100A | -65°C ~ 200°C | - | |
|
|
R6020225HSYADIODE GEN PURP 200V 250A DO205AB |
2,889 | 58.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 1 µs | 50 mA @ 200 V | 200 V | 250A | -45°C ~ 150°C | 2 V @ 800 A | |
|
|
R6020435ESYADIODE GEN PURP 400V 350A DO205AB |
3,572 | 58.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 2 µs | 50 mA @ 400 V | 400 V | 350A | -45°C ~ 150°C | 1.5 V @ 800 A | |
|
|
R6030225HSYADIODE GEN PURP 200V 250A DO205AB |
3,870 | 58.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 1 µs | 50 mA @ 200 V | 200 V | 250A | -45°C ~ 150°C | 2 V @ 800 A | |
|
|
R6030435ESYADIODE GEN PURP 400V 350A DO205AB |
3,374 | 58.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 2 µs | 50 mA @ 400 V | 400 V | 350A | -45°C ~ 150°C | 1.5 V @ 800 A |
