| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

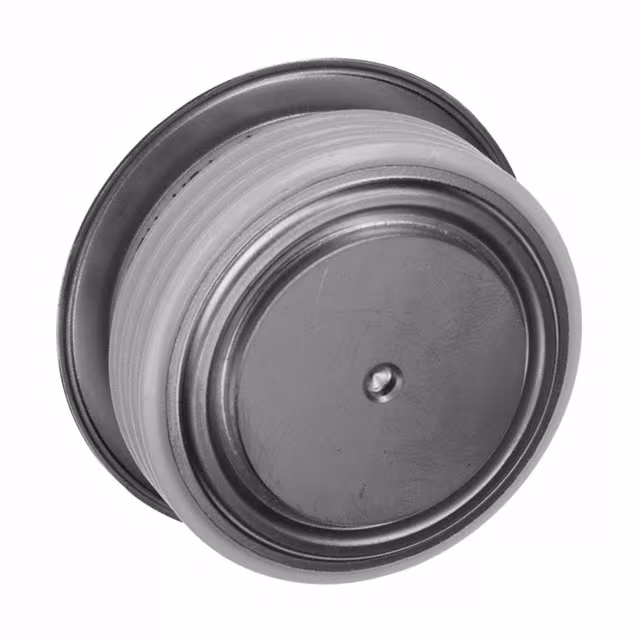

R9G00822XXDIODE GP 800V 2200A DO200AB |
3,644 | 197.33 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 15 µs | 150 mA @ 800 V | 800 V | 2200A | - | 1.1 V @ 1500 A | |
|
|
R5031213LSWADIODE GEN PURP 1.2KV 125A DO205 |
2,324 | 65.77 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 700 ns | 45 mA @ 1200 V | 1200 V | 125A | -40°C ~ 150°C | 2.5 V @ 470 A | |
|
|
A177RNDIODE GEN PURP 800V 100A DO205AA |
2,478 | 63.14 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | 2.3 µs | - | 800 V | 100A | -40°C ~ 125°C | - | |
|
|
R9G01018XXDIODE GEN PURP 1KV 1800A DO200AB |
3,888 | 197.33 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 150 mA @ 1000 V | 1000 V | 1800A | - | 1.2 V @ 1500 A | |
|
|
R6000230XXYARECTIFIER STUD MOUNT FORWARD DO- |
2,930 | 65.79 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 13 µs | 50 mA @ 200 V | 200 V | 300A | -65°C ~ 150°C | - | |
|
R9G01212XXDIODE GP 1.2KV 1200A DO200AB |
2,103 | 197.33 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 150 mA @ 1200 V | 1200 V | 1200A | - | 1.45 V @ 1500 A | |
|
|
R6010230XXYARECTIFIER STUD MOUNT REVERSE DO- |
3,730 | 65.79 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | 13 µs | 50 mA @ 200 V | 200 V | 300A | -65°C ~ 150°C | - | |
|
|
1N3171DIODE STUD MNT 240A 700V DO-9 |
3,594 | 65.87 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N3171RDIODE STUD MNT 240A 700V DO-9 |
3,809 | 65.87 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
R5021218FSWADIODE GEN PURP 1.2KV 175A DO205 |
3,888 | 63.49 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 1.5 µs | 45 mA @ 1200 V | 1200 V | 175A | -40°C ~ 150°C | 1.65 V @ 470 A | |
|
|
R5031218FSWADIODE GEN PURP 1.2KV 175A DO205 |
2,010 | 63.49 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 1.5 µs | 45 mA @ 1200 V | 1200 V | 175A | -40°C ~ 150°C | 1.65 V @ 470 A | |
|
|
A170PDIODE GEN PURP 1KV 100A DO205 |
3,172 | 63.51 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 20 mA @ 1000 V | 1000 V | 100A | -40°C ~ 200°C | 1.3 V @ 100 A | |
|
|
A170RPDIODE GEN PURP 1KV 100A DO205 |
3,011 | 63.51 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 20 mA @ 1000 V | 1000 V | 100A | -40°C ~ 200°C | 1.3 V @ 100 A | |
|
|
A180NDIODE GEN PURP 800V 150A DO205AA |
2,468 | 63.51 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 20 mA @ 800 V | 800 V | 150A | -40°C ~ 200°C | 1.3 V @ 150 A | |
|
|
RBT83243XXOORECTIFIER DISC RBT |
3,955 | 584.21 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 150 mA @ 3200 V | 3200 V | 5200A | -40°C ~ 175°C | - | |
|
|
A180RNDIODE GEN PURP 800V 150A DO205AA |
3,455 | 63.51 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 20 mA @ 800 V | 800 V | 150A | -40°C ~ 200°C | 1.3 V @ 150 A | |
|
|
RBT83643XXOORECTIFIER DISC RBT |
3,937 | 592.68 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 150 mA @ 3600 V | 3600 V | 5200A | -40°C ~ 175°C | - | |
|
|
RBS84035XXDIODE GEN PURP 4.2KV 3500A |
2,923 | 603.68 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 µs | 150 mA @ 4200 V | 4200 V | 3500A | - | 1.31 V @ 4000 A | |
|
|
PS410625DIODE GP 600V 2500A POWRBLOK |
3,375 | 608.95 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 22 µs | 200 mA @ 600 V | 600 V | 2500A | - | 1 V @ 3000 A | |
|
|
R5021013LSWADIODE GEN PURP 1KV 125A DO205 |
2,881 | 63.62 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 700 ns | 45 mA @ 1000 V | 1000 V | 125A | -40°C ~ 150°C | 2.5 V @ 470 A |
