Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDS1040L-13DIODE SCHOTTKY 40V 10A POWERDI5 |
67,354 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 600 µA @ 40 V | 40 V | 10A | -65°C ~ 150°C | 490 mV @ 10 A | |
|
CGRB307-GDIODE GEN PURP 1KV 3A DO214AA |
186,527 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 1000 V | 1000 V | 3A | 150°C (Max) | 1.1 V @ 3 A | |
|
DSS60-0045BDIODE SCHOTTKY 45V 60A TO247AD |
2,286 | 4.55 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 10 mA @ 45 V | 45 V | 60A | -55°C ~ 150°C | 600 mV @ 60 A | |
|
|
PDS340-13DIODE SCHOTTKY 40V 3A POWERDI5 |
31,449 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A | -65°C ~ 150°C | 490 mV @ 3 A | |
|
RS1MB-13-FDIODE GEN PURP 1KV 1A SMB |
140,762 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|

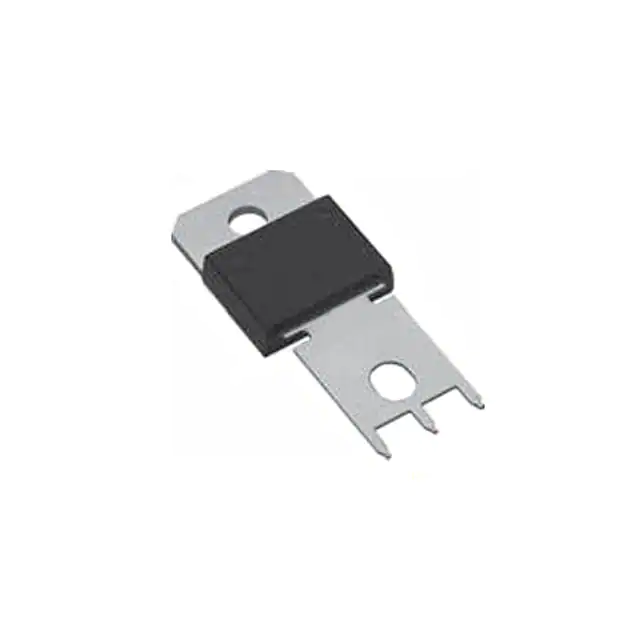

VS-100BGQ100DIODE SCHOTTKY 100V 100A POWIRTA |
2,673 | 4.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | - | - | 300 µA @ 100 V | 100 V | 100A | -55°C ~ 175°C | 1.04 V @ 100 A | |
|
LSM115JE3/TR13DIODE SCHOTTKY 15V 1A DO214BA |
17,455 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 10 mA @ 15 V | 15 V | 1A | -55°C ~ 150°C | 220 mV @ 1 A | |
|
|
B1100B-13-FDIODE SCHOTTKY 100V 1A SMB |
162,105 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 500 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 790 mV @ 1 A | |
|
SCS215AJHRTLLDIODE SCHOTTKY 650V 15A TO263AB |
2,313 | 8.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Surface Mount | 550pF @ 1V, 1MHz | 0 ns | 300 µA @ 600 V | 650 V | 15A (DC) | 175°C (Max) | 1.55 V @ 15 A |
|
FFD10UP20SDIODE GEN PURP 200V 10A DPAK |
8,640 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 20.8 ns | 100 µA @ 200 V | 200 V | 10A | -65°C ~ 175°C | 1.15 V @ 10 A | |
|
CFSH05-20L TR PBFREEDIODE SCHOTTKY 20V 500MA SOD882 |
198,766 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 30pF @ 1V, 1MHz | - | 8 µA @ 10 V | 20 V | 500mA | -65°C ~ 150°C | 220 mV @ 10 mA | |
|
RURG80100DIODE GEN PURP 1000V 80A TO247-2 |
2,693 | 4.87 |
RFQ |
Datasheet |
Bulk,Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 250 µA @ 1000 V | 1000 V | 80A | -65°C ~ 175°C | 1.9 V @ 80 A | |
|
STPS8H100G-TRDIODE SCHOTTKY 100V 8A D2PAK |
35,475 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 4.5 µA @ 100 V | 100 V | 8A | 175°C (Max) | 710 mV @ 8 A | |
|
|
ES1G-13-FDIODE GEN PURP 400V 1A SMA |
127,203 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 25 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|
|
DSEP30-12ADIODE GEN PURP 1.2KV 30A TO247AD |
1,638 | 4.93 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 250 µA @ 1200 V | 1200 V | 30A | -55°C ~ 175°C | 2.74 V @ 30 A |
|
CMR1U-06M TR13 PBFREEDIODE GEN PURP 600V 1A SMA |
71,654 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.4 V @ 1 A | |
|
PMEG3020EJ,115DIODE SCHOTTKY 30V 2A SOD323F |
50,355 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 72pF @ 1V, 1MHz | - | 1 mA @ 30 V | 30 V | 2A (DC) | 150°C (Max) | 620 mV @ 2 A | |
|
1N5552DIODE GEN PURP 600V 3A AXIAL |
1,115 | 5.04 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A | |
|
|
PDS1040-13DIODE SCHOTTKY 40V 10A POWERDI5 |
255,308 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 700 µA @ 40 V | 40 V | 10A | -65°C ~ 150°C | 510 mV @ 10 A | |
|
|
SK56A-LTPDIODE SCHOTTKY 5A 60V SMA |
16,450 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 1 mA @ 60 V | 60 V | 5A | -55°C ~ 150°C | 750 mV @ 5 A |
