Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS1090VFL_R1_00001LOW VF SURFACE MOUNT SCHOTTKY BA |
2,691 | 0.45 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 203pF @ 0V, 1MHz | - | 100 µA @ 90 V | 90 V | 1A | -55°C ~ 150°C | 730 mV @ 1 A | ||
|
|
BAV21_AY_00001SWITCHING DIODES |
2,627 | 0.20 |
RFQ |
Cut Tape (CT),Tape & Box (TB) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 3pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA | -55°C ~ 150°C | 1 V @ 100 mA | ||
|
S1GLW RVGDIODE GEN PURP 400V 1A SOD123W |
3,063 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 1 µA @ 400 V | 400 V | 1A | -55°C ~ 175°C | 1.1 V @ 1 A | |
|
MMBD1401DIODE GP 200V 200MA SOT23-3 |
3,433 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 50 ns | 100 nA @ 175 V | 200 V | 200mA | 150°C (Max) | 1 V @ 200 mA | |
|
|
GS2004HE_R1_00001SURFACE MOUNT RECTIFIER |
3,978 | 0.53 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 12pF @ 4V, 1MHz | - | 1 µA @ 400 V | 400 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | ||
|
|
MBR840D_R2_00001D PAK SURFACE MOUNT SCHOTTKY BAR |
3,591 | 0.85 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 40 V | 40 V | 8A | -55°C ~ 150°C | 700 mV @ 8 A | ||
|

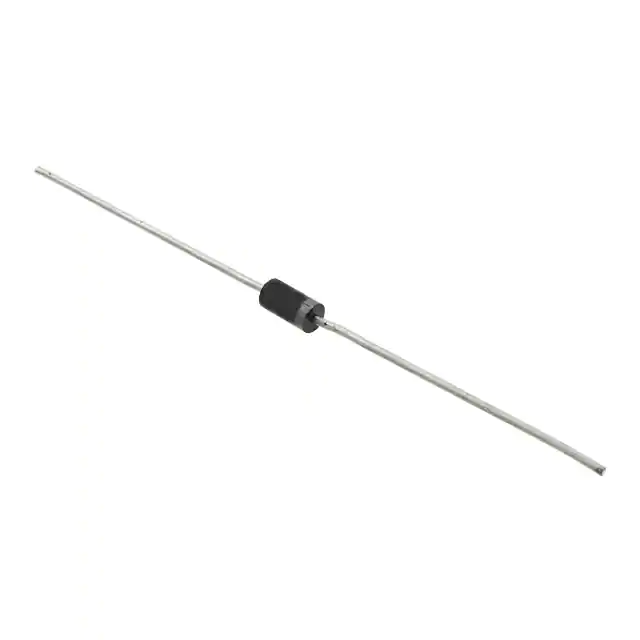

MUR160GP-TPDIODE GEN PURP 600V 1A DO41 |
795,000 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | 60 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.35 V @ 1 A | |
|
|
1SS388_R1_00001SURFACE MOUNT SCHOTTKY BARRIER R |
2,021 | 0.20 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 18pF @ 0V, 1MHz | - | 5 µA @ 10 V | 40 V | 100mA | -55°C ~ 125°C | 600 mV @ 50 mA | ||
|
SMD2150PL-TPDIODE SCHOTTKY 150V 2A SOD123FL |
3,333 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 210pF @ 4V, 1MHz | - | 500 µA @ 150 V | 150 V | 2A | -65°C ~ 150°C | 900 mV @ 2 A | |
|
BAT43WS RRGDIODE SCHOTTKY 30V 200MA SOD323F |
3,367 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 1V, 1MHz | 5 ns | 500 nA @ 25 V | 30 V | 200mA | -65°C ~ 125°C | 1 V @ 200 mA | |
|
|
ES3DB-HFRECTIFIER SUPER FAST RECOVERY 20 |
2,603 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
MBR845D_R2_00001D PAK SURFACE MOUNT SCHOTTKY BAR |
3,014 | 0.85 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 45 V | 45 V | 8A | -65°C ~ 175°C | 700 mV @ 8 A | ||
|
SS1060VHEWS_R1_00001SOD-323HE, SKY |
14,932 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 136pF @ 0V, 1MHz | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 150°C | 600 mV @ 1 A | |
|
|
BAS19_R1_00001SURFACE MOUNT SWITCHING DIODE |
3,261 | 0.19 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 1 µA @ 100 V | 100 V | 200mA | -55°C ~ 150°C | 1 V @ 100 mA | ||
|
MCL103C-TRDIODE SCHOTTKY 20V 200MA MICMELF |
3,265 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 5 µA @ 10 V | 20 V | 200mA | 125°C (Max) | 600 mV @ 200 mA |
|
LL103C-GS18DIODE SCHOTTKY 20V 200MA SOD80 |
2,542 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 10 V | 20 V | 200mA | 125°C (Max) | 600 mV @ 200 mA |
|
|
ES3JB-HFRECTIFIER SUPER FAST RECOVERY 60 |
2,914 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 3A | -55°C ~ 150°C | 1.68 V @ 3 A | |
|
|
SVT20100U_R1_00001EXTREME LOW VF SCHOTTKY BARRIER |
2,942 | 0.99 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 80 µA @ 100 V | 100 V | 20A | -55°C ~ 150°C | 660 mV @ 20 A | ||
|
|
SK23F_R2_00001SURFACE MOUNT SCHOTTKY BARRIER R |
3,970 | 0.51 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 98pF @ 4V, 1MHz | - | 100 µA @ 30 V | 30 V | 2A | -55°C ~ 150°C | 500 mV @ 2 A | ||
|
NSVBAS21HT3GDIODE GEN PURP 250V 200MA SOD323 |
3,023 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA |
