| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH1512G-TRDIODE GEN PURP 1.2KV 15A D2PAK |
3,067 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 105 ns | 15 µA @ 1200 V | 1200 V | 15A | 175°C (Max) | 2.1 V @ 15 A | |
|
STTH30L06G-TRDIODE GEN PURP 600V 30A D2PAK |
3,757 | 2.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 90 ns | 25 µA @ 600 V | 600 V | 30A | 175°C (Max) | 1.55 V @ 30 A | |
|
STTH15S12DDIODE GEN PURP 1.2KV 15A TO220AC |
3,822 | 1.68 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 10 µA @ 1200 V | 1200 V | 15A | 175°C (Max) | 3.1 V @ 15 A | |
|
STBR3012G2Y-TRAUTOMOTIVE-GRADE BRIDGE RECTIFIE |
3,539 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 2 µA @ 1200 V | 1200 V | 30A | -40°C ~ 175°C | 1.3 V @ 30 A |
|
|
STPS20M60SG-TRDIODE SCHOTTKY 60V 20A D2PAK |
3,148 | 3.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 125 µA @ 60 V | 60 V | 20A | 150°C (Max) | 565 mV @ 20 A | |
|
|
STTH30L06GY-TRDIODE GEN PURP 600V 30A D2PAK |
2,273 | 3.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 90 ns | 25 µA @ 600 V | 600 V | 30A | -40°C ~ 175°C | 1.55 V @ 30 A |
|
|
STPSC10H065GY-TRDIODE SCHTY SIC 650V 10A D2PAK |
3,768 | 3.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 480pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 10A | -40°C ~ 175°C | 1.75 V @ 10 A |
|
STTH1210DIDIODE GEN PURP 1KV 12A TO220INS |
3,331 | 3.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 90 ns | 10 µA @ 1000 V | 1000 V | 12A | 175°C (Max) | 2 V @ 12 A | |
|
TMMBAT41FILMDIODE SCHOTTKY 100V 100MA MINMLF |
3,772 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 1V, 1MHz | - | 100 nA @ 50 V | 100 V | 100mA (DC) | -65°C ~ 125°C | 450 mV @ 1 mA | |
|
|
TMMBAT43FILMDIODE SCHOTTKY 30V 200MA MINMELF |
3,841 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 1V, 1MHz | 5 ns | 500 nA @ 25 V | 30 V | 200mA (DC) | -65°C ~ 125°C | 1 V @ 200 mA | |
|
STPS2H100ZFYDIODE SCHOTTKY 100V 2A SOD123F |
3,792 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 µA @ 100 V | 100 V | 2A | -40°C ~ 175°C | 960 mV @ 4 A |
|
STPS0540ZDIODE SCHOTTKY 40V 500MA SOD123 |
2,427 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 40 µA @ 40 V | 40 V | 500mA | 150°C (Max) | 500 mV @ 500 mA | |
|
STPS120MDIODE SCHOTTKY 20V 1A STMITE |
2,980 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 3.9 µA @ 20 V | 20 V | 1A | 150°C (Max) | 490 mV @ 1 A | |
|
1N5817DIODE SCHOTTKY 20V 1A DO41 |
11,895 | 0.42 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 20 V | 20 V | 1A | 150°C (Max) | 450 mV @ 1 A | |
|
STPS2150AFN150 V, 2 A POWER SCHOTTKY RECTIF |
3,517 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.5 µA @ 150 V | 150 V | 2A | 175°C | 820 mV @ 2 A | |
|
|
TMMBAT42FILMDIODE SCHOTTKY 30V 200MA MINMELF |
3,866 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 1V, 1MHz | 5 ns | 500 nA @ 25 V | 30 V | 200mA (DC) | -65°C ~ 125°C | 1 V @ 200 mA | |
|
STPS140UDIODE SCHOTTKY 40V 1A SMB |
3,681 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 12 µA @ 40 V | 40 V | 1A | 150°C (Max) | 550 mV @ 1 A | |
|
|
STPS2L40AFN40 V, 2 A LOW DROP POWER SCHOTTK |
2,357 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 220 µA @ 40 V | 40 V | 2A | 150°C | 430 mV @ 2 A | |
|

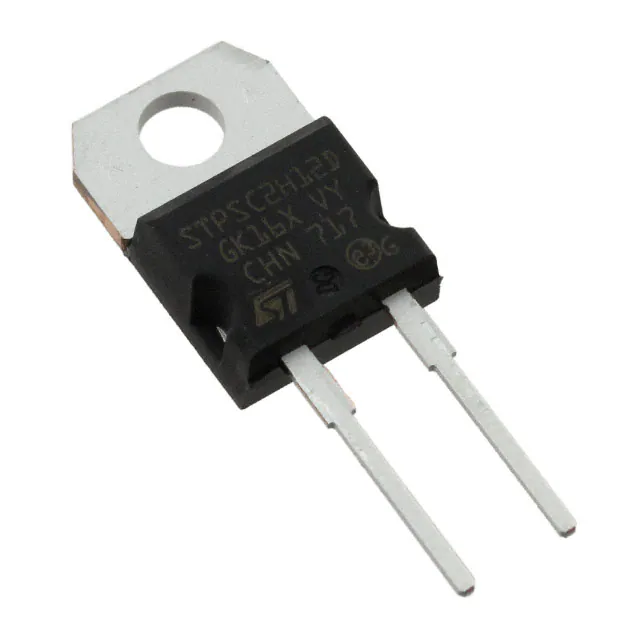

STPSC2H12DDIODE SCHOTTKY 1.2KV 2A TO220AC |
3,242 | 2.35 |
RFQ |
Datasheet |
Tube | ECOPACK®2 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 190pF @ 0V, 1MHz | 0 ns | 12 µA @ 1200 V | 1200 V | 2A | -40°C ~ 175°C | 1.5 V @ 2 A |
|
|
STTH812DDIODE GEN PURP 1.2KV 8A TO220AC |
3,435 | 2.44 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 100 ns | 8 µA @ 1200 V | 1200 V | 8A | 175°C (Max) | 2.2 V @ 8 A |
