| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

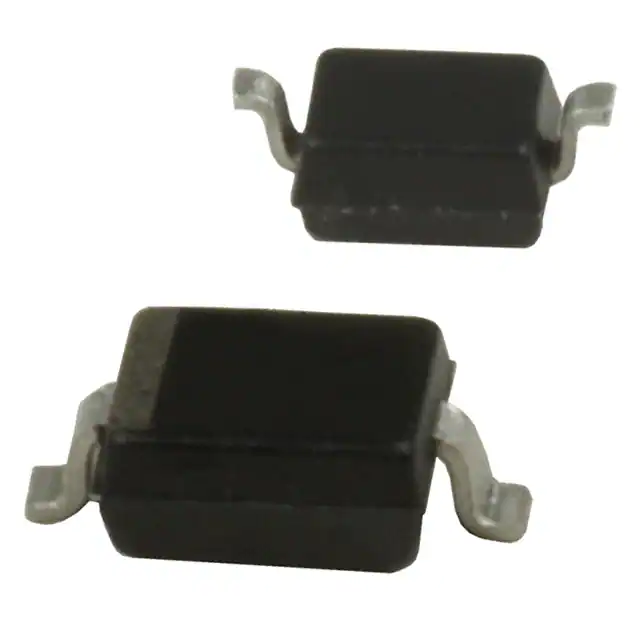

BAS70ZFILMDIODE SCHOTTKY 70V 70MA SOD123 |
3,861 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 2pF @ 0V, 1MHz | - | 10 µA @ 70 V | 70 V | 70mA (DC) | 150°C (Max) | 1 V @ 15 mA | |
|
BAT30FILMDIODE SCHOTTKY 30V 300MA SOT23-3 |
3,879 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 22pF @ 0V, 1MHz | - | 5 µA @ 30 V | 30 V | 300mA (DC) | 150°C (Max) | 530 mV @ 300 mA | |
|
BAT30WFILMDIODE SCHOTTKY 30V 300MA SOT323 |
3,579 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 22pF @ 0V, 1MHz | - | 5 µA @ 30 V | 30 V | 300mA (DC) | 150°C (Max) | 530 mV @ 300 mA | |
|
BAT41JFILMDIODE SCHOTTKY 100V 200MA SOD323 |
2,462 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 10pF @ 1V, 1MHz | - | 100 nA @ 50 V | 100 V | 200mA (DC) | 150°C (Max) | 1 V @ 200 mA | |
|
|
BAT41WFILMDIODE SCHOTTKY 100V 200MA SOT323 |
2,823 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 10pF @ 1V, 1MHz | - | 100 nA @ 50 V | 100 V | 200mA (DC) | 150°C (Max) | 1 V @ 200 mA | |
|
|
BAT46FILMDIODE SCHOTTKY 100V 150MA SOT23 |
2,756 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 10pF @ 0V, 1MHz | - | 5 µA @ 75 V | 100 V | 150mA (DC) | 150°C (Max) | 450 mV @ 10 mA | |
|
STTH2R02QRLDIODE GEN PURP 200V 2A DO15 |
2,535 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 3 µA @ 200 V | 200 V | 2A | 175°C (Max) | 1 V @ 2 A | |
;;2.jpg)
|
STTH312B-TRDIODE GEN PURP 1.2KV 3A DPAK |
3,677 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 115 ns | 10 µA @ 1200 V | 1200 V | 3A | 175°C (Max) | 2 V @ 3 A | |
|
STPS1545RDIODE SCHOTTKY 45V 15A I2PAK |
3,383 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 200 µA @ 45 V | 45 V | 15A | 175°C (Max) | 840 mV @ 30 A | |
|
STTH1003SG-TRDIODE GEN PURP 300V 10A D2PAK |
2,030 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 10 µA @ 300 V | 300 V | 10A | 175°C (Max) | 1.3 V @ 10 A | |
|
|
STTH10R04BDIODE GEN PURP 400V 10A DPAK |
3,289 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 40 ns | 10 µA @ 400 V | 400 V | 10A | 175°C (Max) | 1.7 V @ 10 A | |
|
STTH1210FPDIODE GEN PURP 1KV 12A TO220FP |
2,382 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 90 ns | 10 µA @ 1000 V | 1000 V | 12A | 175°C (Max) | 2 V @ 12 A | |
|
|
STTH10R04FPDIODE GEN PURP 400V 10A TO220FP |
3,778 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 40 ns | 10 µA @ 400 V | 400 V | 10A | 175°C (Max) | 1.7 V @ 10 A | |
|
STTH3002WDIODE GEN PURP 200V 30A DO247 |
3,876 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 50 ns | 20 µA @ 200 V | 200 V | 30A | 175°C (Max) | 1.05 V @ 30 A | |
|
|
STTH10R04GDIODE GEN PURP 400V 10A D2PAK |
2,068 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 40 ns | 10 µA @ 400 V | 400 V | 10A | 175°C (Max) | 1.7 V @ 10 A | |
|
|
STTH1202FPDIODE GEN PURP 200V 12A TO220FP |
2,299 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 10 µA @ 200 V | 200 V | 12A | 175°C (Max) | 1.1 V @ 12 A | |
|
|
STTH20R04GDIODE GEN PURP 400V 20A D2PAK |
2,666 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 45 ns | 20 µA @ 400 V | 400 V | 20A | 175°C (Max) | 1.7 V @ 20 A | |
|
|
STTH20R04WDIODE GEN PURP 400V 20A DO247 |
2,131 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 45 ns | 20 µA @ 400 V | 400 V | 20A | 175°C (Max) | 1.7 V @ 20 A | |
|
STTH30R04PIDIODE GEN PURP 400V 30A DOP3I |
2,178 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 100 ns | 15 µA @ 400 V | 400 V | 30A | -40°C ~ 175°C | 1.45 V @ 30 A | |
|
STTH8R04FPDIODE GEN PURP 400V 8A TO220FP |
3,154 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 50 ns | 10 µA @ 400 V | 400 V | 8A | -40°C ~ 175°C | 1.5 V @ 8 A |
