| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES8GC-HFRECTIFIER SUPER FAST RECOVERY 40 |
2,198 | 0.23 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 90pF @ 4V, 1MHz | 35 ns | 10 µA @ 400 V | 400 V | 8A | -55°C ~ 150°C | 1.3 V @ 8 A | ||
|
|
ES8CC-HFRECTIFIER SUPER FAST RECOVERY 15 |
2,835 | 0.23 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 90pF @ 4V, 1MHz | 35 ns | 10 µA @ 150 V | 150 V | 8A | -55°C ~ 150°C | 980 mV @ 8 A | ||
|
|
ES8AC-HFRECTIFIER SUPER FAST RECOVERY 50 |
2,072 | 0.23 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 90pF @ 4V, 1MHz | 35 ns | 10 µA @ 50 V | 50 V | 8A | -55°C ~ 150°C | 980 mV @ 8 A | ||
|
|
ES8EC-HFRECTIFIER SUPER FAST RECOVERY 30 |
3,861 | 0.23 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 90pF @ 4V, 1MHz | 35 ns | 10 µA @ 300 V | 300 V | 8A | -55°C ~ 150°C | 1.3 V @ 8 A | ||
|
|
ES8DC-HFRECTIFIER SUPER FAST RECOVERY 20 |
2,707 | 0.23 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 90pF @ 4V, 1MHz | 35 ns | 10 µA @ 200 V | 200 V | 8A | -55°C ~ 150°C | 980 mV @ 8 A | ||
|
|
ES8JC-HFRECTIFIER SUPER FAST RECOVERY 60 |
2,687 | 0.23 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 90pF @ 4V, 1MHz | 35 ns | 10 µA @ 600 V | 600 V | 8A | -55°C ~ 150°C | 1.7 V @ 8 A | ||
|
|
ES8BC-HFRECTIFIER SUPER FAST RECOVERY 10 |
2,692 | 0.23 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 90pF @ 4V, 1MHz | 35 ns | 10 µA @ 100 V | 100 V | 8A | -55°C ~ 150°C | 980 mV @ 8 A | ||
|
|
SB540B-GDIODE SCHOTTKY 40V 5A DO201AD |
2,188 | 0.40 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 350pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 5A | -65°C ~ 125°C | 550 mV @ 5 A | |
|
|
CDBHA1560-HFDIODE SCHOTTKY 60V 15A TO-277B |
2,986 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 15A | -55°C ~ 150°C | 530 mV @ 15 A | |
|
|
CDBHA10100-HFDIODE SCHOTTKY 100V 10A TO-277B |
3,532 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 250 µA @ 100 V | 100 V | 10A | -55°C ~ 150°C | 700 mV @ 10 A | |
|
|
CDBHA1545-HFDIODE SCHOTTKY 45V 15A TO-277B |
2,074 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 45 V | 45 V | 15A | -55°C ~ 150°C | 470 mV @ 15 A | |
|
|
CDBJSC51200-GDIODE SIC 3A 1200V TO-220-2 |
3,333 | 6.22 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 475pF @ 0V, 1MHz | 0 ns | 100 µA @ 1200 V | 1200 V | 5A (DC) | -55°C ~ 175°C | 1.7 V @ 5 A | |
|
|
CDBJSC101200-GDIODE SIC 10A 1200V TO-220-2 |
2,179 | 10.91 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 780pF @ 0V, 1MHz | 0 ns | 100 µA @ 1200 V | 1200 V | 10A (DC) | -55°C ~ 175°C | 1.7 V @ 10 A | |
|
|
CDBJSC101700-GDIODE SIC 10A 1700V TO-220-2 |
2,993 | 46.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1400pF @ 0V, 1MHz | 0 ns | 100 µA @ 1700 V | 1700 V | 35A (DC) | -55°C ~ 175°C | 1.7 V @ 10 A | |
|
CDBM120-GDIODE SCHOTTKY 20V 1A MINISMA |
2,946 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 1A | -50°C ~ 125°C | 500 mV @ 1 A | |
|

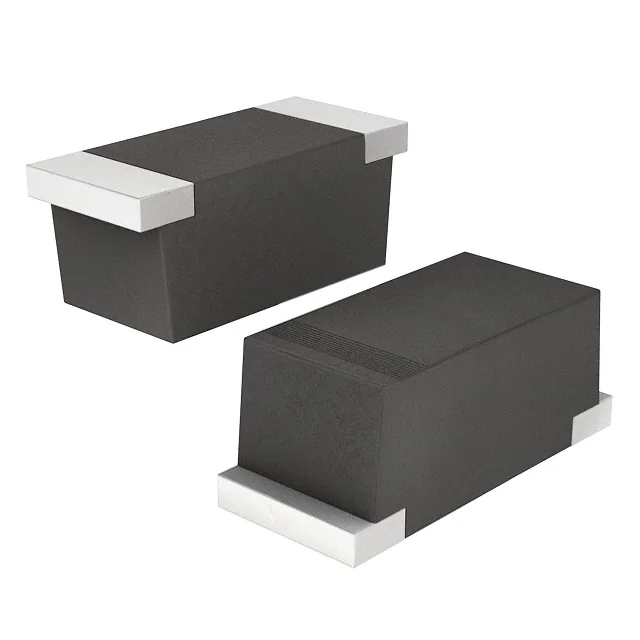

CGRM4001-GDIODE GEN PURP 50V 1A MINISMA |
3,135 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
CDBM280-HFDIODE SCHOTTKY 80V 2A MINISMA |
3,478 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 160pF @ 4V, 1MHz | - | 500 µA @ 80 V | 80 V | 2A (DC) | -55°C ~ 150°C | 850 mV @ 1 A | |
|
SR10150-GDIODE SCHOTTKY 150V 10A ITO220AB |
2,413 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 500 µA @ 150 V | 150 V | 10A | -55°C ~ 150°C | 950 mV @ 5 A | |
|
|
SR10200-GDIODE SCHOTTKY 200V 10A TO220-3 |
3,019 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 500 µA @ 200 V | 200 V | 10A | -55°C ~ 150°C | 950 mV @ 5 A | |
|
CDBA120L-GDIODE SCHOTTKY 20V 1A DO214AC |
3,649 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 1 mA @ 20 V | 20 V | 1A | 125°C (Max) | 380 mV @ 1 A |
