| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES1G-HFRECTIFIER SUPER FAST RECOVERY 40 |
4,995 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|
CDBA3150-HFDIODE SCHOTTKY 150V 3A DO214AC |
4,585 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 250pF @ 4V, 1MHz | - | 500 µA @ 150 V | 150 V | 3A | -50°C ~ 175°C | 870 mV @ 2 A | |
|
CDBMT140-HFDIODE SCHOTTKY 40V 1A SOD123H |
1,739 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 1A (DC) | -55°C ~ 125°C | 500 mV @ 1 A | |
|
|
ACDBA1200-HFDIODE SCHOTTKY 200V 1A DO214AC |
3,576 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 25pF @ 4V, 1MHz | - | 200 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 900 mV @ 1 A |
|

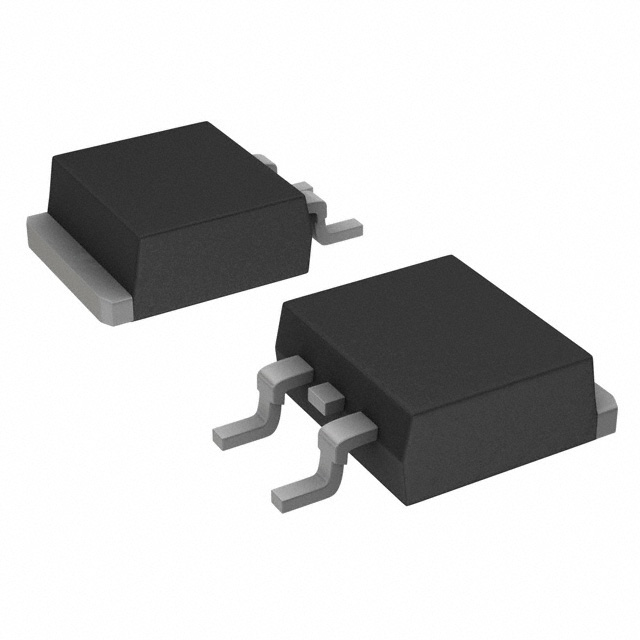

CDBD2SC21200-GDIODE SIC 2A 1200V TO-263/D2PAK |
402 | 3.17 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 136pF @ 0V, 1MHz | 0 ns | 100 µA @ 1200 V | 1200 V | 6.2A (DC) | -55°C ~ 175°C | 1.7 V @ 2 A | |
|
SB2100E-GDIODE SCHOTTKY 100V 2A DO15 |
3,985 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 100 V | 100 V | 2A | -65°C ~ 150°C | 850 mV @ 2 A | |
|
CDBDSC8650-GDIODE SIC 8A 650V TO-252/DPAK |
352 | 3.63 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 550pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 25.5A (DC) | -55°C ~ 175°C | 1.7 V @ 8 A | |
|
CDBJFSC8650-GDIODE, SIC STKY 8A 650V TO-220F |
489 | 4.48 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 560pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 8A (DC) | -55°C ~ 175°C | 1.7 V @ 8 A | |
|
|
CDBDSC10650-GDIODE SIC 10A 650V TO-252/DPAK |
355 | 4.88 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 690pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 10A (DC) | -55°C ~ 175°C | 1.7 V @ 10 A | |
|
|
CDBJSC10650-GDIODE SIC 10A 650V TO-220-2 |
472 | 5.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 710pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 10A (DC) | -55°C ~ 175°C | 1.7 V @ 10 A | |
|
|
CDBJFSC10650-GDIODE, SIC STKY 10A 650V TO-220F |
494 | 6.10 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 710pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 10A (DC) | -55°C ~ 175°C | 1.7 V @ 10 A | |
|
CDBC5150-HFDIODE SCHOTTKY 150V 5A DO214AB |
193 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 380pF @ 4V, 1MHz | - | 500 µA @ 150 V | 150 V | 5A (DC) | -50°C ~ 175°C | 870 mV @ 5 A | |
|
|
CDBDSC51200-GDIODE SIC 5A 1200V TO-252/DPAK |
475 | 6.87 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 475pF @ 0V, 1MHz | 0 ns | 100 µA @ 1200 V | 1200 V | 18A (DC) | -55°C ~ 175°C | 1.7 V @ 5 A | |
|
|
ACDBA1100-HFDIODE SCHOTTKY 100V 1A DO214AC |
1,930 | 1.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 30pF @ 4V, 1MHz | - | 200 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 850 mV @ 1 A |
|
|
CDBC380-GDIODE SCHOTTKY 80V 3A DO214AB |
151 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 80 V | 80 V | 3A | 125°C (Max) | 850 mV @ 3 A | |
|
|
ACDBA1100LR-HFDIODE SCHOTTKY 100V 1A DO214AC |
2,204 | 2.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 500 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 750 mV @ 1 A |
|
CDBU0230R-HFDIODE SCHOTTKY 30V 200MA 0603 |
101 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 1 µA @ 10 V | 30 V | 200mA | 125°C (Max) | 600 mV @ 200 mA | |
|
A1N4007G-GDIODE GEN PURP 1KV 1A DO41 |
659 | 0.34 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 125°C | 1.1 V @ 1 A |
|
SB360E-GDIODE SCHOTTKY 60V 3A DO201AD |
820 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 3A | -65°C ~ 150°C | 700 mV @ 3 A | |
|
ACDBT-54A-HFDIODE SCHOTTKY 30V 200MA SOT23 |
950 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | -65°C ~ 125°C | 1 V @ 100 mA |
