| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B140-13-FDIODE SCHOTTKY 40V 1A SMA |
3,199 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 1A | -65°C ~ 150°C | 500 mV @ 1 A | |
|
SDM10K45-7-FDIODE SCHOTTKY 45V 100MA SOD323 |
2,100 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 6pF @ 10V, 1MHz | - | 1 µA @ 10 V | 45 V | 100mA (DC) | -40°C ~ 150°C | 450 mV @ 10 mA | |
|
B0530W-7-FDIODE SCHOTTKY 30V 500MA SOD123 |
3,559 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 130 µA @ 30 V | 30 V | 500mA | -65°C ~ 125°C | 430 mV @ 500 mA | |
|
BAT54T-7-FDIODE SCHOTTKY 30V 200MA SOT523 |
2,481 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 10V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | -65°C ~ 125°C | 1 V @ 100 mA |
|
BAS40Q-7-FDIODE SCHOTTKY 40V 200MA SOT23 |
3,116 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA (DC) | -55°C ~ 125°C | 1 V @ 40 mA |
|
|
B240AE-13DIODE SCHOTTKY 40V 2A SMA |
3,057 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 93pF @ 4V, 1MHz | - | 200 µA @ 40 V | 40 V | 2A | -55°C ~ 150°C | 500 mV @ 2 A | |
|
|
SDMK0340L-7-FDIODE SCHOTTKY 40V 30MA SOD323 |
3,677 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 1V, 1MHz | - | 500 nA @ 30 V | 40 V | 30mA (DC) | -40°C ~ 125°C | 370 mV @ 1 mA | |
|
SDM20U40-7DIODE SCHOTTKY 40V 250MA SOD523 |
3,186 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 30 V | 40 V | 250mA (DC) | -65°C ~ 125°C | 600 mV @ 200 mA | |
|
|
MBR180S1-7DIODE SCHOTTKY 80V 1A SOD123 |
2,806 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 20pF @ 5V, 1MHz | - | 5 µA @ 80 V | 80 V | 1A | -55°C ~ 175°C | 800 mV @ 1 A | |
|
|
BAV3004W-7-FDIODE GEN PURP 300V 225MA SOD123 |
2,851 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 240 V | 300 V | 225mA (DC) | -65°C ~ 150°C | 1.25 V @ 200 mA | |
|
|
B0520LWQ-7-FDIODE SCHOTTKY 20V 500MA SOD123 |
2,670 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 250 µA @ 20 V | 20 V | 500mA | -65°C ~ 125°C | 385 mV @ 500 mA |
|
|
BAS521Q-13DIODE GEN PURP 300V 250MA SOD523 |
2,783 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 150 nA @ 250 V | 300 V | 250mA (DC) | -65°C ~ 150°C | 1.1 V @ 100 mA |
|

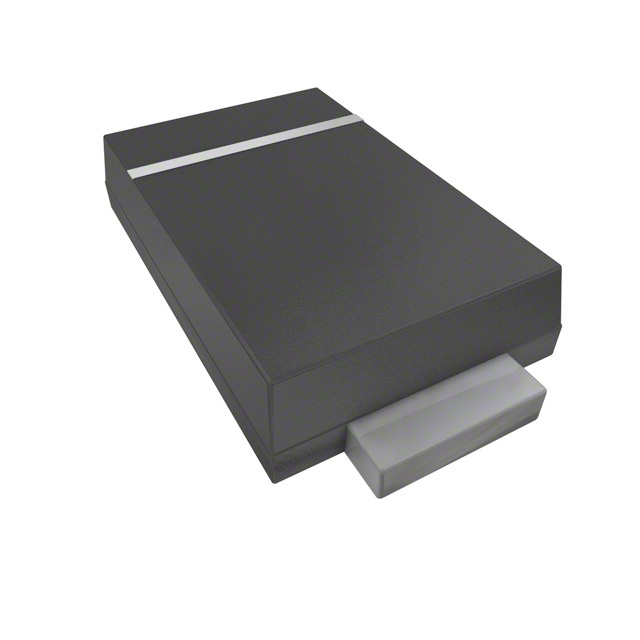

B330AF-13DIODE SCHOTTKY 30V 3A SMAF |
9,990 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 140pF @ 4V, 1MHz | - | 200 µA @ 30 V | 30 V | 3A | -55°C ~ 150°C | 500 mV @ 3 A | |
|
|
B0540WQ-7-FDIODE SCHOTTKY 40V 500MA SOD123 |
2,134 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 20 µA @ 40 V | 40 V | 500mA | -65°C ~ 150°C | 510 mV @ 500 mA |
|
B3L30LP-7DIODE SCHOTTKY 30V 3A 8DFN |
2,281 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 30 V | 30 V | 3A | -65°C ~ 150°C | 450 mV @ 3 A | |
|
|
SBR3U20SA-13DIODE SBR 20V 3A SMA |
3,674 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SBR® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Super Barrier | Active | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 3A | -65°C ~ 150°C | 390 mV @ 3 A |
|
DFLS1150Q-7DIODE SCHOTTKY 150V POWERDI123 |
2,486 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 28pF @ 5V, 1MHz | - | - | 150 V | 1A | -55°C ~ 175°C | 820 mV @ 1 A |
|
|
ZHCS750TADIODE SCHOTTKY 40V 750MA SOT23-3 |
2,166 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 25pF @ 25V, 1MHz | 12 ns | 100 µA @ 30 V | 40 V | 750mA (DC) | 125°C (Max) | 490 mV @ 750 mA | |
|
|
ES3CB-13-FDIODE GEN PURP 150V 3A SMB |
2,772 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 25 ns | 10 µA @ 150 V | 150 V | 3A | -55°C ~ 150°C | 900 mV @ 3 A | |
|
SDT8A120P5-13DIODE SCHOTTKY 120V 8A POWERDI 5 |
2,047 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 120 V | 120 V | 8A | - | 840 mV @ 8 A |
