| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBRFP10U45D1-13SUPER BARRIER RECTIFIER,TO252,T& |
3,220 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SBR | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 55 ns | 200 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 500 mV @ 10 A |
|
BAS70LP-7B-79DIODE SCHOTTKY SOT23 |
2,058 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 1pF @ 0V, 1MHz | 1.6 ns | 10 µA @ 70 V | 70 V | 70mA (DC) | -65°C ~ 150°C | 960 mV @ 15 mA | ||
|
BAS70T-7-GDIODE SCHOTTKY SOT23 |
3,237 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 2pF @ 0V, 1MHz | 5 ns | 100 nA @ 240 V | 70 V | 70mA (DC) | -55°C ~ 125°C | 1 V @ 15 mA | ||
|
B240T-01DL-FDIODE SCHOTTKY SMB |
3,369 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 200pF @ 40V, 1MHz | - | 500 µA @ 40 V | 40 V | 2A | -65°C ~ 150°C | 500 mV @ 2 A | |
|
BAS70W-7-GDIODE SCHOTTKY SOT23 |
2,154 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 2pF @ 0V, 1MHz | 5 ns | 100 nA @ 240 V | 70 V | 70mA (DC) | -55°C ~ 125°C | 1 V @ 15 mA | ||
|
|
BAS40-7-GDIODE SCHOTTKY SOT23 |
3,360 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 4pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA (DC) | -55°C ~ 125°C | 1 V @ 40 mA | ||
|
|
BAT54-7-GDIODE SCHOTTKY SOT23 |
2,614 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA | -65°C ~ 150°C | 800 mV @ 100 mA | |
|

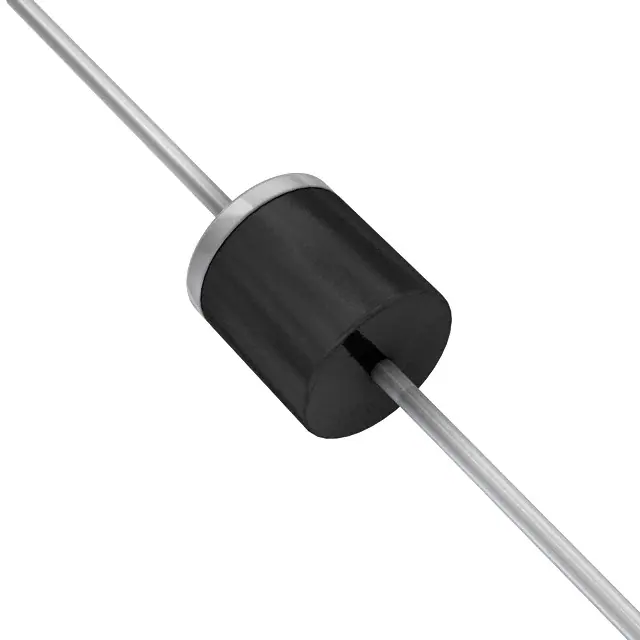

6A8-BDIODE GEN PURP 800V 6A R6 |
3,759 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 10 µA @ 800 V | 800 V | 6A | -65°C ~ 175°C | 900 mV @ 6 A | ||
|
|
10A04-BDIODE GEN PURP 400V 10A R-6 |
3,985 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 150pF @ 4V, 1MHz | - | 10 µA @ 400 V | 400 V | 10A | -65°C ~ 150°C | 1 V @ 10 A | ||
|
|
6A2-BDIODE GEN PURP 200V 6A R6 |
3,885 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 10 µA @ 200 V | 200 V | 6A | -65°C ~ 175°C | 900 mV @ 6 A | ||
|
1N4006-TDIODE GEN PURP 800V 1A DO41 |
125,095 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Not For New Designs | Through Hole | 8pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
1N4002-TDIODE GEN PURP 100V 1A DO41 |
120,497 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Not For New Designs | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
1N4001-TDIODE GEN PURP 50V 1A DO41 |
82,985 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Not For New Designs | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
1N4003-TDIODE GEN PURP 200V 1A DO41 |
16,782 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Not For New Designs | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
BAL99-7-FDIODE GEN PURP 75V 300MA SOT23-3 |
428 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 300mA (DC) | -65°C ~ 150°C | 1.25 V @ 150 mA | |
|
|
1N4936-TDIODE GEN PURP 400V 1A DO41 |
86,434 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 200 ns | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1.2 V @ 1 A | |
|
|
1N4937-TDIODE GEN PURP 600V 1A DO41 |
28,248 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 200 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.2 V @ 1 A | |
|
|
1N4935-TDIODE GEN PURP 200V 1A DO41 |
21,784 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 200 ns | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 150°C | 1.2 V @ 1 A | |
|
1N4448WSF-7DIODE GEN PURP 75V 250MA SOD323F |
16,329 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 250mA | -65°C ~ 150°C | 1.25 V @ 150 mA | |
|
BAS16W-7-FDIODE GEN PURP 75V 150MA SOT323 |
40,841 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 75 V | 150mA | -65°C ~ 150°C | 1.25 V @ 150 mA |
