| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAS116T-7DIODE GEN PURP 85V 215MA SOT523 |
3,985 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 2pF @ 0V, 1MHz | 3 µs | 5 nA @ 75 V | 85 V | 215mA (DC) | -65°C ~ 150°C | 1.25 V @ 150 mA | |
|
BAV116W-7DIODE GEN PURP 130V 215MA SOD123 |
2,821 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 5pF @ 0V, 1MHz | 3 µs | 5 nA @ 75 V | 130 V | 215mA (DC) | -65°C ~ 150°C | 1.25 V @ 150 mA | |
|
MBRD835L-TDIODE SCHOTTKY 35V 8A DPAK |
3,734 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 1.4 mA @ 35 V | 35 V | 8A | -65°C ~ 125°C | 510 mV @ 8 A | |
|
|
MBRD1040-TDIODE SCHOTTKY 40V 10A DPAK |
3,563 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 300 µA @ 35 V | 40 V | 10A | -65°C ~ 150°C | 510 mV @ 10 A | |
|
MBRM5100-13DIODE SCHOTTKY 100V 5A |
2,630 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 5A | -65°C ~ 125°C | 810 mV @ 5 A | |
|
|
SDM10P45-7DIODE SCHOTTKY 45V 100MA SOT523 |
2,486 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Discontinued at Digi-Key | Surface Mount | 6pF @ 10V, 1MHz | - | 1 µA @ 10 V | 45 V | 100mA (DC) | -40°C ~ 125°C | 600 mV @ 50 mA | |
|
|
B130LAW-7DIODE SCHOTTKY 30V 1A SOD123 |
3,016 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 40pF @ 10V, 1MHz | - | 1 mA @ 30 V | 30 V | 1A | -55°C ~ 125°C | 420 mV @ 1 A | |
|
|
BAV3004W-7DIODE GEN PURP 300V 225MA SOD123 |
3,684 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 240 V | 300 V | 225mA (DC) | -65°C ~ 150°C | 1.25 V @ 200 mA | |
|
|
SBM340-13DIODE SCHOTTKY 40V 3A POWERMITE3 |
2,344 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 180pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 125°C | 500 mV @ 3 A | |
|
|
SBM540-13DIODE SCHOTTKY 40V 5A POWERMITE3 |
2,854 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 250pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 5A | -55°C ~ 125°C | 520 mV @ 5 A | |
|
|
SD101AW-13-FDIODE SCHOTTKY 60V 15MA SOD123 |
3,537 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 2pF @ 0V, 1MHz | 1 ns | 200 nA @ 50 V | 60 V | 15mA (DC) | -65°C ~ 125°C | 1 V @ 15 mA | |
|
SD103C-A-FDIODE SCHOTTKY 20V 350MA DO35 |
3,007 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Through Hole | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 10 V | 20 V | 350mA (DC) | 125°C (Max) | 600 mV @ 200 mA | |
|

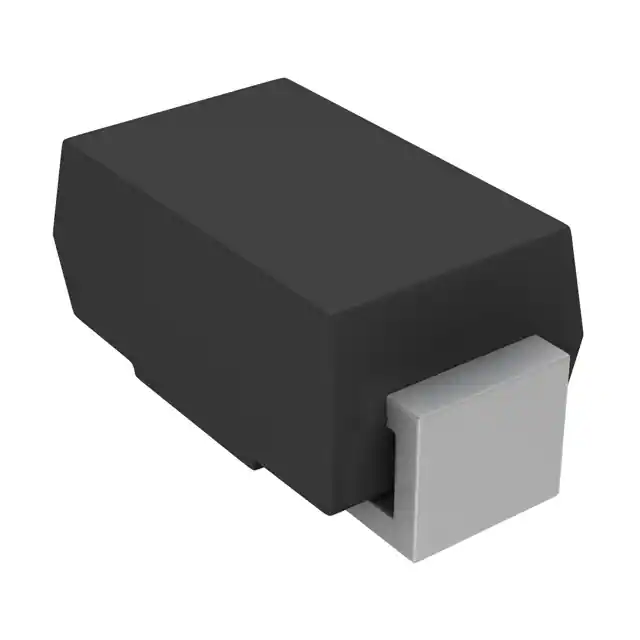

SBRT3M40SA-13DIODE SBR 40V 3A SMA |
3,179 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchSBR | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Super Barrier | Obsolete | Surface Mount | - | - | 70 µA @ 40 V | 40 V | 3A | -55°C ~ 150°C | 530 mV @ 3 A |
|
APD240VRTR-G1DIODE SCHOTTKY 40V 2A DO214AC |
3,097 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 2A | -65°C ~ 125°C | 500 mV @ 2 A | |
|
|
APD340VRTR-G1DIODE SCHOTTKY 40V 3A DO214AC |
2,924 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A | -50°C ~ 125°C | 500 mV @ 3 A | |
|
|
MBR2150VRTR-G1DIODE SCHOTTKY DO-214 |
2,988 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 100 µA @ 150 V | 150 V | 2A | -65°C ~ 150°C | 850 mV @ 2 A | |
|
SBRT05U10LP-7BDIODE SBR X1-DFN1006-2 |
2,402 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchSBR® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Super Barrier | Obsolete | Surface Mount | - | - | 1 mA @ 10 V | 10 V | 500mA | -65°C ~ 150°C | 390 mV @ 500 mA |
|
|
SBRT05U20LP-7BDIODE SBR X1-DFN1006-2 |
2,737 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchSBR® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Super Barrier | Obsolete | Surface Mount | 14pF @ 20V, 1MHz | 6 ns | 50 µA @ 20 V | 20 V | 500mA | -65°C ~ 150°C | 390 mV @ 500 mA |
|
DSR15U600DIODE GEN PURP 600V 15A TO220AC |
2,074 | 0.00 |
RFQ |
Datasheet |
Tube | DIODESTAR™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 50 µA @ 600 V | 600 V | 15A | -65°C ~ 175°C | 2.2 V @ 15 A |
|
|
DSR15V600DIODE GEN PURP 600V 15A TO220AC |
2,462 | 0.00 |
RFQ |
Datasheet |
Tube | DIODESTAR™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 50 µA @ 600 V | 600 V | 15A | -65°C ~ 175°C | 3.2 V @ 15 A |
