| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR507GP-TPDIODE GPP FAST 5A DO-201AD |
2,861 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 65pF @ 4V, 1MHz | 500 ns | - | 1000 V | 5A | -55°C ~ 150°C | - | |
|
|
UF5400GP-TPDIODE GP 50C 3A DO201AD |
2,908 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 75pF @ 4V, 1MHz | 50 ns | - | 50 V | 3A | -55°C ~ 150°C | - | |
|
|
UF5401GP-TPDIODE GP 100V 3A DO201AD |
2,248 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 75pF @ 4V, 1MHz | 50 ns | - | 100 V | 3A | -55°C ~ 150°C | - | |
|
|
UF5402GP-TPDIODE GP 200V 3A DO201AD |
2,133 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 75pF @ 4V, 1MHz | 50 ns | - | 200 V | 3A | -55°C ~ 150°C | - | |
|
|
UF5404GP-TPDIODE GP 400V 3A DO201AD |
2,173 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 75pF @ 4V, 1MHz | 50 ns | - | 400 V | 3A | -55°C ~ 150°C | - | |
|
|
UF5406GP-TPDIODE GP 600V 3A DO201AD |
2,693 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 50pF @ 4V, 1MHz | 75 ns | - | 600 V | 3A | -55°C ~ 150°C | - | |
|
|
UF5407GP-TPDIODE GP 700V 3A DO201AD |
2,193 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 50pF @ 4V, 1MHz | 75 ns | - | 800 V | 3A | -55°C ~ 150°C | - | |
|
UF5404GPL-TPDIODE ULT FAST GPP 3A DO-201AD |
3,960 | 0.26 |
RFQ |
- | RoHS | - | - | Last Time Buy | - | - | - | - | - | - | - | - | ||
|
MBR1550ULPS-TPDIODE SCHOTTKY 50V 15A TO277B |
3,053 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 300 µA @ 50 V | 50 V | 15A | -55°C ~ 150°C | 470 mV @ 15 A | |
|
|
10A01-TPDIODE GEN PURP 50V 10A R-6 |
3,742 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Not For New Designs | Through Hole | 150pF @ 4V, 1MHz | - | 10 µA @ 50 V | 50 V | 10A | -55°C ~ 150°C | 1 V @ 10 A | |
|
MBR760-BP7.5A SCHOTTKY RECTIFIER |
2,746 | 0.38 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 400pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 7.5A | -55°C ~ 150°C | 750 mV @ 7.5 A | |
|
|
MBR20U100L-TPDIODE SCHOTTKY 100V 20A TO277 |
3,644 | 0.39 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
.jpg)
|
SK104-TPDIODE SCHOTTKY 40V 10A DO214AB |
2,328 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 500pF @ 4V, 1MHz | - | 1 mA @ 40 V | 40 V | 10A | -55°C ~ 125°C | 650 mV @ 10 A | |
|
|
SK154-TPDIODE SCHOTTKY 40V 15A DO214AB |
2,103 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 500pF @ 4V, 1MHz | - | 1 mA @ 40 V | 40 V | 15A | -55°C ~ 125°C | 550 mV @ 15 A | |
|
|
SK1535-TPDIODE SCHOTTKY 35V 15A DO214AB |
1,240 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 500pF @ 4V, 1MHz | - | 1 mA @ 35 V | 35 V | 15A | -55°C ~ 125°C | 550 mV @ 15 A | |
|

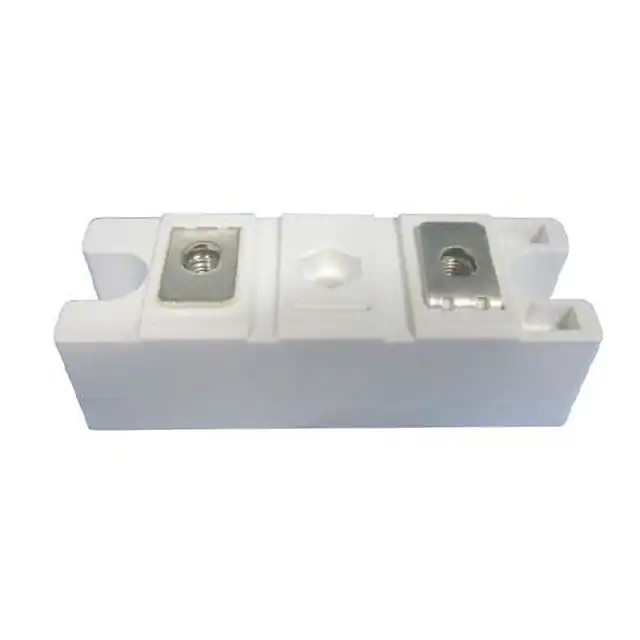

MF100U12F2-BP100A,1200V,FRED MODULES, F2 PACK |
3,499 | 49.33 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 135 ns | 1 mA @ 1200 V | 1200 V | 100A | -40°C ~ 150°C | 1.58 V @ 100 A | |
|
|
FR1B-TPDIODE GEN PURP 100V 1A DO214AA |
3,754 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
1N4001DIODE GEN PURP 50V 1A DO41 |
3,909 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 2 µs | 5 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
1N4002DIODE GEN PURP 100V 1A DO41 |
2,728 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 2 µs | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
1N4003DIODE GEN PURP 200V 1A DO41 |
2,423 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 2 µs | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
