| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES1A-TPDIODE GEN PURP 50V 1A DO214AC |
2,407 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 45pF @ 4V, 1MHz | 50 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 975 mV @ 1 A | |
|
|
ES1B-TPDIODE GEN PURP 100V 1A DO214AC |
2,067 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 975 mV @ 1 A | |
|
|
ES1G-TPDIODE GEN PURP 400V 1A DO214AC |
3,602 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 75 ns | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.35 V @ 1 A | |
|
|
ES1J-TPDIODE GEN PURP 600V 1A DO214AC |
3,729 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 45pF @ 4V, 1MHz | 75 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.35 V @ 1 A | |
|
|
ES1K-TPDIODE GEN PURP 800V 1A DO214AC |
2,001 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
|
ES1M-TPDIODE GEN PURP 1KV 1A DO214AC |
2,464 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 45pF @ 4V, 1MHz | 100 ns | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
|
GS1A-TPDIODE GEN PURP 50V 1A DO214AC |
57,000 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
GS1B-TPDIODE GEN PURP 100V 1A DO214AC |
2,996 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
GS1D-TPDIODE GEN PURP 200V 1A DO214AC |
3,732 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
GS1G-TPDIODE GEN PURP 400V 1A DO214AC |
3,944 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
GS1J-TPDIODE GEN PURP 600V 1A DO214AC |
3,345 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
GS1K-TPDIODE GEN PURP 800V 1A DO214AC |
2,069 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
GS1ME-TPDIODE GEN PURP 1KV 1A DO214AC |
3,883 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
GS1M-TPDIODE GEN PURP 1KV 1A DO214AC |
3,209 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 10 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
R2000-TPDIODE GEN PURP 2KV 500MA DO41 |
2,393 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 30pF @ 4V, 1MHz | - | 5 µA @ 2000 V | 2000 V | 500mA | -55°C ~ 150°C | 3 V @ 500 mA | |
|
R3000-TPDIODE GEN PURP 3KV 200MA DO15 |
2,510 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | 30pF @ 4V, 1MHz | - | 5 µA @ 3000 V | 3000 V | 200mA | -55°C ~ 150°C | 4 V @ 500 mA | |
|

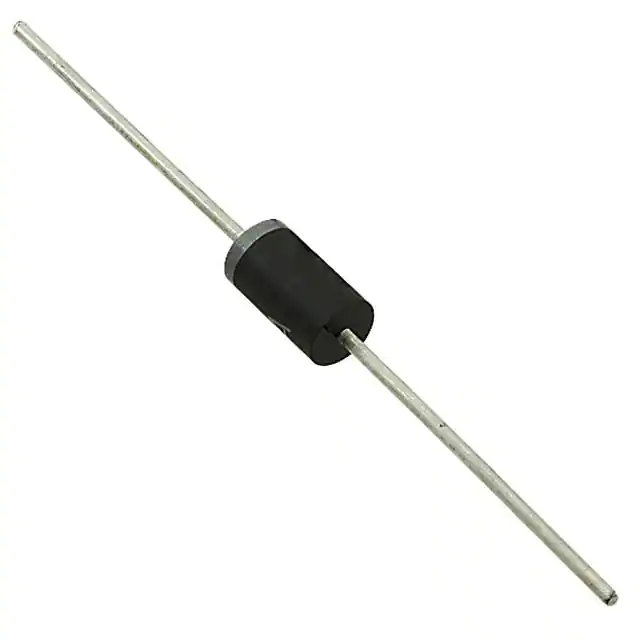

SF35-TPDIODE GEN PURP 300V 3A DO201AD |
2,155 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 80pF @ 4V, 1MHz | 35 ns | 5 µA @ 300 V | 300 V | 3A | -55°C ~ 125°C | 1.3 V @ 3 A | |
|

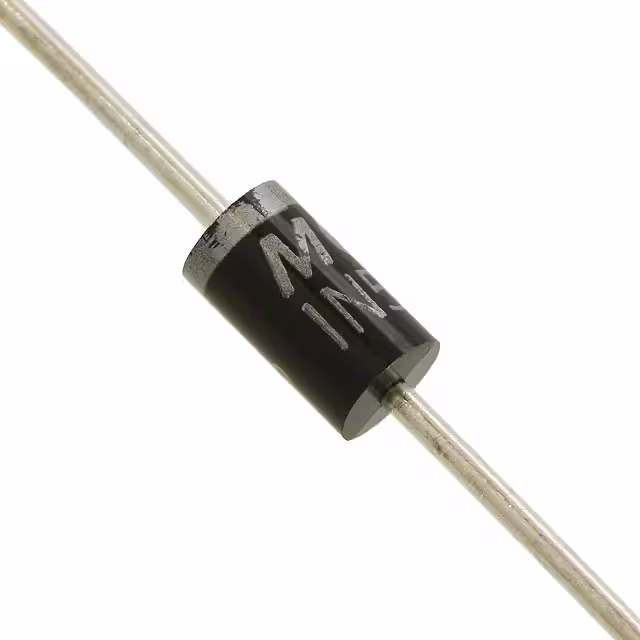

UF5407-TPDIODE GEN PURP 800V 3A DO201AD |
2,358 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 50pF @ 4V, 1MHz | 75 ns | 10 µA @ 800 V | 800 V | 3A | -55°C ~ 150°C | 1.7 V @ 3 A | |
|
MBR0560L-TPDIODE SCHOTTKY 60V 500MA SOD123 |
3,397 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 30pF @ 4V, 1MHz | - | 200 µA @ 60 V | 60 V | 500mA | -55°C ~ 150°C | 700 mV @ 500 mA | ||
|
|
MBR0580L-TPDIODE SCHOTTKY 80V 500MA SOD123 |
3,333 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 30pF @ 4V, 1MHz | - | 200 µA @ 80 V | 80 V | 500mA | -55°C ~ 150°C | 800 mV @ 500 mA |
