| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSI30-12AS-TRLDIODE GEN PURP 1.2KV 30A TO263 |
3,592 | 2.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 400V, 1MHz | - | 40 µA @ 1200 V | 1200 V | 30A | -40°C ~ 175°C | 1.29 V @ 30 A | |
|
|
DSI30-16AS-TRLDIODE GEN PURP 1.6KV 30A TO263 |
2,469 | 2.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 400V, 1MHz | - | 40 µA @ 1600 V | 1600 V | 30A | -40°C ~ 175°C | 1.29 V @ 30 A | |
|
DSS16-01ADIODE SCHOTTKY 100V 16A TO220AC |
2,674 | 1.78 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 100 V | 100 V | 16A | -55°C ~ 175°C | 790 mV @ 15 A | |
|
|
DSEI12-10ADIODE GEN PURP 1KV 12A TO220AC |
3,767 | 1.85 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 250 µA @ 1000 V | 1000 V | 12A | -40°C ~ 150°C | 2.7 V @ 12 A | |
|
|
DSA30I150PADIODE SCHOTTKY 150V 30A TO220AC |
3,047 | 1.85 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 900 µA @ 150 V | 150 V | 30A | -55°C ~ 175°C | 930 mV @ 30 A | |
|
|
DPG60IM300PC-TRLDIODE GEN PURP 300V 60A TO263 |
2,526 | 2.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HiPerFRED²™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 1 µA @ 300 V | 300 V | 60A | -55°C ~ 175°C | 1.43 V @ 60 A |
|

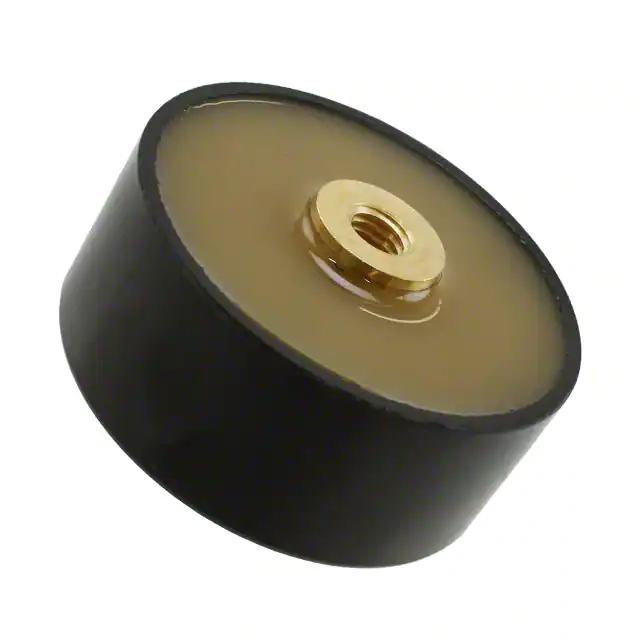

UGE3126AY4DIODE GEN PURP 24KV 2A UGE |
2,169 | 96.99 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 1 mA @ 24000 V | 24000 V | 2A | - | 18 V @ 3 A | |
|
DSEP6-06AS-TRLDIODE GEN PURP 600V 6A TO252AA |
2,326 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 20 ns | 50 µA @ 600 V | 600 V | 6A | -40°C ~ 175°C | 2.02 V @ 6 A |
|
|
DPG15I200PADIODE GEN PURP 200V 15A TO220AC |
2,892 | 1.50 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 1 µA @ 200 V | 200 V | 15A | -55°C ~ 175°C | 1.26 V @ 15 A |
|
DPG15I400PMDIODE GEN PURP 400V 15A TO220FP |
2,651 | 1.69 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 1 µA @ 400 V | 400 V | 15A | -55°C ~ 175°C | 1.39 V @ 15 A |
|
|
DHG10I1200PADIODE GEN PURP 1.2KV 10A TO220AC |
2,323 | 2.01 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 15 µA @ 1200 V | 1200 V | 10A | -55°C ~ 150°C | 2.22 V @ 10 A | |
|
|
DSI30-12AS-TUBDIODE GEN PURP 1.2KV 30A TO263 |
3,960 | 2.84 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 400V, 1MHz | - | 40 µA @ 1200 V | 1200 V | 30A | -40°C ~ 175°C | 1.29 V @ 30 A | |
|
|
DPG10IM300UC-TRLDIODE GEN PURP 300V 10A TO252 |
2,675 | 1.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 1 µA @ 300 V | 300 V | 10A | -55°C ~ 175°C | 1.27 V @ 10 A |
|
|
DSEI36-06AS-TUBDIODE GEN PURP 600V 37A TO263AB |
3,802 | 2.96 |
RFQ |
Datasheet |
Tube | FRED | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 100 µA @ 600 V | 600 V | 37A | -40°C ~ 150°C | 1.6 V @ 37 A |
|
|
DSEP29-06ADIODE GEN PURP 600V 30A TO220AC |
2,198 | 3.18 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 250 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 1.61 V @ 30 A |
|
DPG30I400HADIODE GEN PURP 400V 30A TO247 |
2,791 | 3.43 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 32pF @ 200V, 1MHz | 45 ns | 1 µA @ 400 V | 400 V | 30A | -55°C ~ 175°C | 1.41 V @ 30 A |
|
|
DSI45-08ADIODE GEN PURP 800V 45A TO247AD |
3,234 | 3.98 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 20 µA @ 800 V | 800 V | 45A | -40°C ~ 175°C | 1.28 V @ 45 A | |
|
|
DSEI30-12ADIODE GEN PURP 1.2KV 26A TO247AD |
2,797 | 4.04 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 750 µA @ 1200 V | 1200 V | 26A | -40°C ~ 150°C | 2.55 V @ 30 A | |
|
DSA1-12DDIODE AVALANCHE 1.2KV 2.3A |
2,608 | 4.15 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | - | 700 µA @ 1200 V | 1200 V | 2.3A | -40°C ~ 150°C | 1.34 V @ 7 A | |
|
|
DNA30E2200PADIODE GEN PURP 2.2KV 30A TO220AC |
3,513 | 4.21 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 7pF @ 700V, 1MHz | - | 40 µA @ 2200 V | 2200 V | 30A | -55°C ~ 175°C | 1.26 V @ 30 A |
