Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-1N1206RADIODE GEN PURP 600V 12A DO203AA |
3,844 | 6.23 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 600 V | 600 V | 12A | -65°C ~ 200°C | 1.35 V @ 12 A | |
|
VS-45EPF06LHM3DIODES - TO-247-E3 |
3,195 | 5.39 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 180 ns | 100 µA @ 600 V | 600 V | 45A | -40°C ~ 150°C | 1.31 V @ 45 A |
|
SD103AWS-7-FDIODE SCHOTTKY 40V 350MA SOD323 |
2,901 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 28pF @ 0V, 1MHz | 10 ns | 5 µA @ 30 V | 40 V | 350mA (DC) | -65°C ~ 125°C | 600 mV @ 200 mA | |
|
IDV30E65D2XKSA1DIODE GEN PURP 650V 30A TO220-2 |
3,915 | 2.42 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 42 ns | 40 µA @ 650 V | 650 V | 30A (DC) | -40°C ~ 175°C | 2.2 V @ 30 A | |
|
VS-4EGU06-M3/5BTDIODE GEN PURP 600V 4A DO214AA |
2,436 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 39 ns | 3 µA @ 600 V | 600 V | 4A | -55°C ~ 175°C | 1.3 V @ 4 A |
|
STPS1H100AYDIODE SCHOTTKY 100V 1A SMA |
2,874 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Q Automotive | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 4 µA @ 100 V | 100 V | 1A | -40°C ~ 175°C | 770 mV @ 1 A |
|
SICRB20650ATRDIODE SCHOTTKY SILICON CARBIDE S |
3,201 | 6.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 1190pF @ 0V, 1MHz | - | 100 µA @ 650 V | 650 V | 20A | 175°C (Max) | 1.8 V @ 20 A | |
|
VS-25F60DIODE GEN PURP 600V 25A DO203AA |
2,625 | 5.91 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 600 V | 600 V | 25A | -65°C ~ 175°C | 1.3 V @ 78 A | |
|
|
SD107WS-7-FDIODE SCHOTTKY 30V 100MA SOD323 |
2,623 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 10V, 1MHz | - | 1 µA @ 25 V | 30 V | 100mA (DC) | -65°C ~ 150°C | 800 mV @ 100 mA | |
|
DSS25-0045ADIODE SCHOTTKY 45V 25A TO220AC |
113 | 2.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 45 V | 45 V | 25A | -55°C ~ 175°C | 690 mV @ 25 A | |
|
DFLS240-7DIODE SCHOTTKY 40V 2A POWERDI123 |
2,494 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 28pF @ 10V, 1MHz | - | 20 µA @ 40 V | 40 V | 2A | -65°C ~ 125°C | 700 mV @ 2 A | |
|
STPS2L40UDIODE SCHOTTKY 40V 2A SMB |
2,600 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 220 µA @ 40 V | 40 V | 2A | 150°C (Max) | 430 mV @ 2 A | |
|
LFUSCD10120ADIODE SC SCHOTKY 1200V 10A TO220 |
500 | 6.51 |
RFQ |
Datasheet |
Tube,Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 500pF @ 1V, 1MHz | 0 ns | 250 µA @ 1200 V | 1200 V | 10A (DC) | 175°C (Max) | 1.7 V @ 10 A | |
|
VS-25F20DIODE GEN PURP 200V 25A DO203AA |
3,808 | 6.06 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 200 V | 200 V | 25A | -65°C ~ 175°C | 1.3 V @ 78 A | |
|

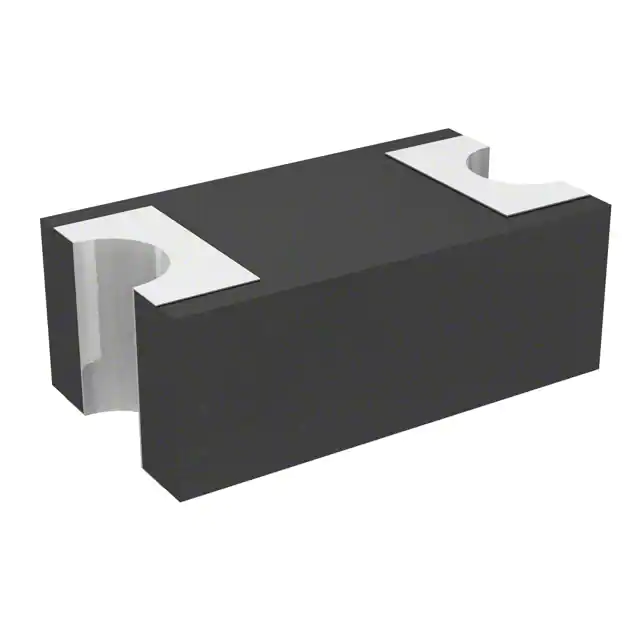

SD0603S040S0R2DIODE SCHOTTKY 40V 200MA 0603 |
3,517 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 1 µA @ 40 V | 40 V | 200mA (DC) | -55°C ~ 125°C | 450 mV @ 200 mA | |
|
STTH8R06FPDIODE GEN PURP 600V 8A TO220FP |
477 | 2.51 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 30 µA @ 600 V | 600 V | 8A | 175°C (Max) | 2.9 V @ 8 A | |
|
ES3AB-13-FDIODE GEN PURP 50V 3A SMB |
3,787 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 25 ns | 10 µA @ 50 V | 50 V | 3A | -55°C ~ 150°C | 900 mV @ 3 A | |
|
|
B360AM-13-FDIODE SCHOTTKY 60V 3A SMA |
2,382 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 4V, 1MHz | - | 100 µA @ 60 V | 60 V | 3A | -55°C ~ 150°C | 700 mV @ 3 A |
|
VS-1N1183DIODE GEN PURP 50V 35A DO203AB |
2,649 | 7.22 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 mA @ 50 V | 50 V | 35A | -65°C ~ 190°C | 1.7 V @ 110 A | |
|
VS-25FR60DIODE GEN PURP 600V 25A DO203AA |
2,201 | 6.61 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 600 V | 25A | -65°C ~ 175°C | 1.3 V @ 78 A |
