| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCS220AGC17DIODE SCHOTTKY 650V 20A TO220AC |
3,002 | 6.69 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 730pF @ 1V, 1MHz | 0 ns | 400 µA @ 600 V | 650 V | 20A (DC) | 175°C | 1.55 V @ 20 A | ||
|
|
SCS215KGC17DIODE SCHOTTKY 1.2KV 15A TO220AC |
3,627 | 10.31 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 790pF @ 1V, 1MHz | 0 ns | 300 µA @ 1200 V | 1200 V | 15A (DC) | 175°C | 1.6 V @ 15 A | ||
|
|
SCS220KGC17DIODE SCHOTTKY 1.2KV 20A TO220AC |
2,895 | 11.64 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1050pF @ 1V, 1MHz | 0 ns | 400 µA @ 1200 V | 1200 V | 20A (DC) | 175°C | 1.6 V @ 20 A | ||
|
1SS400SMT2RDIODE GEN PURP 80V 100MA EMD2 |
3,407 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0.5V, 1MHz | 4 ns | 100 nA @ 80 V | 80 V | 100mA | 150°C (Max) | 1.2 V @ 100 mA | |
|
1SS355VMTE-17DIODE GEN PURP 80V 100MA UMD2 |
2,443 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0.5V, 1MHz | 4 ns | 100 nA @ 80 V | 80 V | 100mA | 150°C (Max) | 1.2 V @ 100 mA | |
|
RBS2LAM40BTRRBS2LAM40B IS SUPER LOW VF< |
2,446 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 2A | 125°C | 410 mV @ 2 A | |
|
|
RBS3LAM40ATRRBS3LAM40A IS SUPER LOW VF< |
2,879 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 3A | 125°C | 490 mV @ 3 A | |
|
|
RB521SM-30FHT2RDIODE RECTIFIER FRD 30V-VR 0.2 |
2,079 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 30 µA @ 10 V | 30 V | 200mA | 150°C (Max) | 470 mV @ 200 mA |
|
BAS40HYFHT11640V, 120MA, SOT-23, SINGLE, SCHO |
2,786 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 10 µA @ 40 V | 40 V | 120mA (DC) | 150°C | 1 V @ 40 mA |
|
RB162MM-40TRDIODE SCHOTTKY 40V 1A PMDU |
2,244 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 1A | 150°C (Max) | 550 mV @ 1 A | |
|
RSX051VYM30FHTRDIODE SCHOTTKY 30V 500MA TUMD2M |
2,077 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | 9.6 ns | 200 µA @ 30 V | 30 V | 500mA | 150°C (Max) | 390 mV @ 500 mA |
|
|
RF05VYM2SFHTRSUPER FAST RECOVERY DIODES (CORR |
3,170 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 10 µA @ 200 V | 200 V | 500mA | 150°C (Max) | 980 mV @ 500 mA |
|
|
BAS40HYT11640V, 120MA, SOT-23, SINGLE, SCHO |
2,029 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 10 µA @ 40 V | 40 V | 120mA (DC) | 150°C | 1 V @ 40 mA | |
|
RB521CS-30FHT2RASCHOTTKY BARRIER DIODES CORRESP |
8,000 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 10 µA @ 10 V | 30 V | 100mA | 150°C (Max) | 350 mV @ 10 mA |
|
RB058L-60DDTE25DIODE SCHOTTKY 60V 3A PMDS |
2,732 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 4 µA @ 60 V | 60 V | 3A | 150°C (Max) | 640 mV @ 3 A |
|

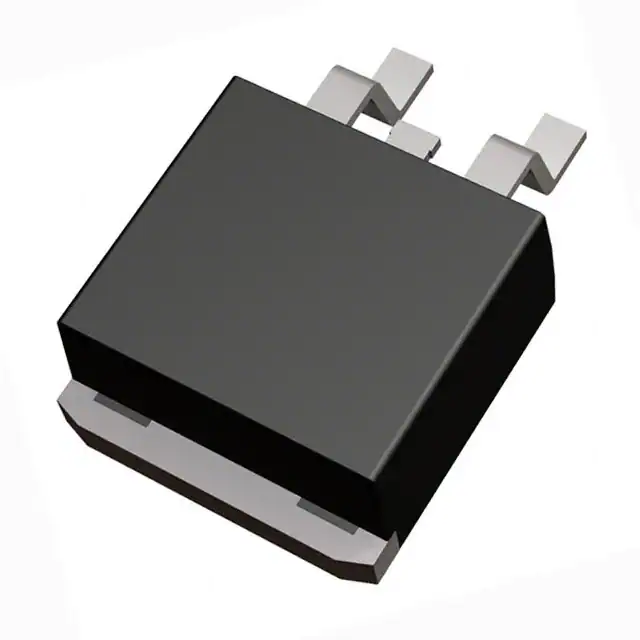

SCS206AJTLLDIODE SCHOTTKY 650V 6A TO263AB |
3,536 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 219pF @ 1V, 1MHz | 0 ns | 120 µA @ 600 V | 650 V | 6A (DC) | 175°C (Max) | 1.55 V @ 6 A | |
.jpg)
|
RFNL5TJ6SFHGC9SUPER FAST RECOVERY DIODE - RFNL |
3,700 | 2.12 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 130 ns | 10 µA @ 600 V | 600 V | 5A | 150°C | 1.3 V @ 5 A |
|
|
RB162VAM-20TRDIODE SCHOTTKY 20V 1A TUMD2M |
3,066 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.2 mA @ 20 V | 20 V | 1A | 125°C (Max) | 400 mV @ 1 A | |
|
|
RB520VM-30FHTE-17RB520VM-30FH IS LOW V F |
3,840 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Not For New Designs | Surface Mount | - | - | 1 µA @ 10 V | 30 V | 200mA | 150°C (Max) | 580 mV @ 200 mA |
|
RB420DT146DIODE SCHOTTKY 40V 100MA SMD3 |
2,192 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 6pF @ 10V, 1MHz | - | 1 µA @ 10 V | 40 V | 100mA | 125°C (Max) | 450 mV @ 10 mA |
