Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D690S20TXPSA1DIODE GEN PURP 2KV 690A |
3,862 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | 9 µs | 25 mA @ 2000 V | 2000 V | 690A | -40°C ~ 150°C | 2.7 V @ 3000 A | |
|
S15KC R7GDIODE GEN PURP 800V 15A DO214AB |
2,620 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 93pF @ 4V, 1MHz | - | 1 µA @ 800 V | 800 V | 15A | -55°C ~ 150°C | 1.1 V @ 15 A | |
|
|
D690S22TXPSA1DIODE GEN PURP 2.2KV 690A |
3,517 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | 9 µs | 25 mA @ 2200 V | 2200 V | 690A | -40°C ~ 150°C | 2.7 V @ 3000 A | |
|

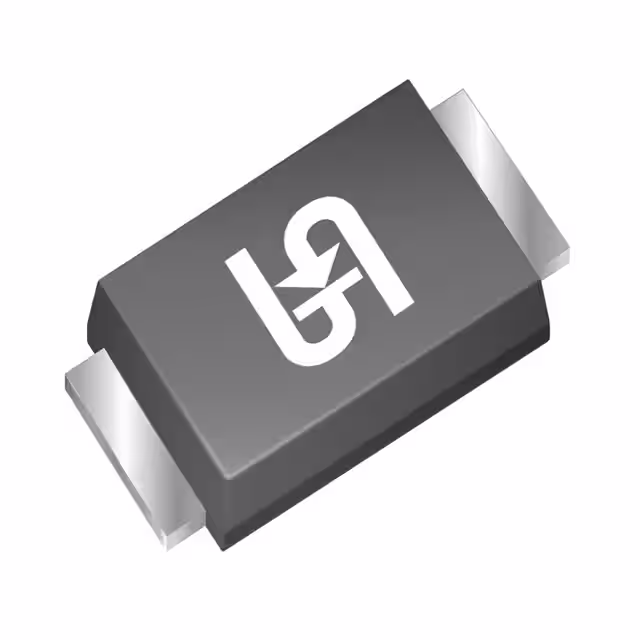

S1MFL RVGDIODE GEN PURP 1KV 1A SOD123FL |
3,722 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 7pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
D690S24TXPSA1DIODE GEN PURP 2.4KV 690A |
2,060 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | 9 µs | 25 mA @ 2400 V | 2400 V | 690A | -40°C ~ 150°C | 2.7 V @ 3000 A | |
|
|
S3D R7GDIODE GEN PURP 200V 3A DO214AB |
3,135 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | - | 10 µA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 1.15 V @ 3 A | |
|
|
D690S26TXPSA1DIODE GEN PURP 2.6KV 690A |
3,496 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | 9 µs | 25 mA @ 2600 V | 2600 V | 690A | -40°C ~ 150°C | 2.7 V @ 3000 A | |
|
|
S3J R7GDIODE GEN PURP 600V 3A DO214AB |
2,073 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | - | 10 µA @ 600 V | 600 V | 3A | -55°C ~ 150°C | 1.15 V @ 3 A | |
|
|
D475N36BXPSA1DIODE GEN PURP 3.6KV 475A |
3,876 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Stud Mount | - | - | 40 mA @ 3600 V | 3600 V | 475A | -40°C ~ 160°C | - | |
|
|
S4A R7GDIODE GEN PURP 50V 4A DO214AB |
3,164 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | - | 10 µA @ 50 V | 50 V | 4A | -55°C ~ 150°C | 1.15 V @ 4 A | |
|
|
D721S35TXPSA1DIODE RECTIFIER 3500V 600A |
2,191 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | |
|
|
S4B R7GDIODE GEN PURP 100V 4A DO214AB |
3,465 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | - | 10 µA @ 100 V | 100 V | 4A | -55°C ~ 150°C | 1.15 V @ 4 A | |
|
|
D721S45TXPSA1DIODE GEN PURP 4.5KV 1080A |
2,749 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | 140 mA @ 4500 V | 4500 V | 1080A | -40°C ~ 125°C | 3.5 V @ 2500 A | |
|
|
S4K R7GDIODE GEN PURP 800V 4A DO214AB |
3,353 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | - | 10 µA @ 800 V | 800 V | 4A | -55°C ~ 150°C | 1.15 V @ 4 A | |
|
|
D721S45TPRXPSA1DIODE RECTIFIER 3500V 600A |
2,517 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | |
|
|
S5A R7GDIODE GEN PURP 50V 5A DO214AB |
2,526 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | 1.5 µs | 10 µA @ 50 V | 50 V | 5A | -55°C ~ 150°C | 1.15 V @ 5 A | |
|
|
D740N36TXPSA1DIODE GEN PURP 3.6KV 750A |
3,080 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | 70 mA @ 3600 V | 3600 V | 750A | -40°C ~ 160°C | 1.45 V @ 700 A | |
|
|
S5B R7GDIODE GEN PURP 100V 5A DO214AB |
3,822 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | 1.5 µs | 10 µA @ 100 V | 100 V | 5A | -55°C ~ 150°C | 1.15 V @ 5 A | |
|
|
D740N40TXPSA1DIODE GEN PURP 4KV 750A |
3,870 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | 70 mA @ 4000 V | 4000 V | 750A | -40°C ~ 160°C | 1.45 V @ 700 A | |
|
|
S5D R7GDIODE GEN PURP 200V 5A DO214AB |
3,882 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | 1.5 µs | 10 µA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 1.15 V @ 5 A |
