Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSEP60-04ADIODE GEN PURP 400V 60A TO247 |
2,410 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 650 µA @ 400 V | 400 V | 60A | -55°C ~ 175°C | 1.5 V @ 60 A |
|
JAN1N5621USDIODE GEN PURP 800V 1A D5A |
2,441 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | - | 300 ns | 500 nA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
DSEP75-06ARDIODE GP 600V 75A ISOPLUS247 |
2,973 | 0.00 |
RFQ |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 1 mA @ 600 V | 600 V | 75A | -55°C ~ 175°C | 2.02 V @ 75 A | |
|
JAN1N5804USDIODE GEN PURP 100V 2.5A D5A |
3,542 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 100 V | 100 V | 2.5A | -65°C ~ 175°C | 975 mV @ 2.5 A |
|
DSEP8-02ADIODE GEN PURP 200V 8A TO220AC |
2,791 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 25 ns | 50 µA @ 200 V | 200 V | 8A | -55°C ~ 175°C | 1.3 V @ 8 A |
|
|
JAN1N5807DIODE GEN PURP 50V 6A AXIAL |
3,331 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 50 V | 50 V | 6A | -65°C ~ 175°C | 875 mV @ 4 A |
|
|
DSEP8-03ADIODE GEN PURP 300V 10A TO220AC |
2,280 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 60 µA @ 300 V | 300 V | 10A | -55°C ~ 175°C | 1.75 V @ 10 A |
|
|
JAN1N6622DIODE GEN PURP 660V 2A AXIAL |
3,407 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 660 V | 660 V | 2A | -65°C ~ 150°C | 1.6 V @ 2 A |
|
DSEP8-03ASDIODE GEN PURP 300V 8A TO252AA |
2,195 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 60 µA @ 300 V | 300 V | 8A | -40°C ~ 175°C | 1.69 V @ 8 A |
|

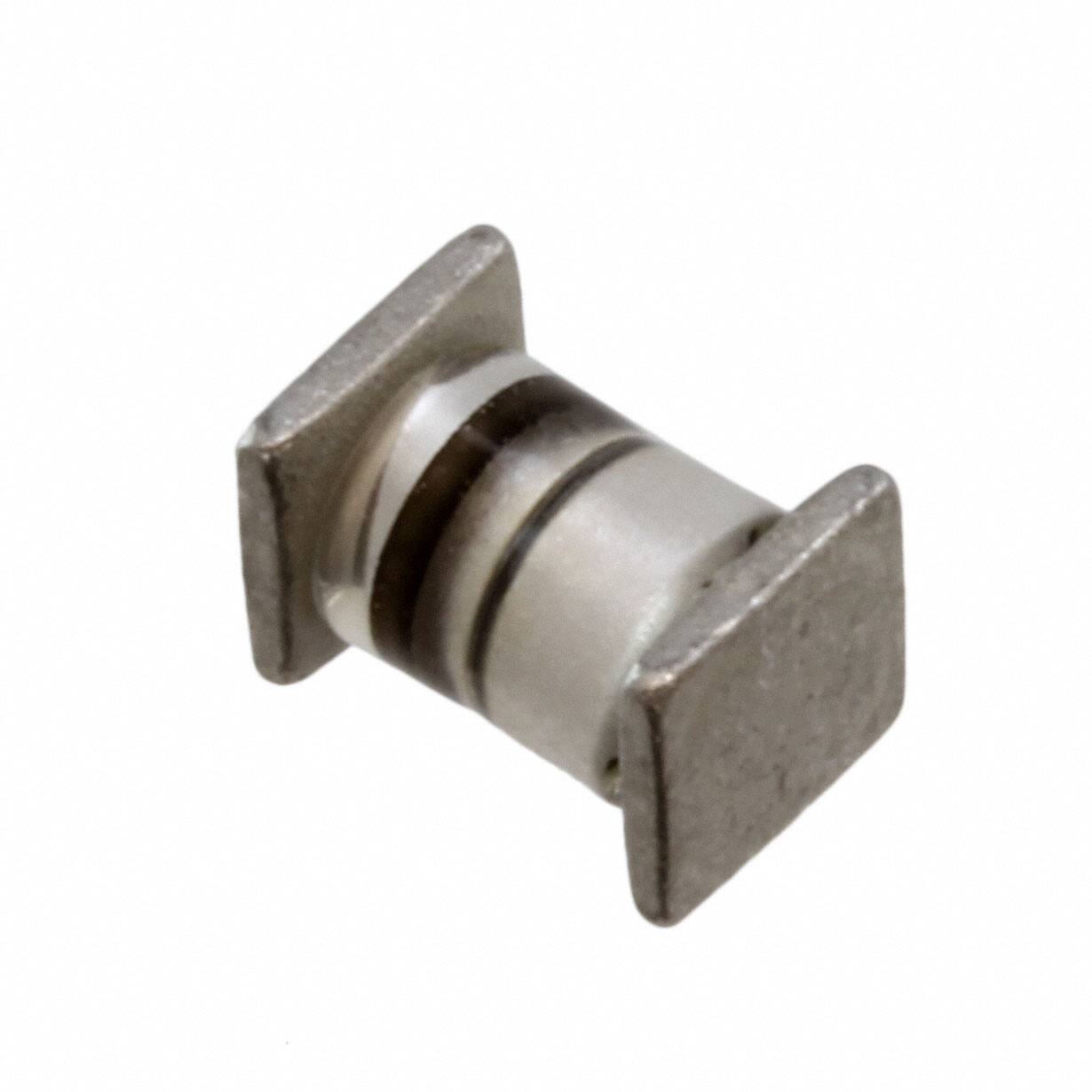

JAN1N6627USDIODE GEN PURP 440V 1.75A D5B |
2,753 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 440 V | 440 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 1.2 A |
|
DSI17-08ADIODE AVALANCHE 800V 25A DO203AA |
3,181 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 4 mA @ 800 V | 800 V | 25A | -40°C ~ 180°C | 1.36 V @ 55 A | |
|
|
JAN1N6629DIODE GEN PURP 880V 1.4A AXIAL |
3,648 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 2 µA @ 800 V | 880 V | 1.4A | -65°C ~ 175°C | 1.4 V @ 1.4 A |
|
|
DSI17-12ADIODE AVALANCHE 1.2KV 25A DO203 |
2,694 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 4 mA @ 1200 V | 1200 V | 25A | -40°C ~ 180°C | 1.36 V @ 55 A | |
|
|
JANTX1N5419USDIODE GEN PURP 500V 3A D5B |
2,527 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | - | 250 ns | 1 µA @ 500 V | 500 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
DSI35-08ADIODE GEN PURP 800V 49A DO203AB |
2,552 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | 4 mA @ 800 V | 800 V | 49A | -40°C ~ 180°C | 1.55 V @ 150 A | |
|
|
JANTX1N6624USDIODE GEN PURP 990V 1A D5A |
3,179 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 10pF @ 10V, 1MHz | 50 ns | 500 nA @ 990 V | 990 V | 1A | -65°C ~ 150°C | 1.55 V @ 1 A |
|
|
DSI75-08BDIODE GEN PURP 800V 110A DO203AB |
2,238 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | 6 mA @ 800 V | 800 V | 110A | -40°C ~ 180°C | 1.17 V @ 150 A | |
|
|
JANTX1N6629USDIODE GEN PURP 880V 1.4A D5B |
3,655 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 10V, 1MHz | 50 ns | 2 µA @ 880 V | 880 V | 1.4A | -65°C ~ 150°C | 1.4 V @ 1.4 A |
75.jpg)
|
DSI75-12BDIODE GEN PURP 1.2KV 110A DO203 |
3,560 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | 6 mA @ 1200 V | 1200 V | 110A | -40°C ~ 180°C | 1.17 V @ 150 A | |
|
JANTXV1N4248DIODE GEN PURP 800V 1A AXIAL |
2,834 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/286 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | - | 5 µs | 1 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.3 V @ 3 A |
