Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

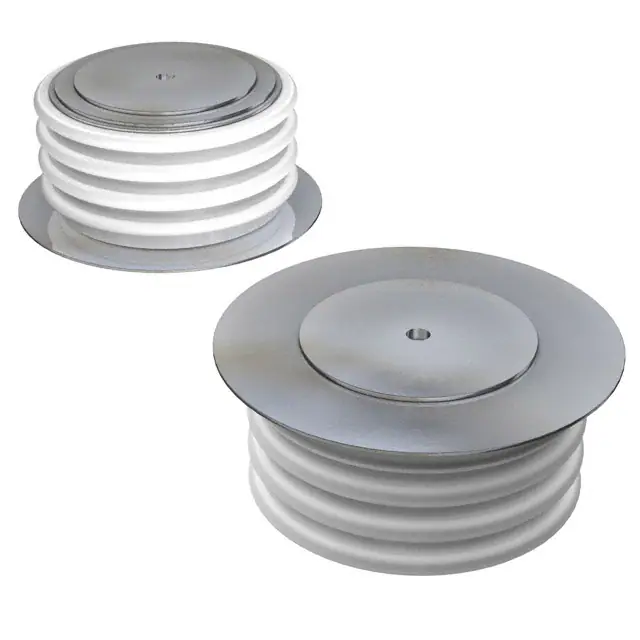

R7221805ASOODIODE GP 1.8KV 500A DO200AB |
3,401 | 122.27 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 3 µs | 50 mA @ 1800 V | 1800 V | 500A | - | 2.25 V @ 1500 A | |
|
VS-1N1184RDIODE GEN PURP 100V 35A DO203AB |
3,514 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 mA @ 100 V | 100 V | 35A | -65°C ~ 190°C | 1.7 V @ 110 A | |
|
VS-SD703C25S30LDIODE GP 2.5KV 790A DO200AB |
3,366 | 122.51 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | 3 µs | 50 mA @ 2500 V | 2500 V | 790A | - | 1.85 V @ 1500 A | |
|
|
A430NDIODE GP 800V 1000A DO200AB |
2,287 | 122.61 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 10 µs | 50 mA @ 800 V | 800 V | 1000A | - | 1.42 V @ 3140 A | |
|
VS-303URA160DIODE GP 1.6KV 330A DO205AB |
3,337 | 122.64 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | - | 1600 V | 330A | -40°C ~ 180°C | 1.46 V @ 942 A | |
|
|
183NQ100RDIODE SCHOTTKY 100V 180A HALFPAK |
3,825 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 4150pF @ 5V, 1MHz | - | 4.5 mA @ 100 V | 100 V | 180A | - | 950 mV @ 180 A | |
|
|
SM100FDIODE GEN PURP 10KV 130MA AXIAL |
3,113 | 122.67 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 3.2pF @ 5V, 1MHz | 2.5 µs | 1 µA @ 10000 V | 10000 V | 130mA | -65°C ~ 175°C | 10 V @ 100 mA | |
|
|
240NQ040DIODE SCHOTTKY 40V 240A HALFPAK |
2,091 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 10300pF @ 5V, 1MHz | - | 20 mA @ 40 V | 40 V | 240A | - | 610 mV @ 240 A | |
|
|
VS-301U250DIODE GEN PURP 2.5KV 300A DO205 |
3,116 | 123.08 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 15 mA @ 500 V | 2500 V | 300A | -40°C ~ 180°C | 1.46 V @ 942 A | |
|
|
240NQ045DIODE SCHOTTKY 45V 240A HALFPAK |
3,306 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 10300pF @ 5V, 1MHz | - | 20 mA @ 45 V | 45 V | 240A | - | 610 mV @ 240 A | |
|
|
60HQ100SCHOTTKY DIODE |
3,181 | 123.12 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Stud Mount | - | - | - | 100 V | 60A | - | 890 mV @ 60 A | ||
|
|
240NQ045RDIODE SCHOTTKY 45V 240A HALFPAK |
3,988 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 10300pF @ 5V, 1MHz | - | 20 mA @ 45 V | 45 V | 240A | - | 610 mV @ 240 A | |
|
|
A330PBDIODE GEN PURP 1.2KV 1200A DO200 |
2,398 | 123.15 |
RFQ |
Datasheet |
Bulk | RoHS | - | Standard | Active | Chassis Mount | - | - | - | 1200 V | 1200A | -40°C ~ 200°C | - | |
|
|
241NQ035DIODE SCHOTTKY 35V 240A HALFPAK |
2,024 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 10300pF @ 5V, 1MHz | - | 20 mA @ 35 V | 35 V | 240A | - | 690 mV @ 240 A | |
|
|
R7001005XXUADIODE GEN PURP 1KV 550A DO200 |
2,929 | 123.20 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 15 µs | 50 mA @ 1000 V | 1000 V | 550A | -65°C ~ 150°C | 1.2 V @ 1500 A | |
|
|
241NQ045DIODE SCHOTTKY 45V 240A HALFPAK |
2,570 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 10300pF @ 5V, 1MHz | - | 20 mA @ 45 V | 45 V | 240A | - | 690 mV @ 240 A | |
|
|
R7001204XXUADIODE GEN PURP 1.2KV 450A DO200 |
2,063 | 123.20 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 1200 V | 1200 V | 450A | -65°C ~ 175°C | 1.6 V @ 1500 A | |
|
|
R7011005XXUADIODE GEN PURP 1KV 550A DO200 |
2,605 | 123.20 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 15 µs | 50 mA @ 1000 V | 1000 V | 550A | -65°C ~ 150°C | 1.2 V @ 1500 A | |
|
|
R7011204XXUADIODE GEN PURP 1.2KV 450A DO200 |
2,837 | 123.20 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 1200 V | 1200 V | 450A | -65°C ~ 175°C | 1.6 V @ 1500 A | |
|
|
241NQ045RDIODE SCHOTTKY 45V 240A HALFPAK |
2,371 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 10300pF @ 5V, 1MHz | - | 20 mA @ 45 V | 45 V | 240A | - | 690 mV @ 240 A |
