Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HVP15DIODE GEN PURP 15000V 750MA HVP |
264 | 4.98 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 5 µA @ 15000 V | 15000 V | 750mA | -55°C ~ 150°C | 14 V @ 750 mA | |
|
MURA110DIODE GEN PURP 100V 2A SMA |
4,500 | 0.85 |
RFQ |
Datasheet |
Bag | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 2 µA @ 100 V | 100 V | 2A | -65°C ~ 175°C | 875 mV @ 1 A | |
|
E2JF-F1-0000HFDIODE GEN PURP 600V 2A SMAF |
3,000 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 12pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1.7 V @ 2 A | |
|
|
PMEG6010ESBC,315NEXPERIA PMEG6010ESBC - RECTIFIE |
30,000 | 0.03 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
CMR3U-06M TR13 PBFREEDIODE GEN PURP 600V 3A SMC |
1,066 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 100 ns | 5 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.4 V @ 3 A | |
|

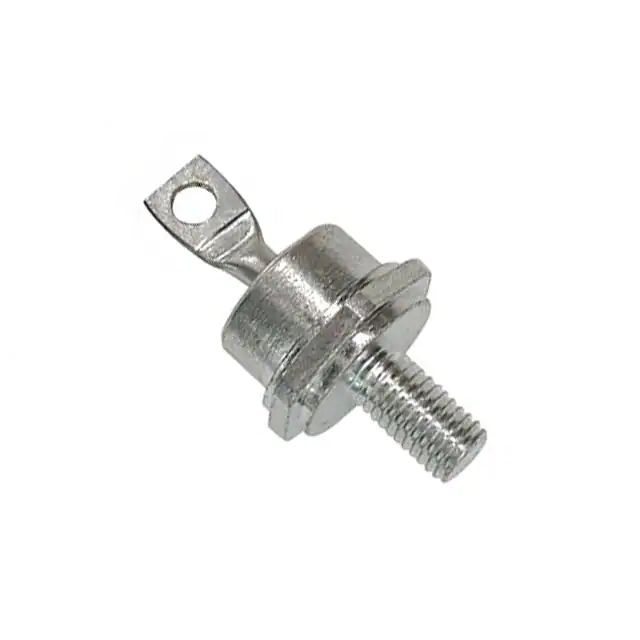

40HF60REC 40AMP 600V DO5 |
480 | 2.50 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 100 µA @ 600 V | 600 V | 40A | -65°C ~ 150°C | 1.3 V @ 40 A | |
|
RURU50100RECTIFIER DIODE |
2,668 | 5.05 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Chassis Mount | - | 200 ns | 500 µA @ 1000 V | 1000 V | 50A | -65°C ~ 175°C | 1.9 V @ 50 A | |
|
MBR1040HEWS-AU_R1_000A1SOD-323HE, SKY |
1,800 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 60pF @ 4V, 1MHz | - | 600 nA @ 32 V | 40 V | 1A | -55°C ~ 150°C | 580 mV @ 1 A |
|
HS2J-F1-0000HFDIODE GEN PURP 600V 2A DO214AA |
2,990 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1.7 V @ 2 A | |
|
1N457ATR1N457 - HIGH CONDUCTANCE LOW LEA |
30,000 | 0.03 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 8pF @ 0V, 1MHz | - | 25 nA @ 60 V | 70 V | 200mA | 175°C (Max) | 1 V @ 100 mA | |
|
MUR320S V7GDIODE GEN PURP 200V 3A DO214AB |
1,700 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | - | 25 ns | 5 µA @ 200 V | 200 V | 3A | -55°C ~ 175°C | 875 mV @ 3 A | |
|
|
1N5314FED 4.7 MA DO35 |
340 | 2.50 |
RFQ |
Datasheet |
Box | RoHS | - | Standard | Active | Through Hole | - | - | - | 100 V | - | -55°C ~ 200°C | - | |
|
NTE5835R-200 PRV 3A ANODE CASE |
112 | 5.10 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 1.2 V @ 3 A | |
|
HV6HV Rect., 6000V, 0.20A, 400ns |
2,240 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 400 ns | 3 µA @ 6000 V | 6000 V | 200mA | -50°C ~ 150°C | 6 V @ 200 mA | |
.jpg)
|
1N4007WSRECTIFIER DIODE 1KV 1A SOD-323 |
146,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | SOD-323 | RoHS | - | Standard | Active | Surface Mount | 5pF @ 4V, 1MHz | - | - | 1000 V | 1A | -55°C ~ 155°C | 1.1 V @ 1 A |
|
MMBD6050RECTIFIER DIODE, 0.2A, 70V |
27,000 | 0.03 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2.5pF @ 0V, 1MHz | 4 ns | 100 nA @ 50 V | 70 V | 200mA | -55°C ~ 150°C | 1.1 V @ 100 mA | |
|
|
S5A V7GDIODE GEN PURP 50V 5A DO214AB |
1,548 | 1.08 |
RFQ |
Datasheet |
Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 60pF @ 4V, 1MHz | 1.5 µs | 10 µA @ 50 V | 50 V | 5A | -55°C ~ 150°C | 1.15 V @ 5 A | |
|
SCS210AJTLLDIODE SCHOTTKY 650V 10A TO263AB |
3,789 | 4.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 365pF @ 1V, 1MHz | 0 ns | 200 µA @ 600 V | 650 V | 10A (DC) | 175°C (Max) | 1.55 V @ 10 A | |
|
NXPSC086506QDIODE SCHOTTKY 650V 8A TO220AC |
3,000 | 5.13 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 260pF @ 1V, 1MHz | 0 ns | 230 µA @ 650 V | 650 V | 8A | 175°C (Max) | 1.7 V @ 8 A | |
|
NTSJ30U80CTGNTSJ30U80 - SCHOTTKY RECTIFIER, |
1,250 | 0.89 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - |
