Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PNS40010ER,115NEXPERIA PNS40010ER - 400 V, 1 A |
354,000 | 0.05 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 400 V | 400 V | 1A | 175°C (Max) | 1.1 V @ 1 A | ||
|
DSK14Schottky Diode SOD-123FL 40V 1A |
2,121,000 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | SOD-123FL | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 550 mV @ 1 A |
|
PMEG45U10EPDAZDIODE SCHOTTKY 45V 10A CFP15 |
1,132 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1170pF @ 1V, 1MHz | 16 ns | 20 mA @ 10 V | 45 V | 10A | -55°C ~ 150°C | 490 mV @ 10 A | |
|
PU1BMH M3G25NS, 1A, 100V, ULTRA FAST RECOV |
4,760 | 0.54 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 4V, 1MHz | 36 ns | 1 µA @ 100 V | 100 V | 1A (DC) | -55°C ~ 175°C | 1.05 V @ 1 A | |
|
SS25DIODE SCHOTTKY 50V 2A DO214AA |
4,000 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 50 V | 50 V | 2A | -65°C ~ 125°C | 700 mV @ 2 A | |
|
RG2006JNRECTIFIER DIODE |
15,359 | 0.25 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
PMEG1020EV,115NEXPERIA PMEG1020EV - RECTIFIER |
264,000 | 0.05 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 45pF @ 5V, 1MHz | - | 3 mA @ 10 V | 10 V | 2A (DC) | 150°C (Max) | 460 mV @ 2 A | |
|
BAS40SchottkyD, 40V, 0.2A |
60,000 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA | -55°C ~ 150°C | 1 V @ 40 mA | |
|
TSUP10M60SH S1G10A, 60V, SCHOTTKY RECTIFIER |
2,928 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 658pF @ 4V, 1MHz | - | 250 µA @ 60 V | 60 V | 10A (DC) | -55°C ~ 175°C | 640 mV @ 10 A |
|
SK510SCHOTTKY SMB 100V 5A |
60,000 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 5A | -50°C ~ 150°C | 830 mV @ 5 A | |
|
TSD2GH R5G2A 400V ESD CAPABILITY RECTIFIER |
2,400 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 1 µA @ 400 V | 400 V | 2A | -55°C ~ 175°C | - |
|
SB850SCHOTTKY DIODE, D5.4X7.5, 50V, 8 |
1,250 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 50 V | 50 V | 8A | -50°C ~ 150°C | 680 mV @ 8 A | |
|
NSVBAS16WT3GNSVBAS16 - 100 V SWITCHING DIODE |
180,000 | 0.05 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 6 ns | 1 µA @ 100 V | 100 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA |
|
BAS40-07E6327BAS40 - HIGH SPEED SWITCHING, CL |
770,249 | 0.07 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|

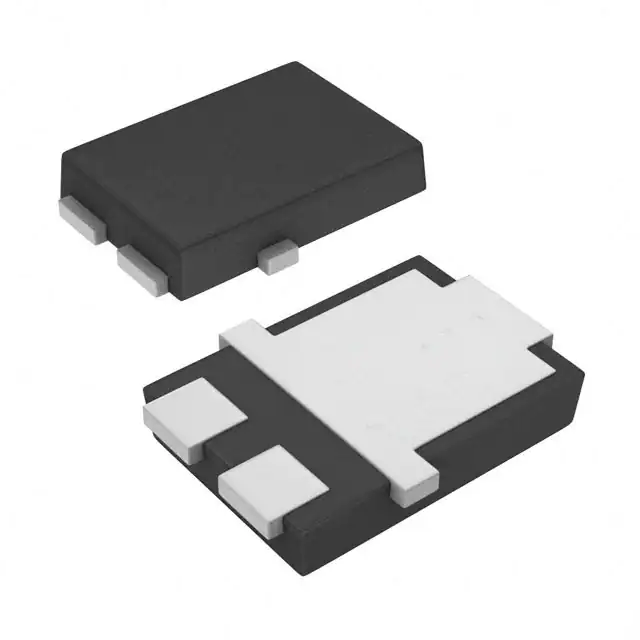

VS-6EVL06HM3/IDIODE GEN PURPOSE 600V SLIMDPAK |
3,748 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 600 V | 600 V | 6A | -55°C ~ 175°C | 1.35 V @ 6 A |
|
SK315SCHOTTKY SMC 150V 3A |
3,000 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 8 µA @ 150 V | 150 V | 3A | -50°C ~ 150°C | 870 mV @ 3 A | |
|
B350-13-FDIODE SCHOTTKY 50V 3A SMC |
2,371 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 500 µA @ 50 V | 50 V | 3A | -55°C ~ 125°C | 700 mV @ 3 A | |
|
HS1GL RVGDIODE GEN PURP 400V 1A SUB SMA |
17,824 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
|
BAS70-07V,115NEXPERIA BAS70-07V - RECTIFIER D |
148,000 | 0.05 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|

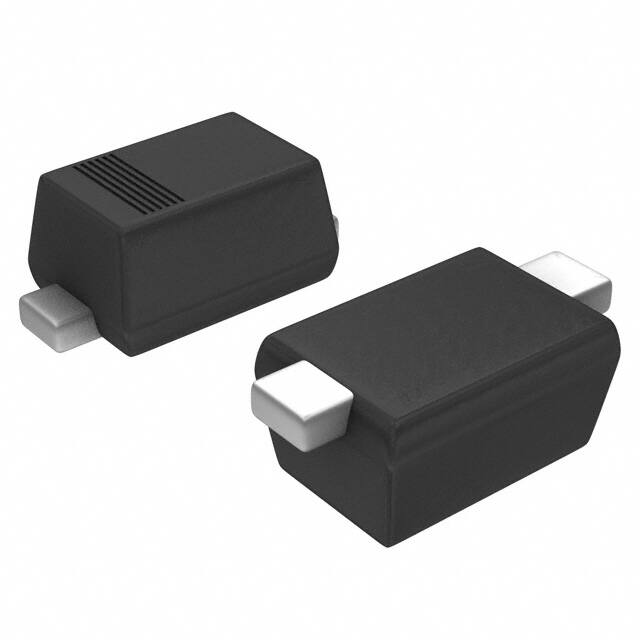

PMEG2010AEB,115PMEG2010AEB - 20 V, 1 A LOW VF M |
448,745 | 0.07 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 25pF @ 1V, 1MHz | - | 1.5 mA @ 20 V | 20 V | 1A (DC) | 150°C (Max) | 620 mV @ 1 A |
