| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N6625USDIODE GEN PURP 1.1KV 1A D5A |
2,011 | 13.65 |
RFQ |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 10V, 1MHz | 60 ns | 1 µA @ 1100 V | 1100 V | 1A | -65°C ~ 150°C | 1.75 V @ 1 A | |
|
1N6538/TRRECTIFIER UFR,FRR |
2,092 | 13.07 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
HSM150GE3/TR13DIODE SCHOTTKY 50V 1A DO215AA |
2,423 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 50 V | 50 V | 1A | -55°C ~ 175°C | 690 mV @ 1 A | |
|
|
1N4534DIODE GEN PURP 50V 150MA DO34 |
3,842 | 2.03 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 4 ns | 50 nA @ 50 V | 50 V | 150mA | -65°C ~ 175°C | 880 mV @ 20 mA | |
|
|
JAN1N6626UDIODE GEN PURP 200V 1.75A E-MELF |
3,030 | 13.65 |
RFQ |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 2 µA @ 200 V | 200 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A | |
|
|
HSM160GE3/TR13DIODE SCHOTTKY 60V 1A DO215AA |
2,119 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 175°C | 690 mV @ 1 A | |
|
CDLL914/TRSIGNAL/COMPUTER DIODE |
2,670 | 2.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 20 ns | 500 nA @ 75 V | 75 V | 200mA | -65°C ~ 175°C | 1.2 V @ 50 mA | |
|
|
JAN1N6627UDIODE GEN PURP 400V 1.75A E-MELF |
3,796 | 13.65 |
RFQ |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 2 µA @ 400 V | 400 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A | |
|
JANTXV1N3595US/TRSIGNAL/COMPUTER DIODE |
2,113 | 13.13 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 3 µs | - | 125 V | 4A | -65°C ~ 150°C | 1 V @ 200 mA | ||
|
|
HSM170GE3/TR13DIODE SCHOTTKY 1A 70V SMBG |
3,178 | 0.93 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
JANTX1N6620/TRRECTIFIER UFR,FRR |
2,227 | 11.48 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 220 V | 220 V | 2A | -65°C ~ 150°C | 1.4 V @ 1.2 A | |
|
|
1N6539DIODE RECT ULT FAST REC A-PKG |
3,716 | 13.67 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N6548DIODE RECT ULT FAST REC A-PKG |
3,141 | 13.14 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
HSM180GE3/TR13DIODE SCHOTTKY 80V 1A DO215AA |
2,555 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 80 V | 80 V | 1A | -55°C ~ 175°C | 840 mV @ 1 A | |
|
UPS315/TR13DIODE SCHOTTKY 15V 3A POWERMITE |
3,354 | 2.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 2 mA @ 15 V | 15 V | 3A | -55°C ~ 125°C | 320 mV @ 3 A | |
|
JANTXV1N5615/TRRECTIFIER UFR,FRR |
3,104 | 11.53 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 45pF @ 12V, 1MHz | 150 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|

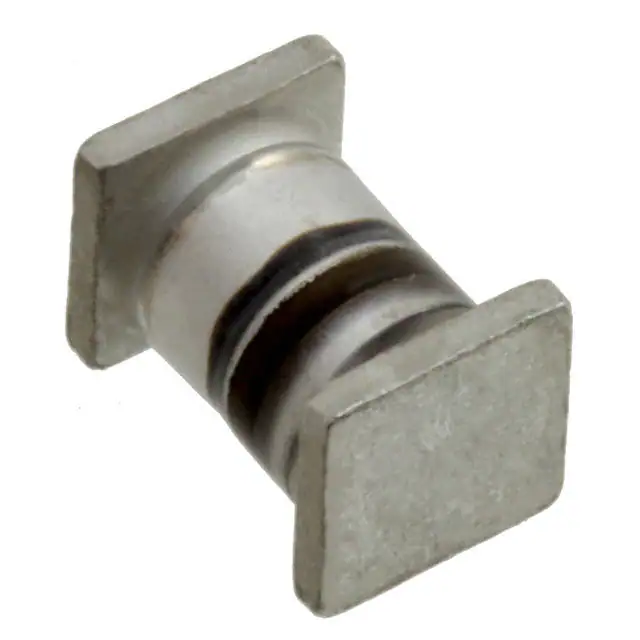

JANTXV1N5552USDIODE GEN PURP 600V 3A B-MELF |
3,987 | 13.67 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 1 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A |
|

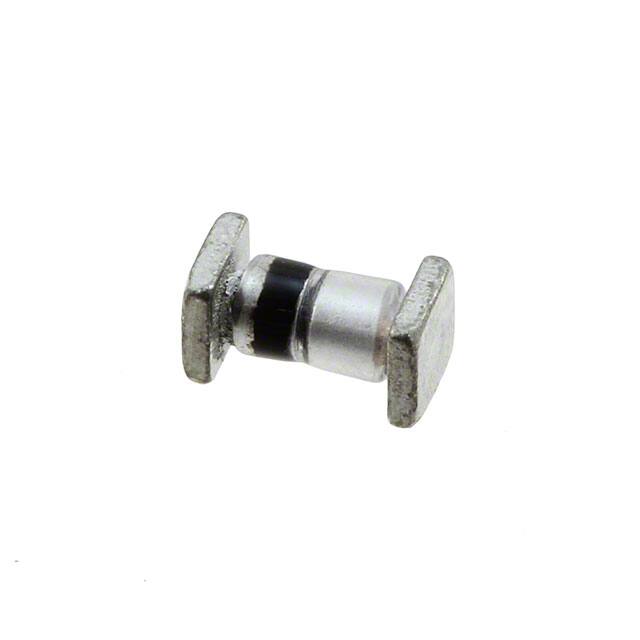

1N6625USDIODE GEN PURP 1.1KV 1A A-MELF |
3,555 | 13.14 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 10V, 1MHz | 60 ns | 1 µA @ 1100 V | 1100 V | 1A | -65°C ~ 150°C | 1.75 V @ 1 A | |
|
|
HSM190GE3/TR13DIODE SCHOTTKY 90V 1A DO215AA |
3,814 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 90 V | 90 V | 1A | -55°C ~ 175°C | 840 mV @ 1 A | |
|
|
UFS505GE3/TR13DIODE ULT FAST 5A 50V SMCG |
2,403 | 2.07 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - |
