| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N6643USDIODE GEN PURP 125V 300MA D5D |
3,030 | 7.10 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 6 ns | 50 nA @ 20 V | 125 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA |
|
1N6627US/TRRECTIFIER UFR,FRR |
2,309 | 12.48 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 440 V | 440 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A | ||
|
JANTX1N6643UDIODE GEN PURP 50V 300MA B-MELF |
3,451 | 7.10 |
RFQ |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 20 ns | 500 nA @ 50 V | 50 V | 300mA (DC) | -65°C ~ 175°C | 1.2 V @ 100 mA | |
|
|
JANTX1N5615USZENER DIODE |
3,479 | 8.33 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | - | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | ||
|
|
1N6858-1SCHOTTKY RECTIFIER |
3,128 | 7.10 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
JAN1N5419US/TRRECTIFIER UFR,FRR |
2,339 | 8.33 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 250 ns | 1 µA @ 500 V | 500 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
JANTX1N3595USDIODE GEN PURP 200MA B-MELF |
2,291 | 12.50 |
RFQ |
Bulk | Military, MIL-S-19500-241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 3 µs | 1 nA @ 125 V | - | 200mA (DC) | -65°C ~ 150°C | 1 V @ 200 mA | |
|
1N6620/TRRECTIFIER UFR,FRR |
2,670 | 7.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 220 V | 220 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A | |
|
|
JAN1N5418US/TRRECTIFIER UFR,FRR |
2,423 | 8.33 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 1 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
1N6620E3RECTIFIER UFR,FRR |
3,762 | 7.10 |
RFQ |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 500 nA @ 200 V | 200 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A | |
|
JANTXV1N5614DIODE GEN PURP 200V 1A AXIAL |
3,534 | 8.40 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
|
CD5820DIODE SMALL-SIGNAL SCHOTTKY |
3,179 | 7.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 20 V | 20 V | 3A | -65°C ~ 125°C | 550 mV @ 3 A | |
|
JANTX1N5811US/TRRECTIFIER UFR,FRR |
2,882 | 8.40 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 150 V | 150 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | |
|
|
JAN1N5415USDIODE GEN PURP 50V 3A AXIAL |
2,130 | 8.42 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 50 V | 50 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
1N6537DIODE RECT ULT FAST REC A-PKG |
2,055 | 12.57 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
JANTXV1N6620DIODE GEN PURP 220V 1.2A AXIAL |
2,902 | 12.60 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 500 nA @ 220 V | 220 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A |
|
JANTXV1N3595-1/TRSIGNAL/COMPUTER DIODE |
3,323 | 7.11 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 3 µs | 1 nA @ 125 V | 125 V | 150mA (DC) | -65°C ~ 175°C | 1 V @ 200 mA | |
|
|
JANTXV1N6640USSWITCHING DIODE |
2,122 | 13.38 |
RFQ |
Bulk | Military, MIL-PRF-19500/609 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 4 ns | 90 µA @ 50 V | 50 V | 300mA | -65°C ~ 175°C | 1 V @ 200 mA | |
|

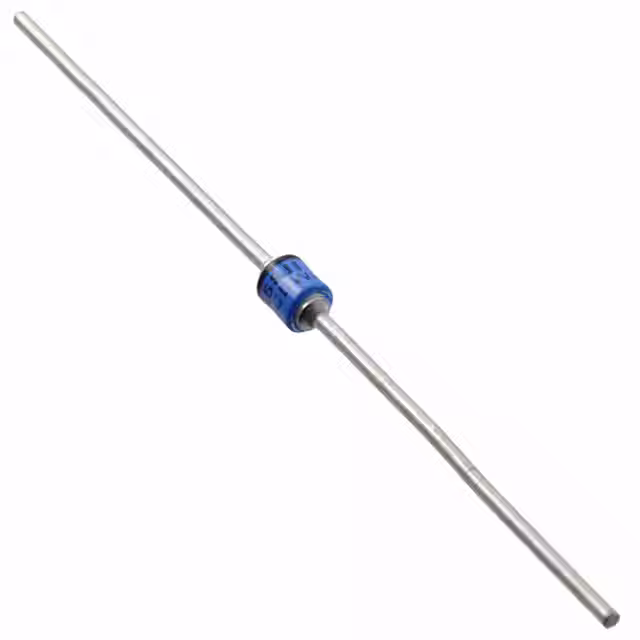

JANTX1N5811DIODE GEN PURP 150V 3A AXIAL |
3,949 | 7.13 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 5 µA @ 150 V | 150 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A |
|
|
JANTXV1N4946/TRRECTIFIER UFR,FRR |
3,269 | 13.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/359 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 12V, 1MHz | 250 ns | 1 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
