| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT10SCD65KDIODE SILICON 650V 17A TO220 |
2,866 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 300pF @ 1V, 1MHz | 0 ns | 200 µA @ 650 V | 650 V | 17A | -55°C ~ 150°C | 1.8 V @ 10 A | |
|
|
APT20SCD65KDIODE SILICON 650V 32A TO220 |
2,233 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 680pF @ 100mV, 1MHz | 0 ns | 400 µA @ 650 V | 650 V | 32A | -55°C ~ 150°C | 1.8 V @ 20 A | |
|

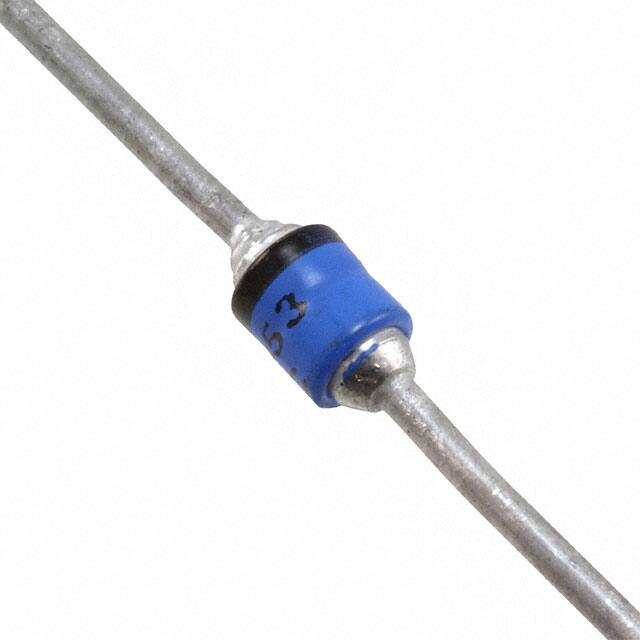

1N5419E3DIODE GEN PURP 500V 3A AXIAL |
3,170 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 1 µA @ 500 V | 500 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
1N6625E3DIODE GEN PURP 1.1KV 1A AXIAL |
3,238 | 0.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | - | 80 ns | 1 µA @ 1000 V | 1100 V | 1A | -65°C ~ 150°C | 1.95 V @ 1.5 A | ||
|

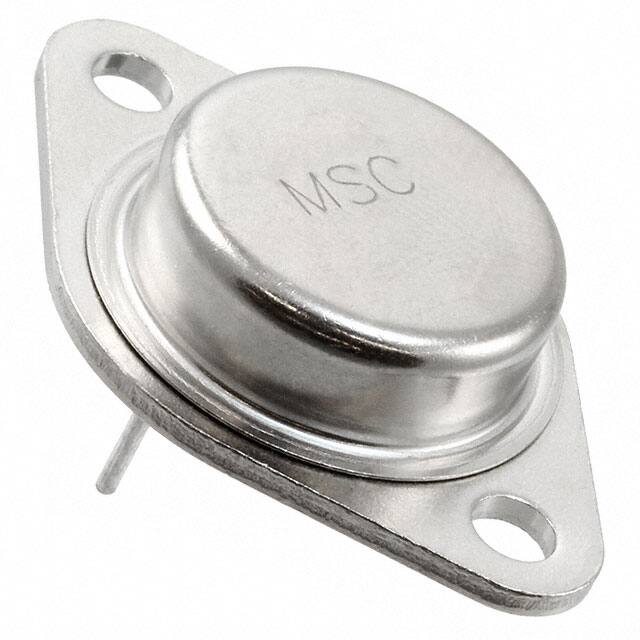

UES2602DIODE GEN PURP 100V 30A TO204AA |
3,394 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | - | 35 ns | 20 µA @ 100 V | 100 V | 30A | -55°C ~ 175°C | 930 mV @ 15 A | |
|

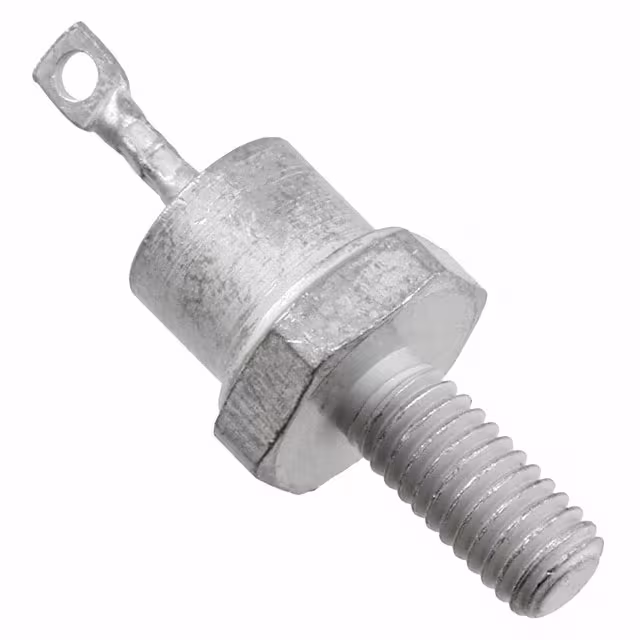

UES706HR2DIODE GEN PURP 400V 20A DO4 |
3,805 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Chassis, Stud Mount | - | 50 ns | 50 µA @ 400 V | 400 V | 20A (DC) | -55°C ~ 150°C | 1.25 V @ 20 A | |
|

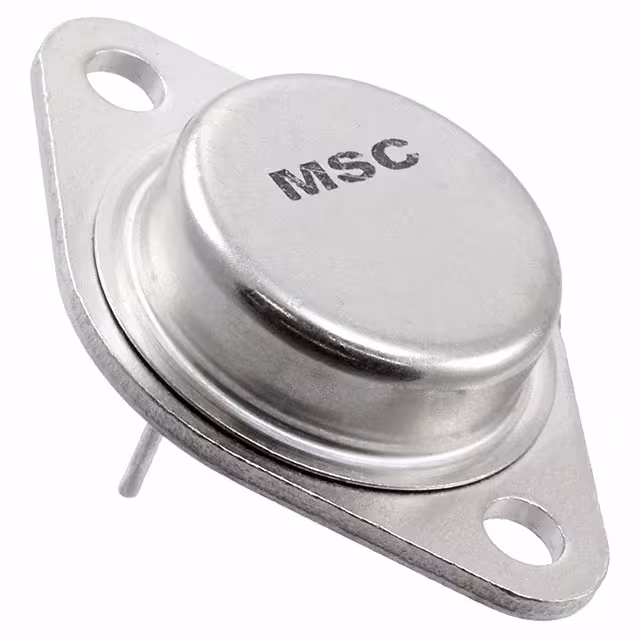

UFT3140CDIODE GEN PURP 400V 30A TO204AA |
2,770 | 0.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Chassis Mount | - | 50 ns | 15 mA @ 400 V | 400 V | 30A (DC) | -65°C ~ 175°C | 1.1 V @ 15 A | ||
|
JAN1N457DIODE GEN PURP 70V 150MA DO35 |
3,367 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/193 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 70 V | 70 V | 150mA | -65°C ~ 150°C | 1 V @ 100 mA |
|
|
JAN1N458DIODE GEN PURP 70V 150MA DO35 |
3,044 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/193 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 70 V | 70 V | 150mA | -65°C ~ 150°C | 1 V @ 100 mA |
|

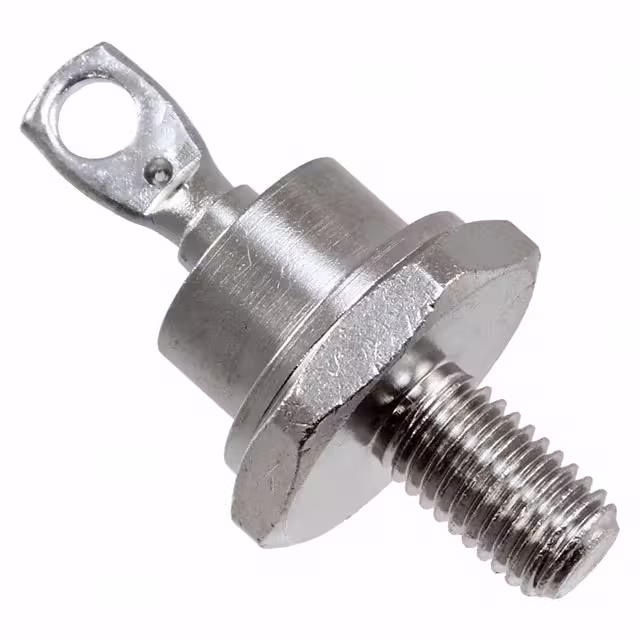

JANTX1N1184DIODE GEN PURP 100V 35A DO5 |
2,432 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/297 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 100 V | 35A | -65°C ~ 175°C | 1.4 V @ 110 A |
|

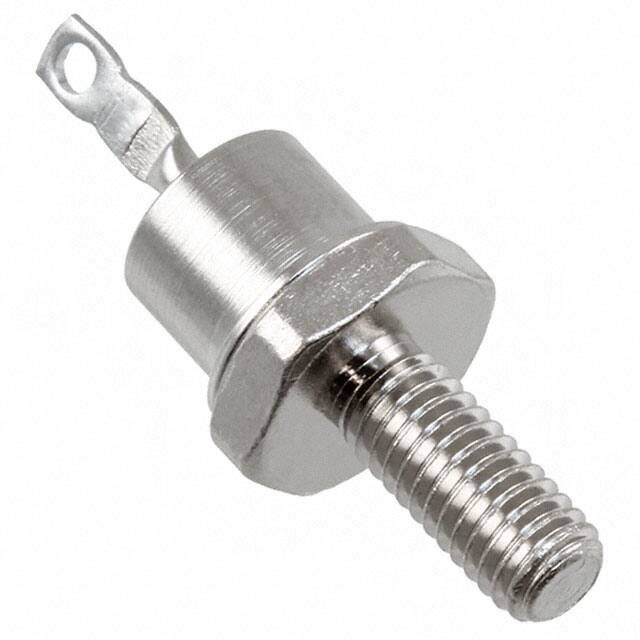

JANTX1N1614DIODE GEN PURP 200V 15A DO203AA |
3,257 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/162 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Stud Mount | - | - | 50 µA @ 200 V | 200 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A |
|

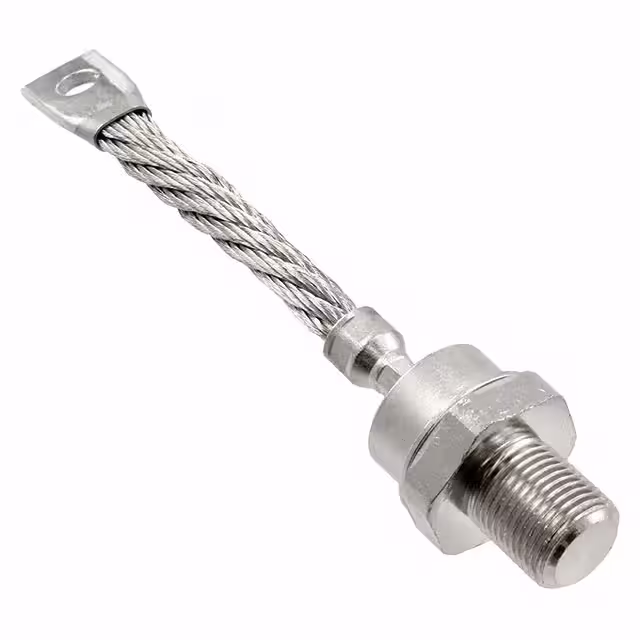

JANTX1N3164DIODE GEN PURP 200V 300A DO205AB |
3,281 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/211 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 mA @ 200 V | 200 V | 300A | -65°C ~ 200°C | 1.55 V @ 940 A |
|

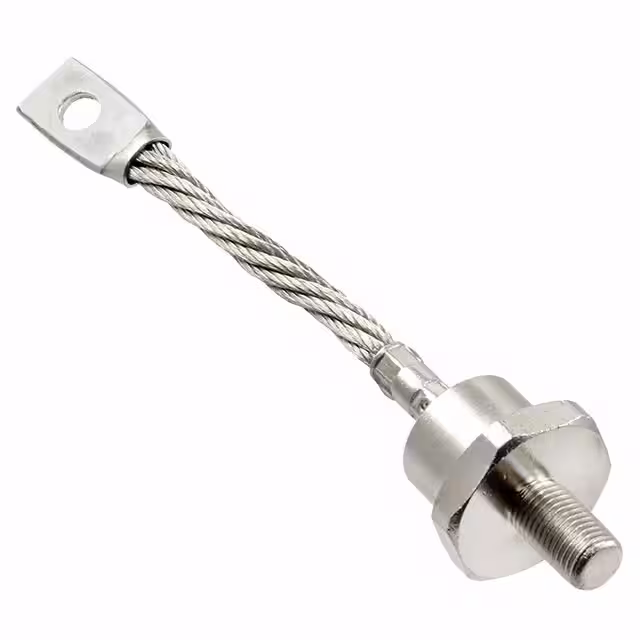

JANTX1N3289DIODE GEN PURP 200V 100A DO205AA |
3,502 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/246 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Stud Mount | - | - | 10 mA @ 200 V | 200 V | 100A | -65°C ~ 200°C | 1.55 V @ 310 A |
|
|
JANTX1N485BDIODE GEN PURP 180V 200MA DO35 |
2,311 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/118 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 180 V | 180 V | 200mA (DC) | -65°C ~ 175°C | 1 V @ 100 mA |
|
|
JANTX1N486BDIODE GEN PURP 225V 200MA DO35 |
2,757 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/118 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 25 nA @ 225 V | 225 V | 200mA (DC) | -65°C ~ 175°C | 1 V @ 100 mA |
|

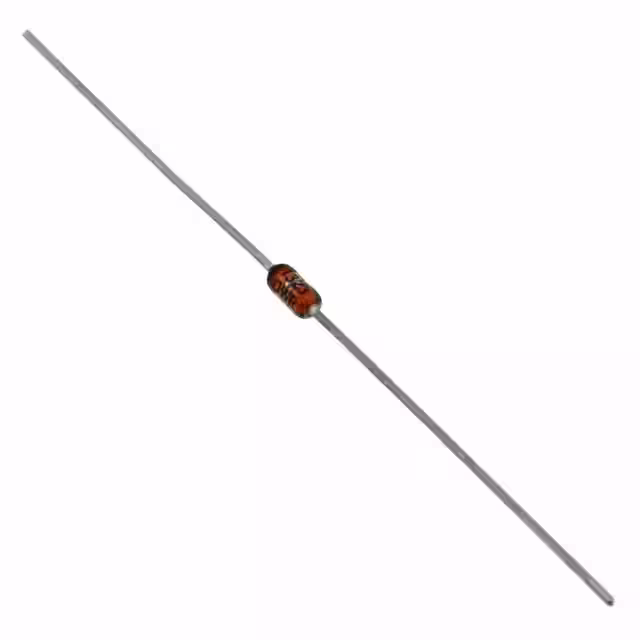

JANTX1N5194DIODE GEN PURP 70V 50MA DO35 |
2,937 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/118 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 70 V | 70 V | 50mA (DC) | -65°C ~ 175°C | 1 V @ 100 mA |
|
JANTX1N5290-1DIODE REG 500MW DO-7 |
3,376 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/463 | RoHS | - | - | Discontinued at Digi-Key | Through Hole | - | - | - | - | - | - | - |
|
JANTX1N5291UR-1DIODE REG 500MW DO-213AB |
2,474 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/463 | RoHS | - | - | Discontinued at Digi-Key | Surface Mount | - | - | - | - | - | - | - |
|
|
JANTX1N5302-1DIODE REG 500MW DO-7 |
3,436 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/463 | RoHS | - | - | Active | Through Hole | - | - | - | - | - | - | - |
|
|
JANTX1N5311-1DIODE REG 500MW DO-7 |
3,259 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/463 | RoHS | - | - | Active | Through Hole | - | - | - | - | - | - | - |
