| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD41E3DIODE POWER SCHOTTKY |
2,296 | 55.70 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Stud Mount | - | - | 1.5 mA @ 35 V | 35 V | 30A | -55°C ~ 175°C | 680 mV @ 30 A | ||
|
JANS1N3595US/TRSIGNAL/COMPUTER DIODE |
3,519 | 58.94 |
RFQ |
Tape & Reel (TR) | Military, MIL-S-19500-241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 3 µs | 1 nA @ 125 V | - | 200mA (DC) | -65°C ~ 150°C | 1 V @ 200 mA | |
|

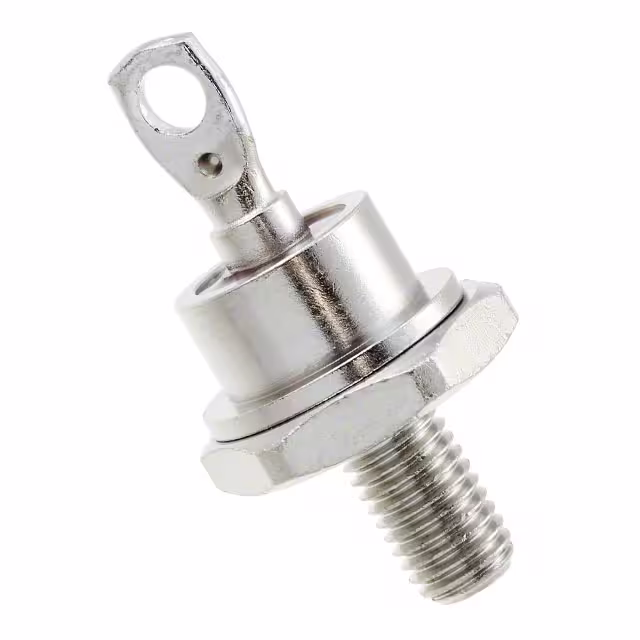

JANTX1N1190DIODE GEN PURP 600V 35A DO5 |
2,794 | 59.12 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/297 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 600 V | 600 V | 35A | -65°C ~ 175°C | 1.4 V @ 110 A |
|

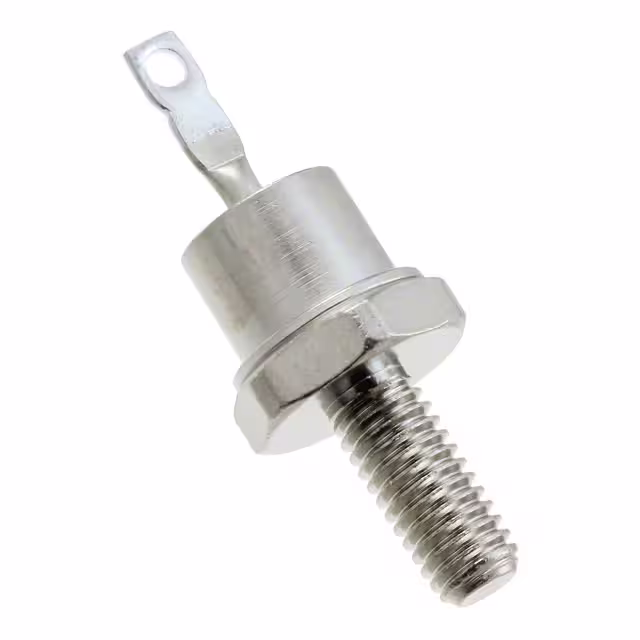

UFR3020DIODE GEN PURP 200V 30A DO4 |
2,224 | 59.21 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | 140pF @ 10V, 1MHz | 35 ns | 15 µA @ 200 V | 200 V | 30A | -65°C ~ 175°C | 975 mV @ 30 A | ||
|
UES1001/TRRECTIFIER UFR,FRR |
2,436 | 16.34 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 25 ns | - | 50 V | 1A | -55°C ~ 175°C | 975 mV @ 1 A | ||
|
|
JANS1N6642UDIODE SWITCHING D-5D |
2,468 | 17.10 |
RFQ |
Tray | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 500 nA @ 75 V | 75 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA | |
|
|
1N5283/TRCURRENT REGULATOR |
3,624 | 16.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
JANS1N6642USSIGNAL/COMPUTER DIODE |
3,311 | 17.10 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 500 nA @ 75 V | 75 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA | ||
|
|
1N2287RSTD RECTIFIER |
3,305 | 50.97 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 1000 V | 1000 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||
|
|
JANS1N5617RECTIFIER DIODE |
2,593 | 56.06 |
RFQ |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | - | 400 V | 1A | -65°C ~ 200°C | 1.6 V @ 3 A | |
|
|
UES1102E3/TRRECTIFIER UFR,FRR |
3,048 | 16.34 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 25 ns | 2 µA @ 100 V | 100 V | 2.5A | 175°C | 975 mV @ 2 A | ||
|
|
1N2287STD RECTIFIER |
3,543 | 50.97 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 1000 V | 1000 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||
|
|
JANTX1N6627/TRRECTIFIER UFR,FRR |
2,652 | 16.35 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 440 V | 440 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A | |
|

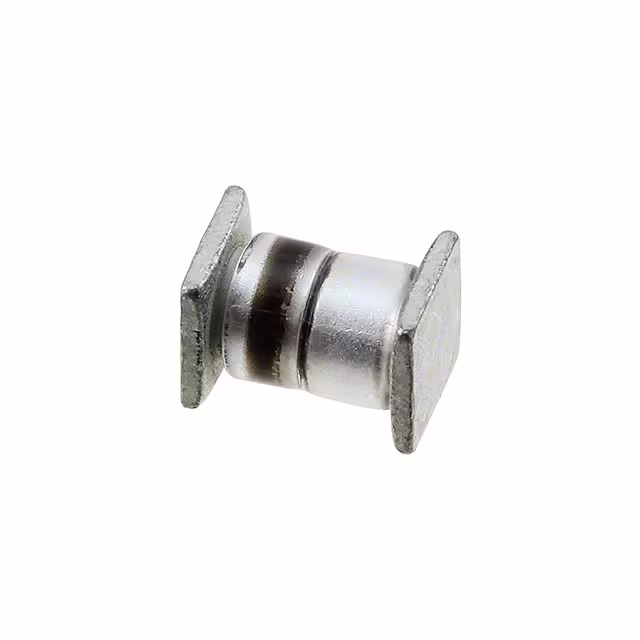

1N6628USDIODE GEN PURP 660V 1.75A A-MELF |
2,767 | 16.37 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 660 V | 660 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A | |
|
JANTX1N6075DIODE GEN PURP 150V 850MA AXIAL |
2,969 | 17.12 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/503 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 1 µA @ 150 V | 150 V | 850mA | -65°C ~ 155°C | 2.04 V @ 9.4 A |
|
JANTX1N5552USDIODE GEN PURP 600V 5A B-MELF |
3,243 | 17.12 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 1 µA @ 600 V | 600 V | 5A | -65°C ~ 175°C | 1.2 V @ 9 A |
|
|
JANTX1N6624DIODE GEN PURP 990V 1A AXIAL |
3,406 | 16.38 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 10V, 1MHz | 50 ns | 500 nA @ 990 V | 990 V | 1A | -65°C ~ 150°C | 1.55 V @ 1 A |
|
1N6631USDIODE GEN PURP 1.1KV 1.4A A-MELF |
3,841 | 16.43 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 10V, 1MHz | 60 ns | 4 µA @ 1100 V | 1100 V | 1.4A | -65°C ~ 150°C | 1.4 V @ 1.4 A | |
|
|
1N3766RSTANDARD RECTIFIER |
2,976 | 59.66 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
JANTXV1N6621DIODE GEN PURP 440V 1.2A AXIAL |
3,147 | 17.25 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 500 nA @ 440 V | 440 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A |
