| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMS120SchottkyD, 20V, 1A |
15,000 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|
SGL34-50SchottkyD, 50V, 0.5A |
17,500 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 50 V | 50 V | 500mA | -50°C ~ 150°C | 600 mV @ 500 mA | |
|
S2TST Rect, 1300V, 2A |
72,000 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1300 V | 1300 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A | |
|
MUR440LSF Rect, 400V, 4A, 60ns |
11,900 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 10 µA @ 400 V | 400 V | 4A | -50°C ~ 150°C | 1.35 V @ 4 A | |
|
SUF4005-CTCUT-TAPE VERSION. ULTRAFAST RECO |
160,000 | 0.20 |
RFQ |
Datasheet |
Strip | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 175°C | 1 A @ 1.7 V | |
|
|
SUF4006-CTCUT-TAPE VERSION. ULTRAFAST RECO |
4,964 | 0.20 |
RFQ |
Datasheet |
Strip | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 175°C | 1 A @ 1.7 V | |
|
|
SUF4001-CTCUT-TAPE VERSION. ULTRAFAST RECO |
4,484 | 0.20 |
RFQ |
Datasheet |
Strip | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 175°C | 1 A @ 1 V | |
|

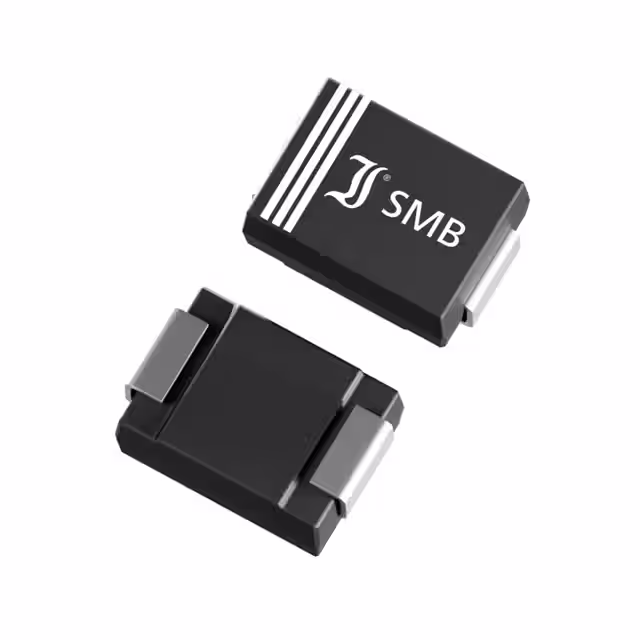

FR2JFast Rect., 600V, 2.00A, 250ns |
18,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 250 ns | - | 600 V | 2A | - | - | |
|
BY398Fast Rect, 400V, 3.00A, 500ns |
8,500 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 500 ns | - | 400 V | 3A | - | - | |
|
P600BST Rect, 100V, 6A |
35,000 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 100 V | 100 V | 6A | -50°C ~ 175°C | 1.1 V @ 6 A | |
|
2CL71AUF Rect, 8000V, 0.005A, 80ns |
6,000 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 80 ns | 2 µA @ 8000 V | 8000 V | 5mA | -40°C ~ 120°C | 36 V @ 10 mA | |
|
|
SMS220SchottkyD, 20V, 2A |
40,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 2A | -50°C ~ 150°C | 500 mV @ 2 A | |
|
SK320SMBSchottky, 200V, 3A, 0.90V, 80A |
18,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 200 V | 200 V | 3A | -50°C ~ 150°C | 900 mV @ 3 A | |
|
ES1JSF Rect, 600V, 1.00A, 35ns |
450,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
|
SGL1-50SchottkyD, 50V, 1A |
12,500 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 670 mV @ 1 A | |
|
BY133-CTCUT-TAPE VERSION. STANDARD RECO |
4,945 | 0.29 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1300 V | 1300 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
SUF4002-CTCUT-TAPE VERSION. ULTRAFAST REC |
4,900 | 0.29 |
RFQ |
Datasheet |
Strip | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 175°C | 1 V @ 1 A | |
|
|
RGP30MFast Rect, 1000V, 3.00A |
42,500 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 500 ns | - | 1000 V | 3A | - | - | |
|
SK210SchottkyD, 100V, 2A |
276,000 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 2A | -50°C ~ 150°C | 850 mV @ 2 A | |
|
|
SK28SchottkyD, 80V, 2A |
204,000 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 80 V | 80 V | 2A | -50°C ~ 150°C | 850 mV @ 2 A |
