| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

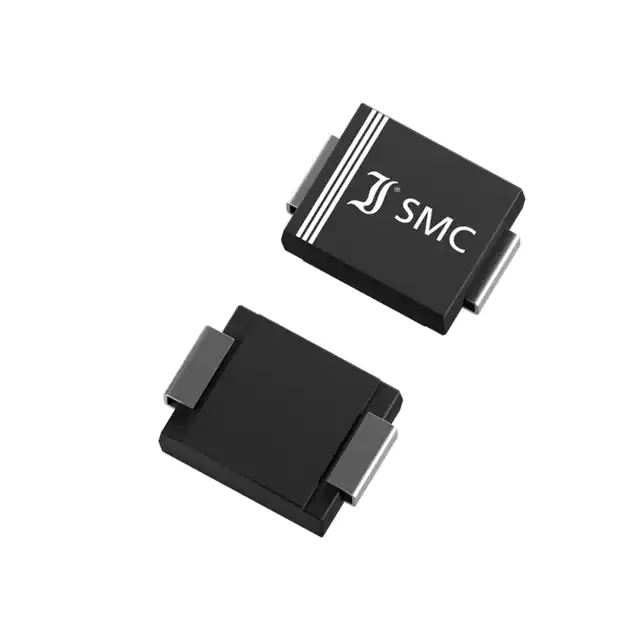

SK315SCHOTTKY SMC 150V 3A |
3,000 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 8 µA @ 150 V | 150 V | 3A | -50°C ~ 150°C | 870 mV @ 3 A | |
|
SK3H15SMBSCHOTTKY SMB 150V 3A |
3,000 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 2 µA @ 150 V | 150 V | 3A | -50°C ~ 175°C | 820 mV @ 3 A | |
|

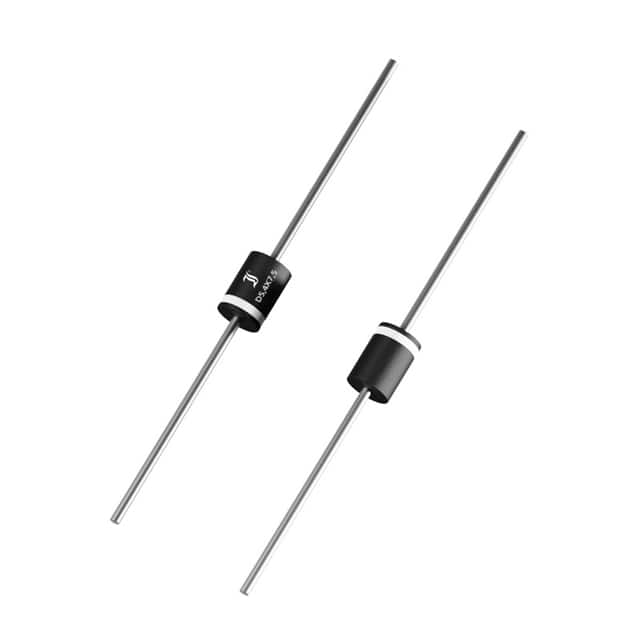

BY880-200DIODE STD D5.4X7.5 200V 8A |
1,250 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 200 V | 200 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
SB860SCHOTTKY DIODE, D5.4X7.5, 60V, 8 |
28,750 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 8A | -50°C ~ 150°C | 680 mV @ 8 A | |
|
PPS1045-3GSCHOTTKY TO-277B 45V 10A |
5,000 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 45 V | 45 V | 10A | -50°C ~ 150°C | 490 mV @ 10 A | |
|
|
PPS5150SCHOTTKY TO-277B 150V 5A |
5,000 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 15 µA @ 150 V | 150 V | 5A | -50°C ~ 150°C | 850 mV @ 5 A | |
|
US3ADIODE UFR SMC 50V 3A |
12,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 50 V | 50 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
PPS560SCHOTTKY TO-277B 60V 5A |
3,000 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 60 V | 60 V | 5A | -50°C ~ 150°C | 680 mV @ 5 A | |
|
ES2J-AQDIODE SFR SMB 600V 2A |
3,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 600 V | 600 V | 2A | -50°C ~ 150°C | 1.7 V @ 2 A | |
|
|
SB830SCHOTTKY D5.4X7.5 30V 8A |
1,250 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 30 V | 30 V | 8A | -50°C ~ 150°C | 550 mV @ 8 A | |
|
|
US3BDIODE UFR SMC 100V 3A |
3,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
|
SB820SCHOTTKY D5.4X7.5 20V 8A |
1,250 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 20 V | 20 V | 8A | -50°C ~ 150°C | 550 mV @ 8 A | |
|
|
ER3MDIODE SFR SMC 1000V 3A |
6,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 3A | -50°C ~ 150°C | 1.7 V @ 3 A | |
|
|
BY880-400DIODE STD D5.4X7.5 400V 8A |
1,250 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 400 V | 400 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
|
ER3KDIODE SFR SMC 800V 3A |
3,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 3A | -50°C ~ 150°C | 1.7 V @ 3 A | |
|
SK84-AQSCHOTTKY SMC 40V 8A |
3,000 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 8A | -50°C ~ 150°C | 550 mV @ 8 A | |
|
|
ER3BDIODE SFR SMC 100V 3A |
3,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 100 V | 100 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
|
SB890SCHOTTKY D5.4X7.5 90V 8A |
1,250 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 90 V | 90 V | 8A | -50°C ~ 150°C | 830 mV @ 8 A | |
|
SA263DIODE FR MELF 1600V 2A |
5,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 500 ns | 5 µA @ 1600 V | 1600 V | 2A | -50°C ~ 175°C | 1.8 V @ 2 A | |
|
SMS560-3GSCHOTTKY MELF 60V 5A |
5,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 80 µA @ 60 V | 60 V | 5A | -50°C ~ 150°C | 550 mV @ 5 A |
