| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMS260SCHOTTKY MELF 60V 2A |
5,000 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 2A | -50°C ~ 150°C | 700 mV @ 2 A | |
|
SK310SMBSCHOTTKY SMB 100V 3A |
54,000 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 3A | -50°C ~ 150°C | 850 mV @ 3 A | |
|
SMS330SCHOTTKY MELF 30V 3A |
5,000 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 30 V | 30 V | 3A | -50°C ~ 150°C | 500 mV @ 3 A | |
|
SBX3040-3GSCHOTTKY D8X7.5_LOWRTH 40V 30A |
4,450 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 30A | -50°C ~ 150°C | 550 mV @ 30 A | |
|
F1200DDIODE FR D8X7.5 200V 12A |
3,500 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 5 µA @ 200 V | 200 V | 12A | -50°C ~ 150°C | 910 mV @ 12 A | |
|
|
FX2000ADIODE FR D8X7.5_LOWRTH 50V 20A |
4,000 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 5 µA @ 50 V | 50 V | 20A | -50°C ~ 150°C | 940 mV @ 20 A | |
|
|
P2000GDIODE STD D8X7.5 400V 20A |
2,000 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 400 V | 400 V | 20A | -50°C ~ 150°C | 1.1 V @ 20 A | |
|
SK2545YD2-3GSCHOTTKY D2PAK 45V 25A |
5,000 | 0.60 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 25A | -50°C ~ 150°C | 560 mV @ 25 A | |
|
|
FX20K120DIODE FR D8X7.5_LOWRTH 120V 20A |
3,500 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 5 µA @ 120 V | 120 V | 20A | -50°C ~ 175°C | 940 mV @ 20 A | |
|
UGB8BTDIODE SFR D2PAK 100V 8A |
5,000 | 0.60 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 100 V | 100 V | 8A | -50°C ~ 150°C | 1 V @ 8 A | |
|
|
UGB8ATDIODE SFR D2PAK 50V 8A |
5,000 | 0.60 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 50 V | 50 V | 8A | -50°C ~ 150°C | 1 V @ 8 A | |
|
DD300HV DIODE D2.5X6.5 3000V 0.02A |
5,000 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 150 ns | 5 µA @ 3000 V | 3000 V | 20mA | -50°C ~ 150°C | 40 V @ 10 mA | |
|
|
UGB8DTDIODE SFR D2PAK 200V 8A |
5,000 | 0.60 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 200 V | 200 V | 8A | -50°C ~ 150°C | 1 V @ 8 A | |
|
FE6DDIODE SFR D8X7.5 200V 6A |
1,500 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 200 V | 200 V | 6A | -50°C ~ 175°C | 980 mV @ 5 A | |
|
SBT1045-3GSCHOTTKY TO-220AC 45V 10A |
4,000 | 0.61 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 120 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 500 mV @ 10 A | |
|
HV5HV DIODE DO-15 5000V 0.2A |
3,000 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 400 ns | 3 µA @ 5000 V | 5000 V | 200mA | -50°C ~ 150°C | 6 V @ 200 mA | |
|
|

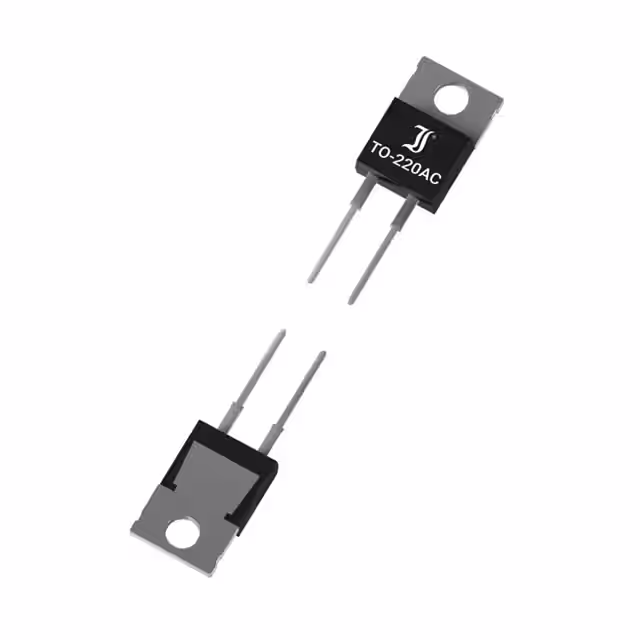

SBT1040-3GSCHOTTKY TO-220AC 40V 10A |
1,100 | 0.61 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 120 µA @ 40 V | 40 V | 10A | -55°C ~ 150°C | 500 mV @ 10 A | |
|
RA256DIODE STD BUTTON 600V 25A |
10,000 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 25A | -50°C ~ 175°C | 1.1 V @ 80 A | |
|
|
SK4045CD2SCHOTTKY D2PAK 45V 40A |
5,000 | 0.74 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 45 V | 45 V | 20A | -50°C ~ 150°C | 580 mV @ 25 A | |
|
|
S2WDIODE STD SMB 1600V 2A |
3,000 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1600 V | 1600 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A |
