| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-30APF04PBFDIODE SCHOTTKY 400V 30A TO247AC |
3,183 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 400 V | 400 V | 30A | -55°C ~ 175°C | 1.41 V @ 30 A | ||
|
|
VS-30APF06PBFDIODE GEN PURP 600V 30A TO247AC |
2,134 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 60 ns | 100 µA @ 600 V | 600 V | 30A | -40°C ~ 150°C | 1.41 V @ 30 A | ||
|
|
VS-30APF10PBFDIODE GEN PURP 1KV 30A TO247AC |
3,206 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 95 ns | 100 µA @ 1000 V | 1000 V | 30A | -40°C ~ 150°C | 1.41 V @ 30 A | ||
|
|
VS-30APF12PBFDIODE GEN PURP 1.2KV 30A TO247AC |
3,716 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 95 ns | 100 µA @ 1200 V | 1200 V | 30A | -40°C ~ 150°C | 1.41 V @ 30 A | ||
|

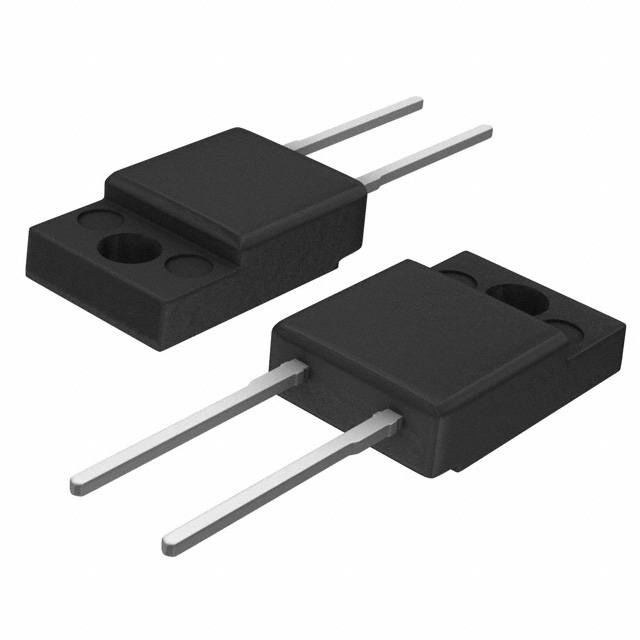

VS-30ETH06FP-F3DIODE GEN PURP 600V 30A TO220FP |
3,753 | 0.00 |
RFQ |
Datasheet |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 23 ns | 50 µA @ 600 V | 600 V | 30A | -65°C ~ 175°C | 2.6 V @ 30 A |
|
VS-30ETH06-N3DIODE GEN PURP 600V 30A TO220AC |
3,862 | 0.00 |
RFQ |
Datasheet |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 31 ns | 50 µA @ 600 V | 600 V | 30A | -65°C ~ 175°C | 2.6 V @ 30 A |
|
VS-40EPS16PBFDIODE GEN PURP 1.6KV 40A TO247AC |
2,236 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 100 µA @ 1600 V | 1600 V | 40A | -40°C ~ 150°C | 1.14 V @ 40 A | |
|
|
VS-60APF02PBFDIODE GEN PURP 200V 60A TO247AC |
3,270 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 180 ns | 100 µA @ 200 V | 200 V | 60A | -40°C ~ 150°C | 1.3 V @ 60 A | |
|
|
VS-60APF04PBFDIODE GEN PURP 400V 60A TO247AC |
3,996 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 180 ns | 100 µA @ 400 V | 400 V | 60A | -40°C ~ 150°C | 1.3 V @ 60 A | |
|
|
VS-60APF06PBFDIODE GEN PURP 600V 60A TO247AC |
2,499 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 180 ns | 100 µA @ 600 V | 600 V | 60A | -40°C ~ 150°C | 1.3 V @ 60 A | |
|
|
VS-60APF10PBFDIODE GEN PURP 1KV 60A TO247AC |
3,515 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 480 ns | 100 µA @ 1000 V | 1000 V | 60A | -40°C ~ 150°C | 1.4 V @ 60 A | ||
|
|
VS-60APF12PBFDIODE GEN PURP 1.2KV 60A TO247AC |
2,287 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 480 ns | 100 µA @ 1200 V | 1200 V | 60A | -40°C ~ 150°C | 1.4 V @ 60 A | ||
|
CS1J-E3/IDIODE GPP 600V 1.0A DO-214AC |
2,297 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 6pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
CS1M-E3/IDIODE GPP 1000V 1.0A DO-214AC |
2,147 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 6pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
CS3M-E3/IDIODE GPP 1000V 3.0A DO-214AB |
2,111 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 26pF @ 4V, 1MHz | 2.8 µs | 5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1.15 V @ 3 A | |
|
CS2M-E3/IDIODE GPP 2A 1000V DO-214AA SMB |
2,518 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 12pF @ 4V, 1MHz | 2.1 µs | 5 µA @ 1000 V | 1000 V | 1.6A | -55°C ~ 150°C | 1.15 V @ 2 A | |
|
|
CSA2G-E3/IDIODE GPP 2A 400V DO-214AC SMA |
3,161 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 11pF @ 4V, 1MHz | 2.1 µs | 5 µA @ 400 V | 400 V | 1.6A | -55°C ~ 150°C | 1.15 V @ 2 A | |
|
|
CS1K-E3/IDIODE GPP 1A 800V DO-214AC SMA |
3,402 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 6pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
CS2D-E3/IDIODE GPP 2A 200V DO-214AA SMB |
2,185 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 12pF @ 4V, 1MHz | 2.1 µs | 5 µA @ 200 V | 200 V | 1.6A | -55°C ~ 150°C | 1.15 V @ 2 A | |
|
|
CSA2K-E3/IDIODE GPP 2A 800V DO-214AC SMA |
2,889 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 11pF @ 4V, 1MHz | 2.1 µs | 5 µA @ 800 V | 800 V | 1.6A | -55°C ~ 150°C | 1.15 V @ 2 A |
