| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCU20D30DIODE FAST RECOVERY 300V 20A TO- |
2,760 | 2.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 300 V | 20A | 1.3 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 33 ns | 25 µA @ 300 V | -40°C ~ 175°C | Surface Mount |
|
KCQ60A06DIODE SCHOTTKY 60V 60A TO-247 |
190 | 5.10 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 60A | 670 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 25 mA @ 60 V | -40°C ~ 150°C | Through Hole |
|
|
KCQ60A04DIODE SCHOTTKY 40V 60A TO-247 |
991 | 5.10 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 60A | 580 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 25 mA @ 40 V | -40°C ~ 150°C | Through Hole |
|
PD100KN8DIODE MODULE PHASE LEG D+D 0.8KV |
2,443 | 96.19 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 100A | 1.41 V @ 320 A | Standard Recovery >500ns, > 200mA (Io) | - | 7 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|

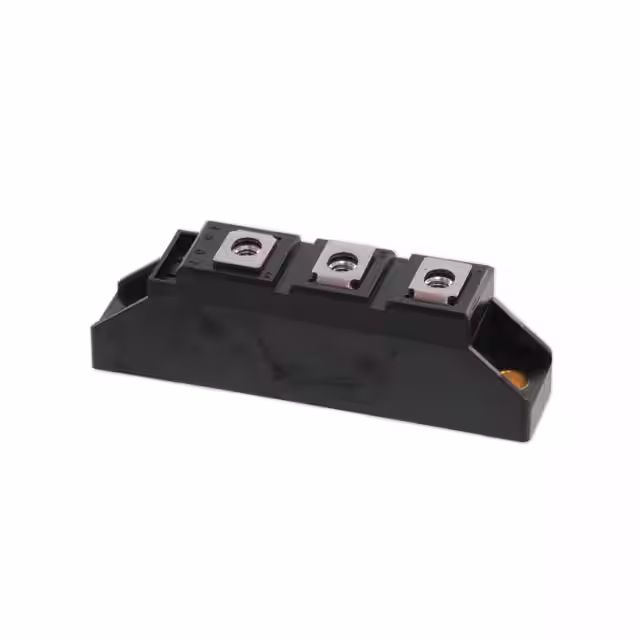

PD100MYN18DIODE MODULE PHASE LEG D+D 1.8KV |
2,332 | 56.50 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 100A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1.8 kV | -40°C ~ 150°C | Chassis Mount |
|

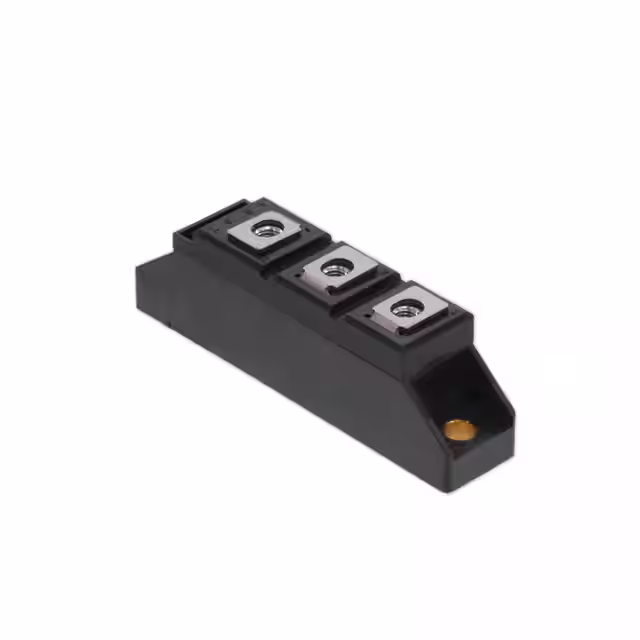

PD100MYN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,549 | 63.56 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1.6 kV | -40°C ~ 150°C | Chassis Mount |
|

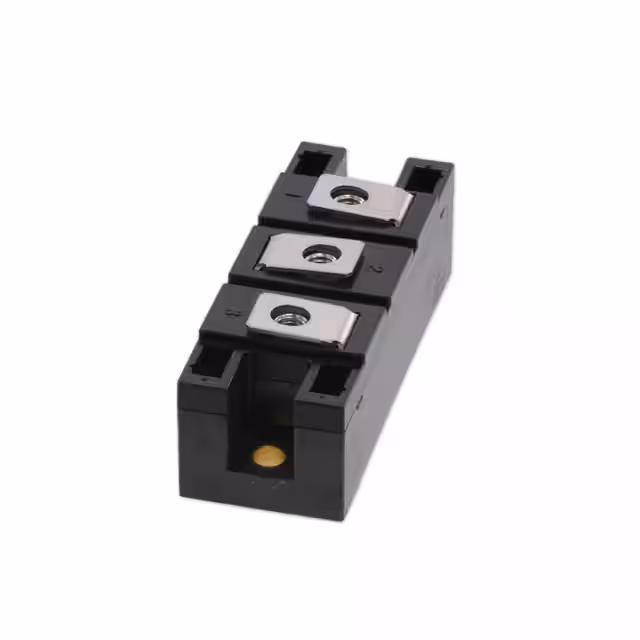

PD200MYN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,292 | 82.92 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 200A | 1.5 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1.6 kV | -40°C ~ 150°C | Chassis Mount |
|
|
UCQS30A045DIODE SCHOTTKY 45V 30A TO-263LP |
2,978 | 2.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 550 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -40°C ~ 150°C | Surface Mount |
|
|
PD100KN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,723 | 103.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | 1.54 V @ 320 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD200KN8DIODE MODULE PHASE LEG D+D 0.8KV |
3,933 | 118.77 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 200A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD200MYN18DIODE MODULE PHASE LEG D+D 1.8KV |
3,492 | 133.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 200A | 1.5 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD200KN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,457 | 134.61 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 200A | 1.53 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD250KN8ADIODE MODULE PHASE LEG D+D 0.8KV |
3,664 | 151.94 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 250A | 1.57 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD250KN16ADIODE MODULE PHASE LEG D+D 1.6KV |
3,841 | 155.19 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 250A | 1.72 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD700MYN18DIODE MODULE PHASE LEG D+D 1.8KV |
2,946 | 334.27 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 700A | 1.3 V @ 2000 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PR250KN8NDIODE MODULE ANODE COMMON D+D 80 |
2,995 | 55.04 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 800 V | 250A | 1.33 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD230S16DIODE MODULE PHASE LEG D+D 1.6KV |
3,033 | 116.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 1600 V | 230A | 1.59 V @ 700 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD260MYN16DIODE MODULE PHASE LEG D+D 1.6KV |
3,743 | 154.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 260A | 1.24 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD260MYN18DIODE MODULE PHASE LEG D+D 1.8KV |
2,646 | 156.20 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 260A | 1.24 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD380MYN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,756 | 190.56 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 380A | 1.26 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
